SPECIFICATIONS

Application: Metering,Metering

Brand Name: GROTHEN,GROTHEN

Certification: CE,CE

Fuel: Electric,electric

High-concerned chemical: None

Hign-concerned Chemical: None

Origin: China Mainland,CHINA

Power (W): Electric,Electric

Pressure: Low Pressure,Low Pressure

Standard or Nonstandard: Standard,Standard

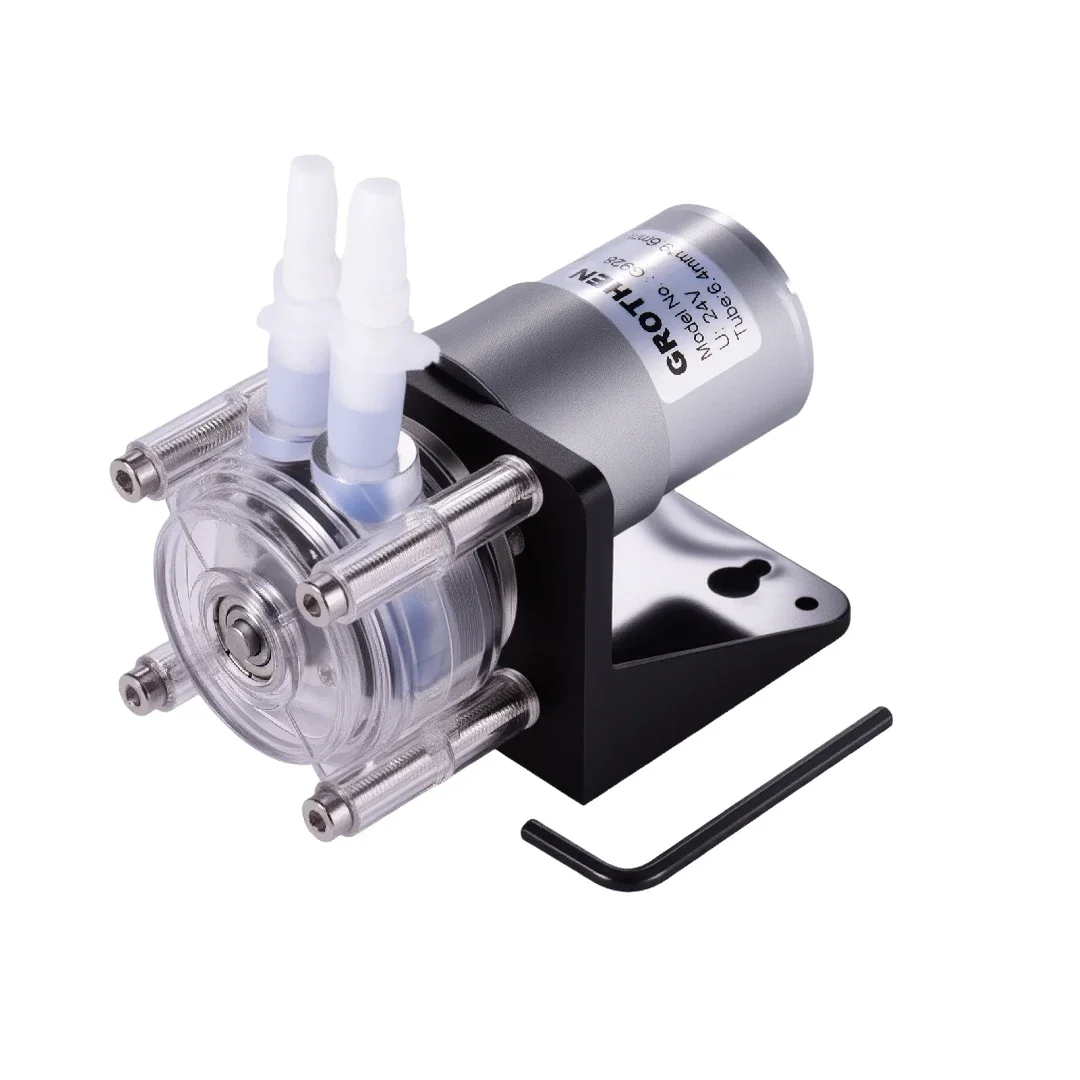

Structure: Peristaltic Pump,peristaltic pump

Theory: peristaltic pump

Usage: Water

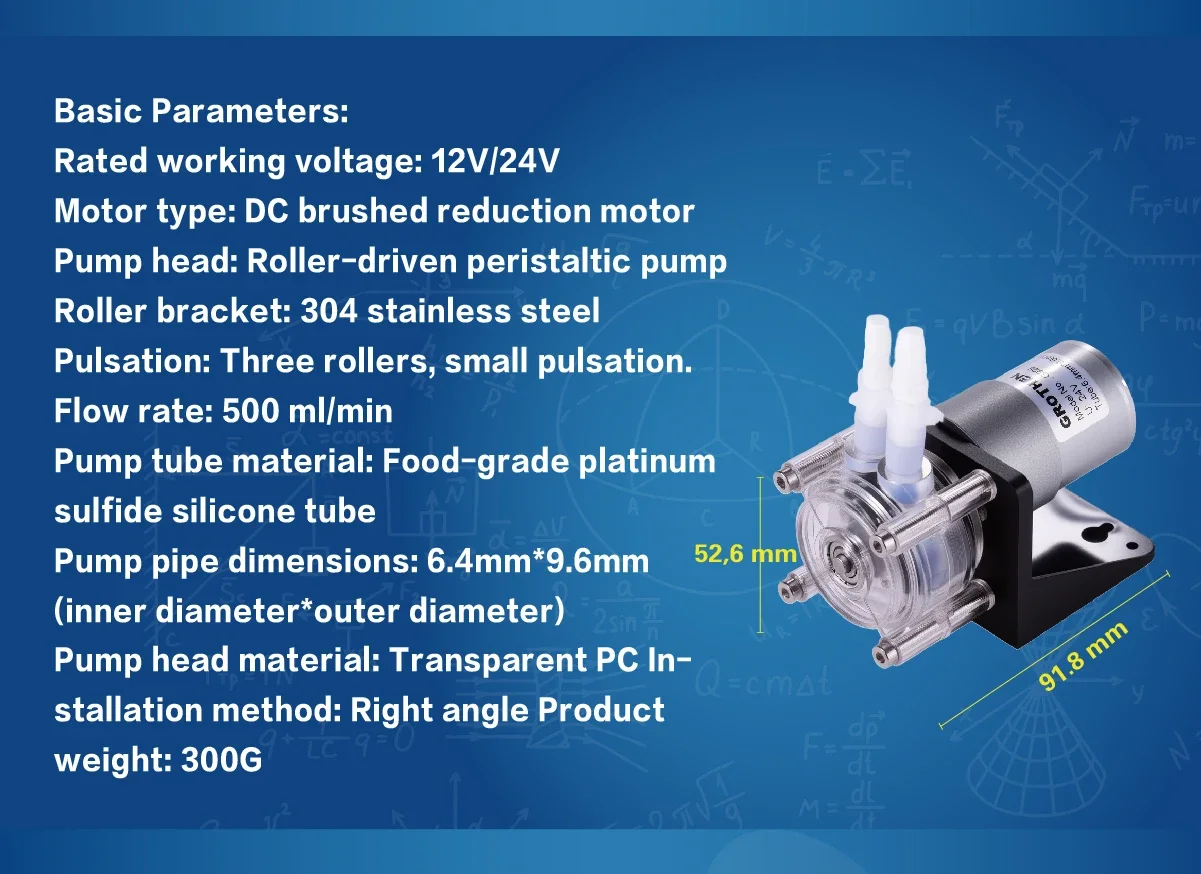

Specification:

Brand new

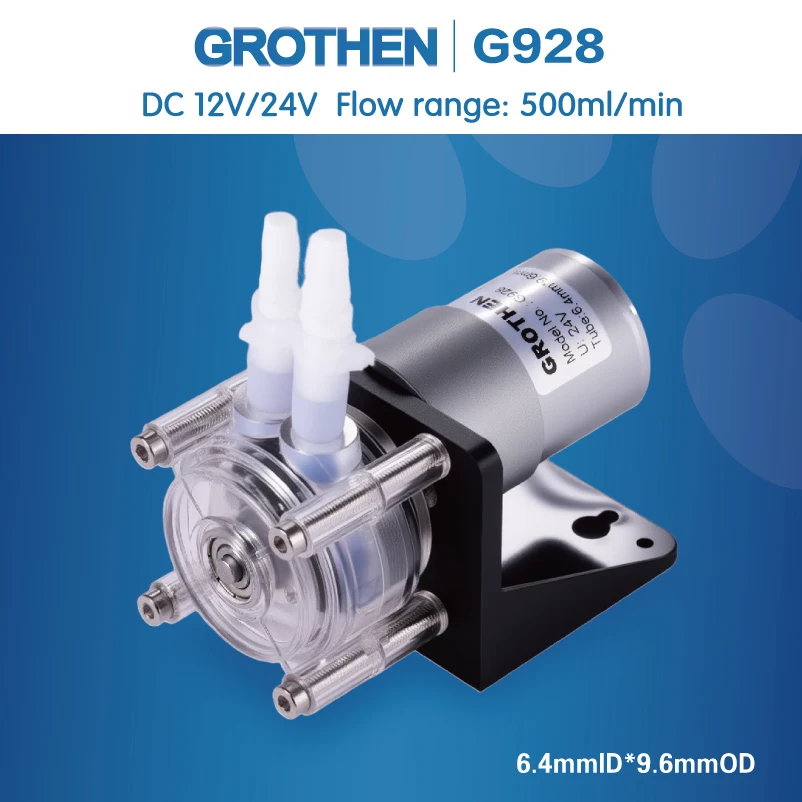

Motor: 12V/24V DC motor
DC motor current: 0.5-1.4A
Working environment: 0-40, relative humidity, 80%
Medium flow: the flow direction of this pump depends on the positive and negative connections
Flow range: 0 - 500ml/min
Tube: inner diameter * outer diameter (6.4mm * 9.6mm)
Wall thickness: 1.6mm
The maximum diameter: 9.6mm

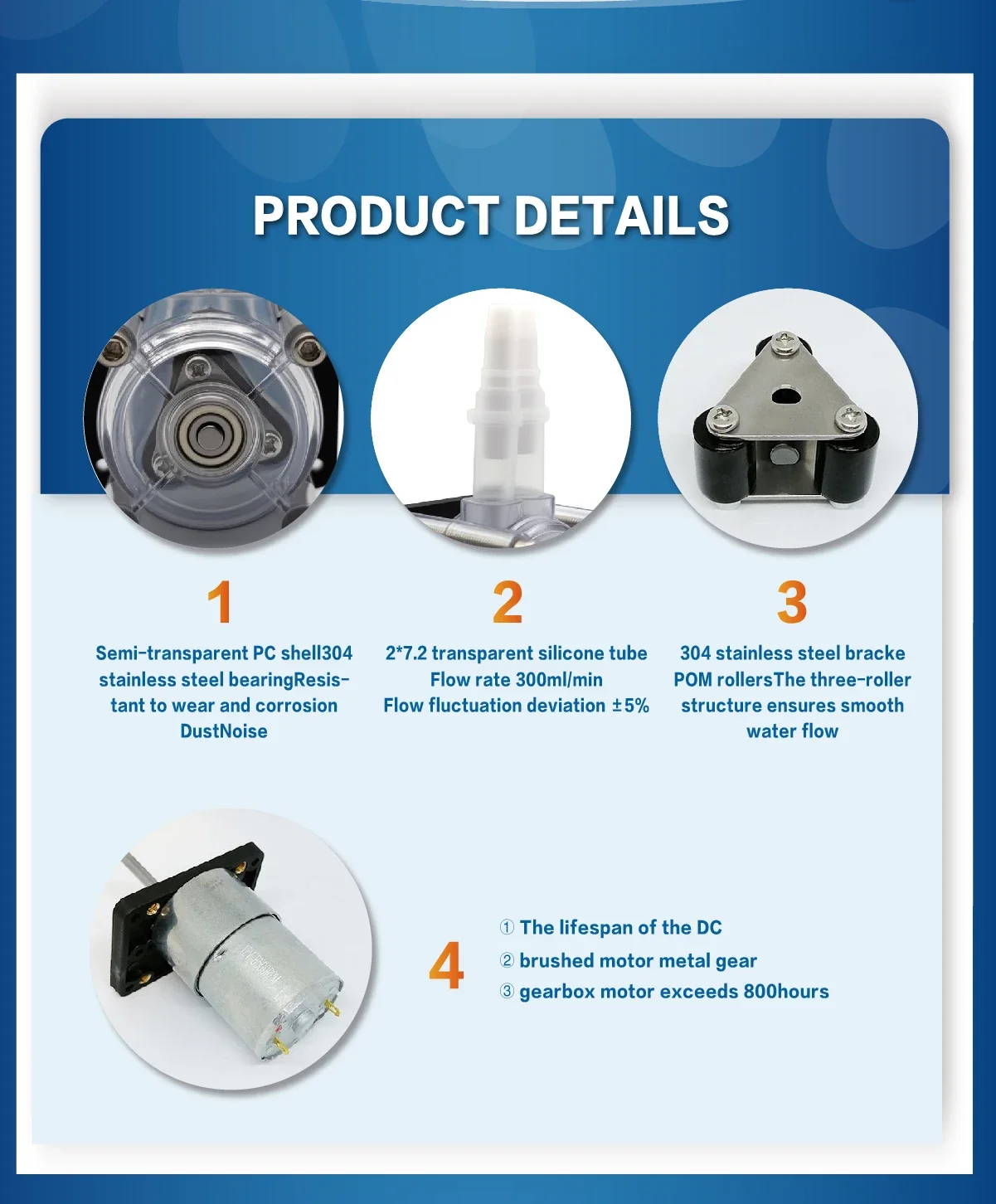

Tube material: transparent silicone tube
Shell material: PC
Rolling wheel: POM
Roller type: ball bearing

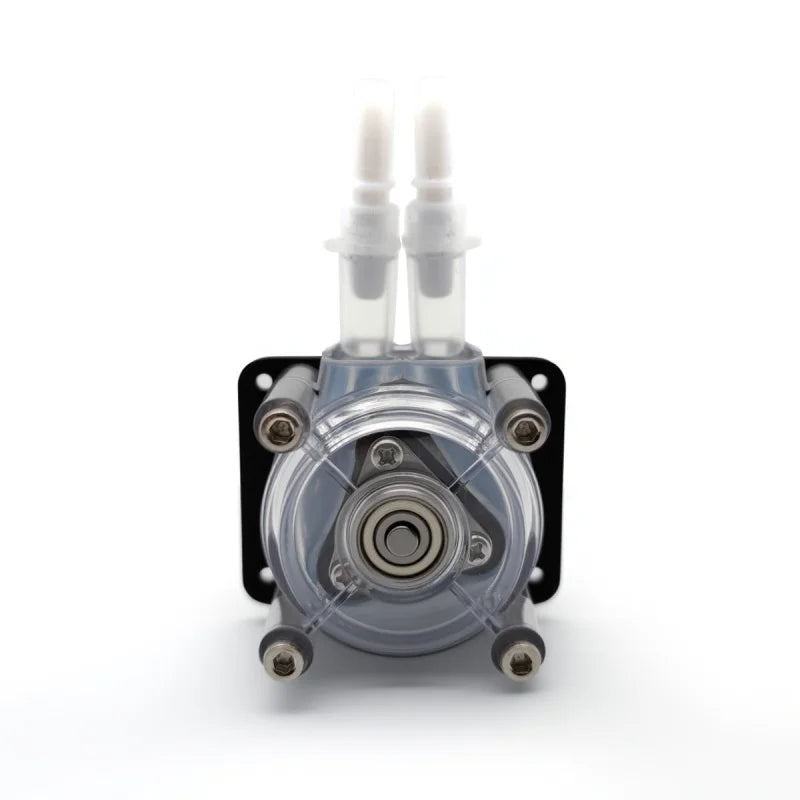

Pump cover: hand twist screws, quick disassemble convenient tube replacement
Can be equipped with constant speed DC deceleration motor, stepper motor (adjustable speed) and synchronous motor, long motor life and low noise stepper motor

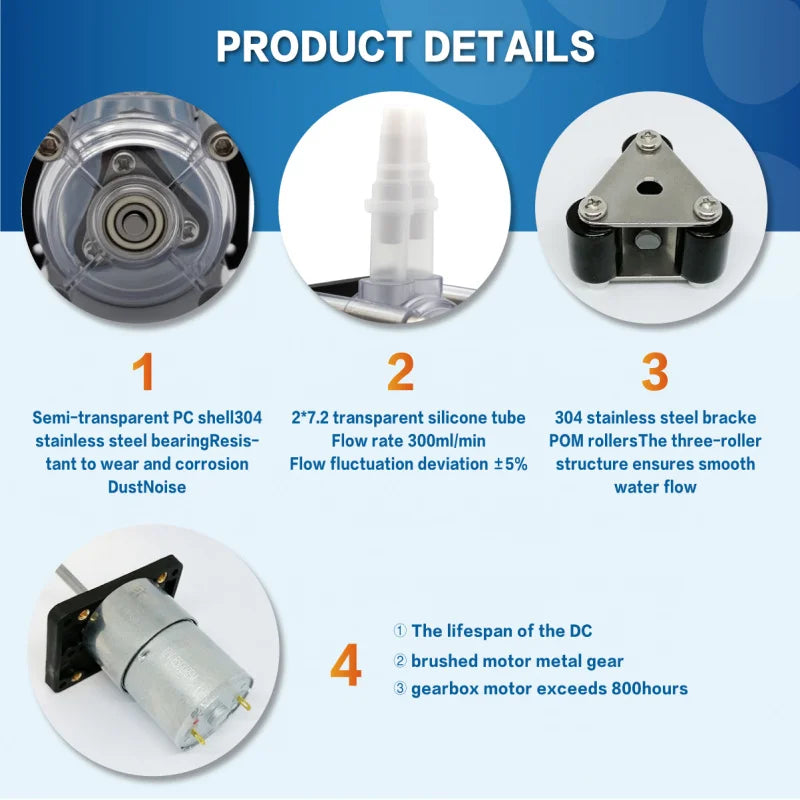

Features:

Correction rollers take adjustment action to facilitate the user to replace the tube avoid clipping and breaking the tube due to lack of experience
Ball bearings in the wheel frame, silent, long life time
Stainless steel screws, rust corrosion resistance
Set the card slot to prevent deviation correction, pump damage

Package included:
