SPECIFICATIONS

Application: Low pressure fluid systems

Brand Name: NONE

Certification: None

Color: Natural PP/PTFE

Connection: Male

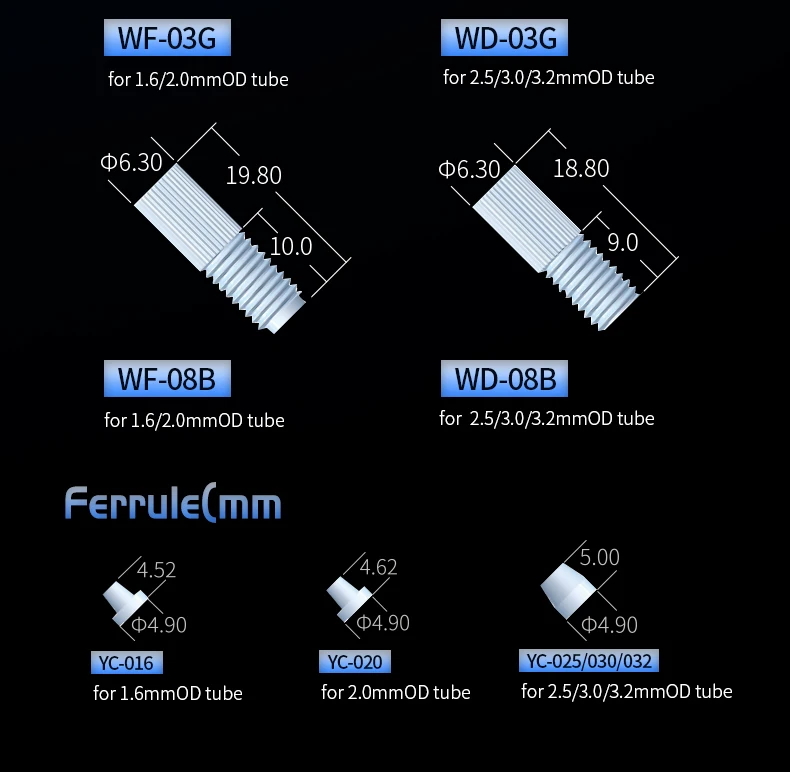

Ferrule Size: 1.6/2.0/2.5/3.0/3.2mm

Head Code: Round

High-concerned chemical: None

Hose Inner Diameter: 3mm

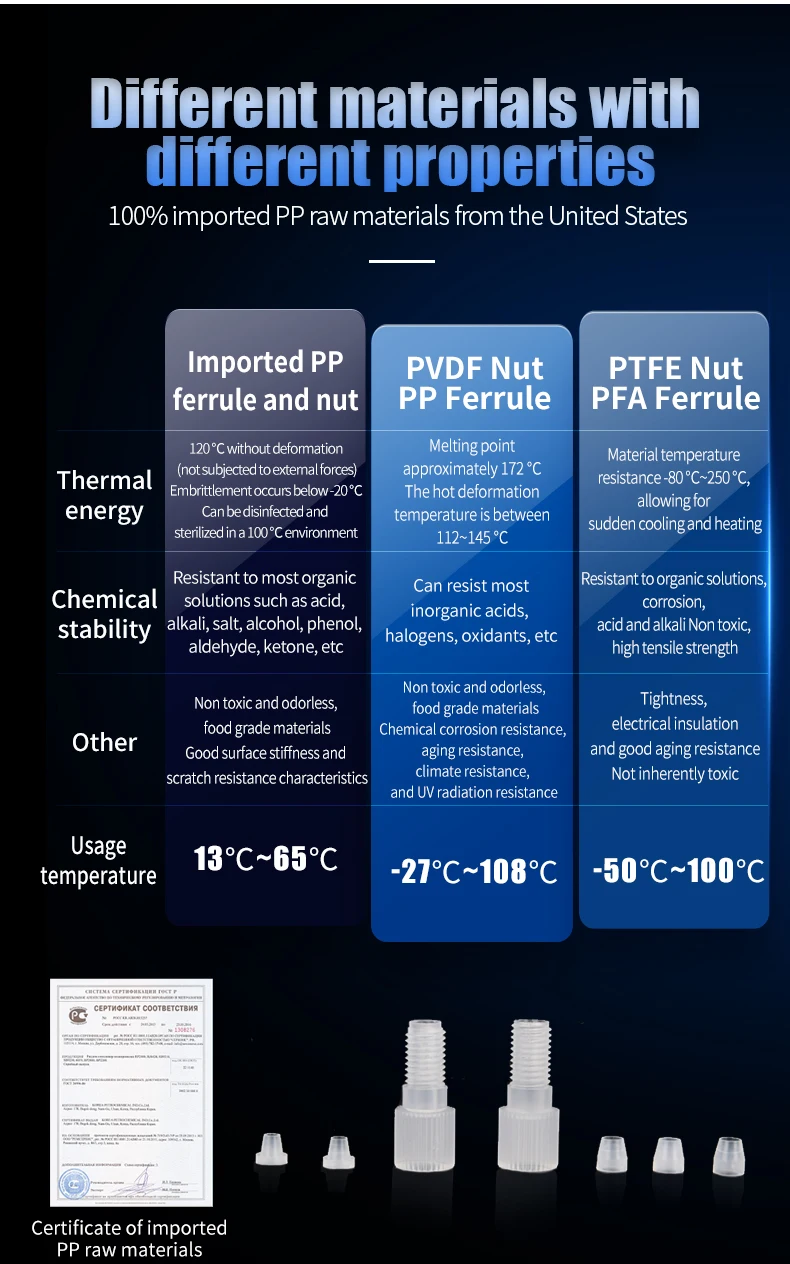

Material: Plastic,PP/PTFE

Model Number: WD/WF

Origin: Mainland China

Pressure: ≥850 kPa

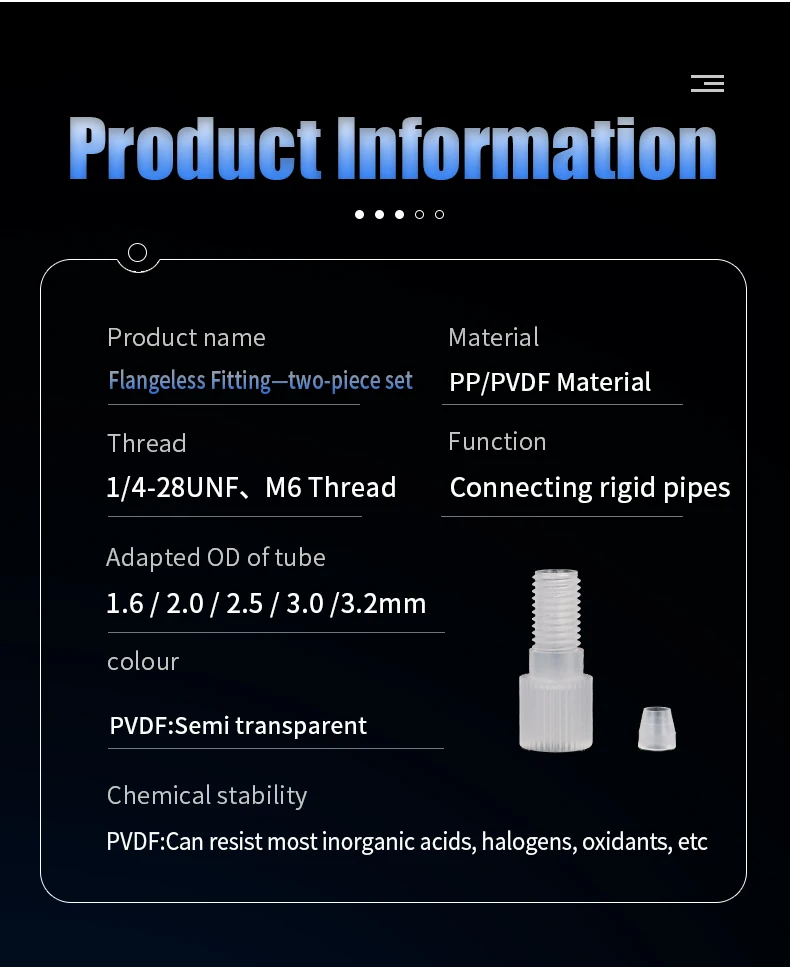

Product Name: Flangeless Fittings

Shape: Straight

Technics: Molding

Thread: 1/4-28, M6

Tubing Size: OD1.6/2.0/2.5/3.0/3.2mm

Tubing Type: FEP, PTFE, PFA, ETFE

Type: Flangeless

Product Feature

Flangeless fittings benefits a lot for low pressure (up to 0.8Mpa) removavle and reusable systems. RUNZE offer a variety of nut designs for wide application requirements both on mounting and functioning.

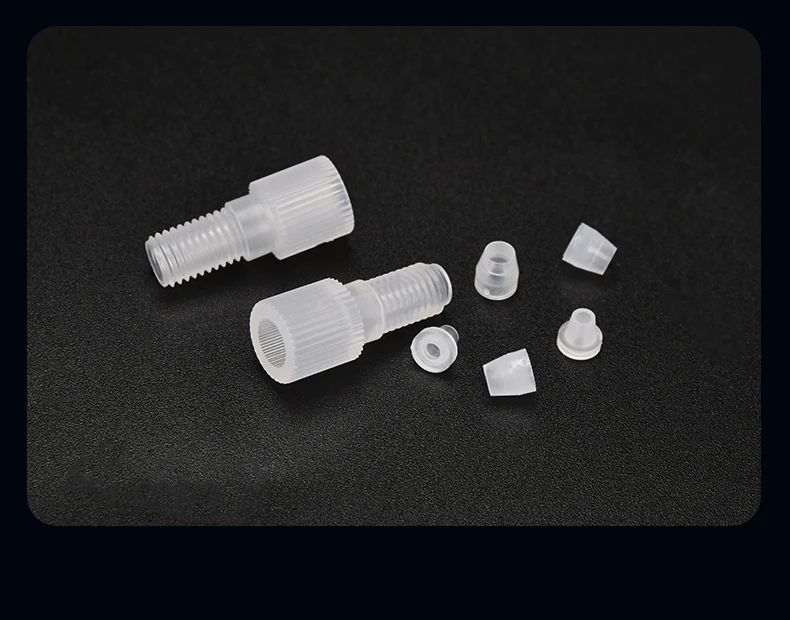

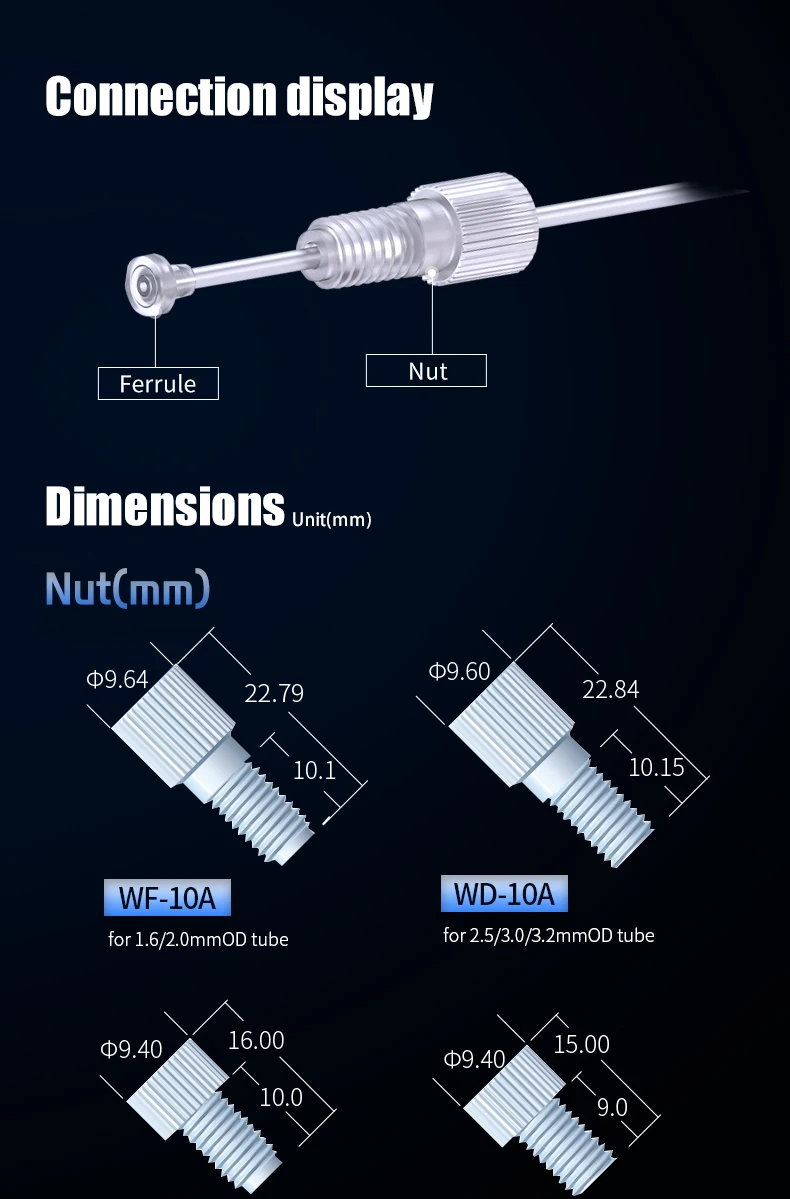

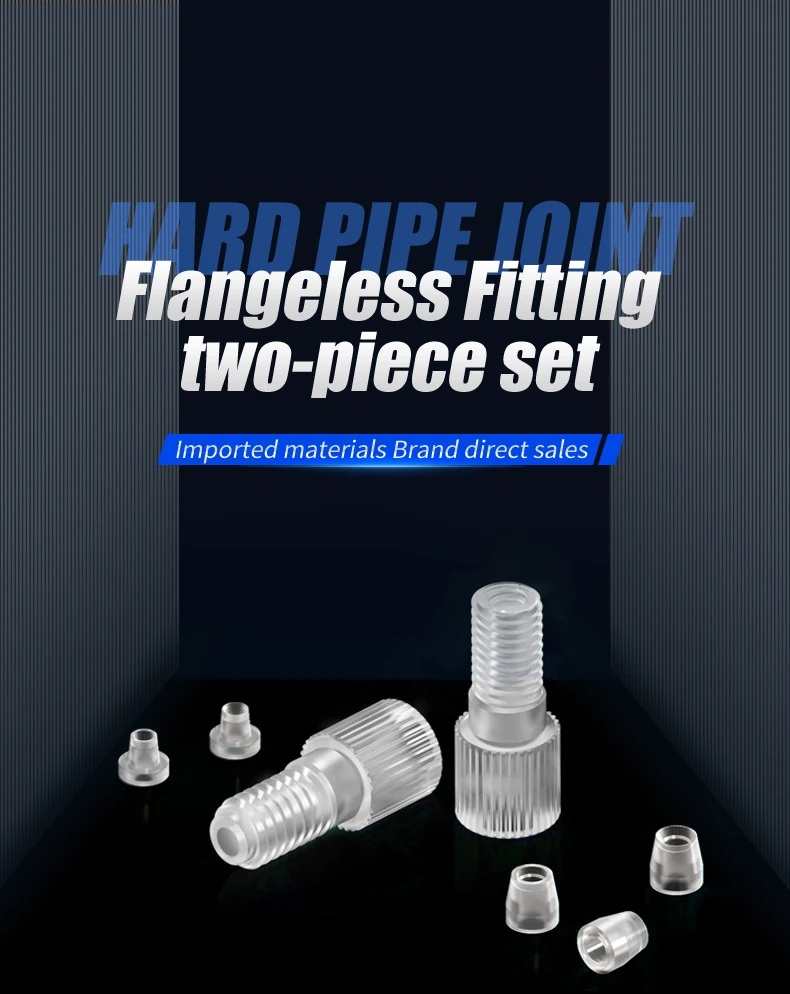

• PP or PTFE flangeless nut come with PP or PFA ferrule

• Compatible with flat bottom receiving port

• Finger-tight convenience, no wrenches required

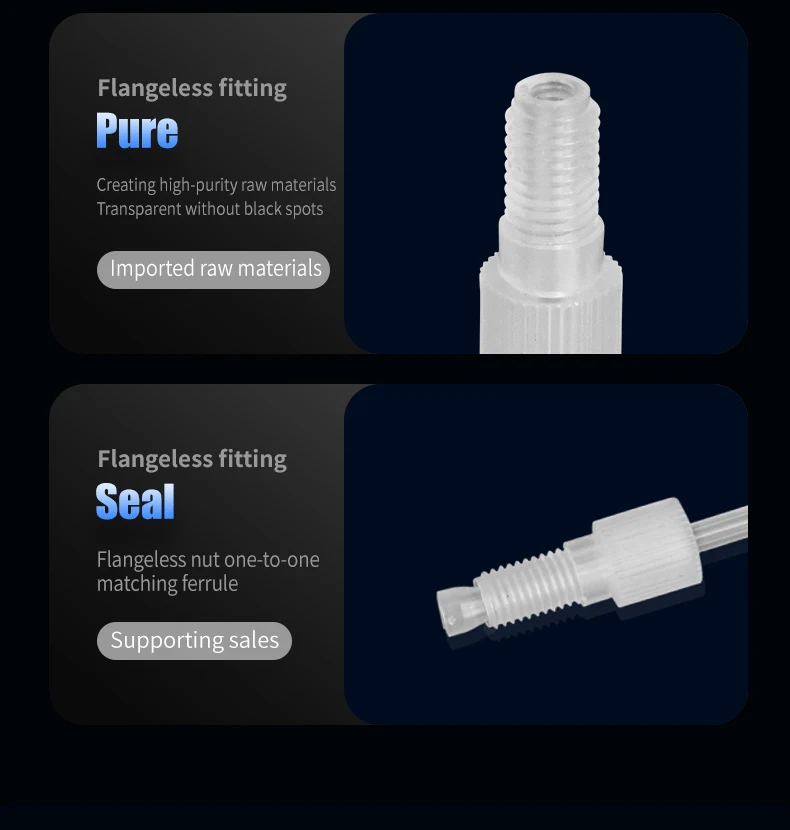

• Flangeless ferrules provide a leak-proof seal, users no need to spend time flanging tubing

• User for standard rigid tubing OD1/16"(1.6mm), 2.0mm, 2.5mm, 3.0mm, 1/18"(3.175mm), 3.2mm
