Landto Factory Us Solid Industrial Peristaltic Pump for Gel Dispensing Laundry System
Landto Factory Us Solid Industrial Peristaltic Pump for Gel Dispensing Laundry System
SPECIFICATIONS
Application: Lab use, industry use
Communication function: RS485
External control function: Yes
Foot switch control: Optional
Key word: Us Solid Industrial Peristaltic Pump For Gel Dispensing Laundry System
Material: ABS
Power: <200W
Speed range: 40-600RPM
Speed resolution: 1RPM
Working mode: Speed, flow, timing
application: Other,Developing World Water Solutions,Drinking Water Treatment,Family Homes,Food And Beverage Industry,Industrial Utilities,Machining,Pharmaceutical Industry,Water Distribution,Water Treatment Solutions
brand name: Landto
customized support: OEM,ODM
horsepower: 180W
model number: WT600
place of origin: Hebei, China
power source: Electric
pressure: Low Pressure
structure: Peristaltic Pump
voltage: 90V~260V
warranty: 1 year
Landto Factory Us Solid Industrial Peristaltic Pump For Gel Dispensing Laundry System
| Features |
Flow range max 6000mL/min
Timing function, add liquid medium timing and quantitative, more convenient
Working mode: speed, flow, timing
DC brushless motor drive, no maintenance, reliable
Import rotary knob, switch control, lifetime above 100000 times above

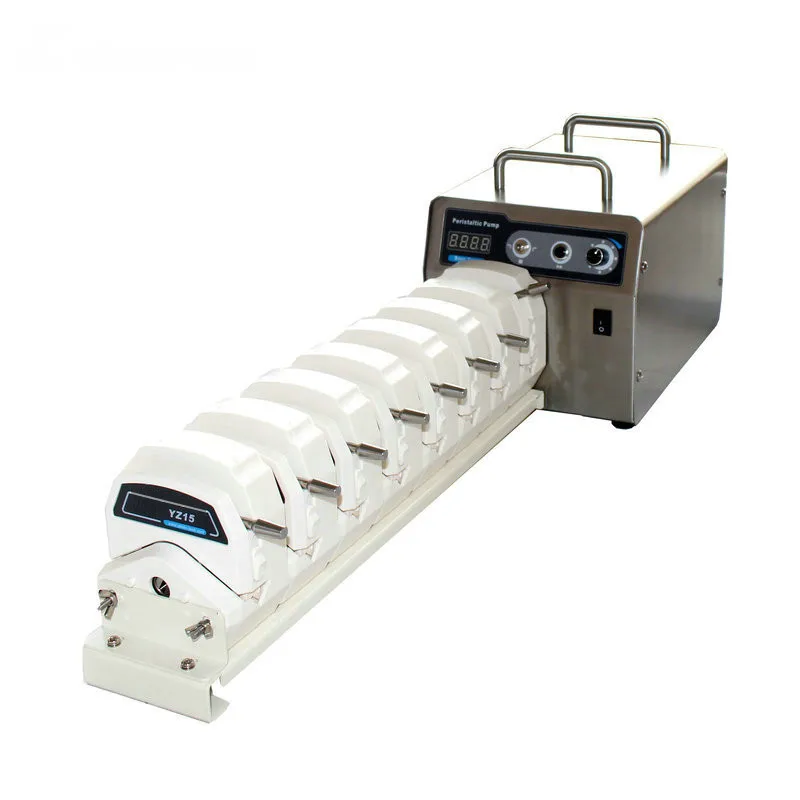

It max can be with 9pcs YZ head

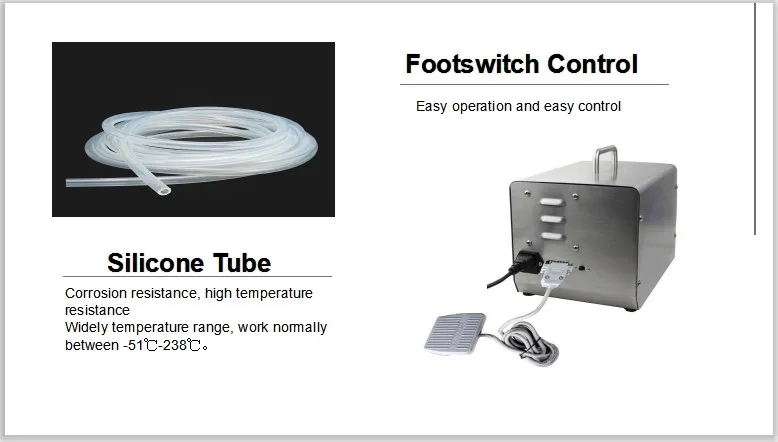

Foot switch for choice to control the pump.
YZ15 Pump head is PSU from Germany BASF,304 stainless steel roller and 440C bearing.
sturdy and durable,high corrosion resistance of Acid and alkali
KZ25 head is PPS material, high corrosion resistance of Acid , alkali and Organic solvents
| Technical Parameter |
|
Model |
WT600 |
|
CPU |
ARM Cortex-0 Core,STM32 Chip |
|
Brushless motor driver |
DBLS-07 |
|
Speed range |
40-600RPM |
|
Speed resolution |
1RPM |
|
Working mode |
Speed, flow, timing |
|
Display function |
4 digit LED display the speed or flow rate alternatively |
|
Direction control |
Clock-wise/counter clock-wise direction reversible |
|
Timing function |
Auto Start/Stop according to preset time, timing range 1S-99Hr |
|
Operation mode |
Adjust speed, flow rate or time via votary knob |
|
Full speed function |
Full speed button to realize fast filling and drain |
|
Power-down memory function |
After power on, running as before |
|
External control function |
Different model external control module for Start/Stop, direction, flow rate; 0-5V,0-10V,4-20mA,0-10KHz 4 module for option |
|
Communication function |
Optional communication module, RS485 communication control (via Modbus protocol) |
|
Output function |
Start/Stop, direction output, frequency 0-10KHz |
|
Foot switch control |
Optional |
|
Power Consumption |
<200W |
|
Power supply |
AC180V-260V 50Hz,110V,60Hz for choice |
|
Operation condition |
Temperature 0 to 40 °C, Relative humidity < 80% |
|
Driver weight |
5.8KG |
|
IP rate |
IP31 |
Landto Factory Us Solid Industrial Peristaltic Pump For Gel Dispensing Laundry System

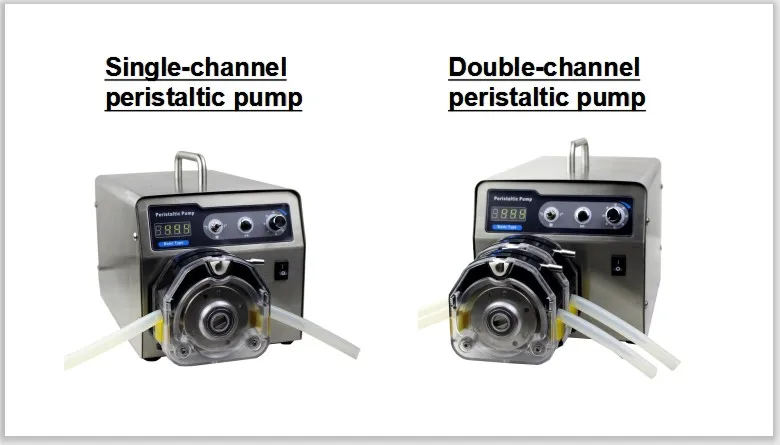

| Selection guide |

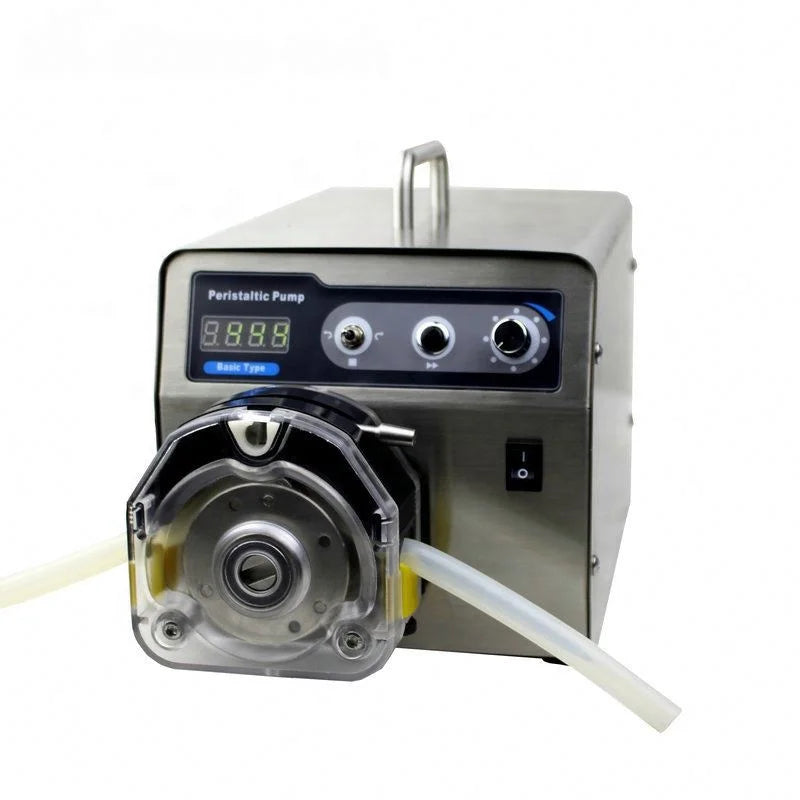

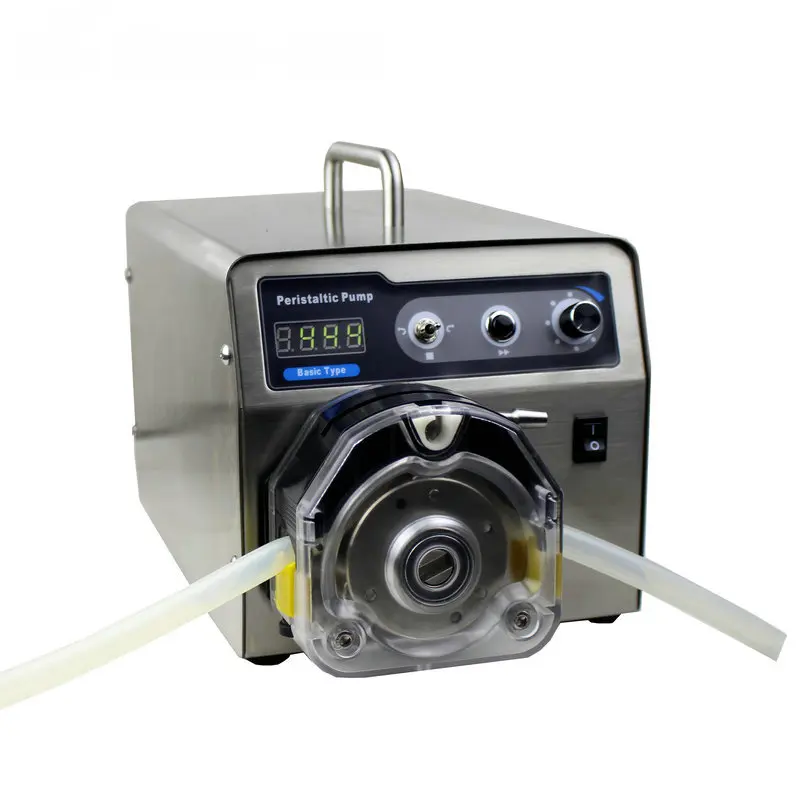

ABS shell and Stainless steel shell for choice

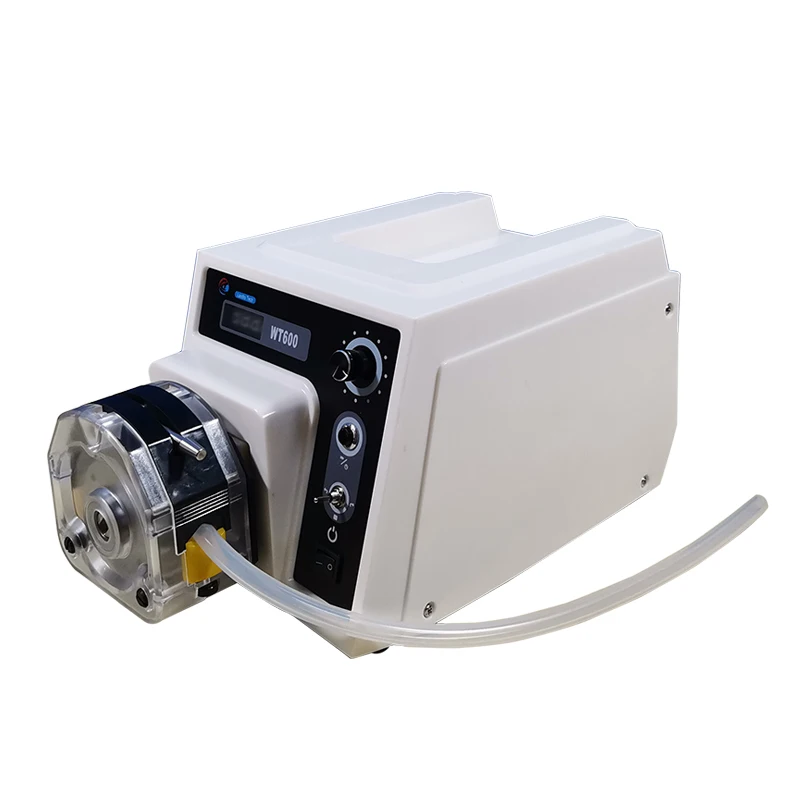

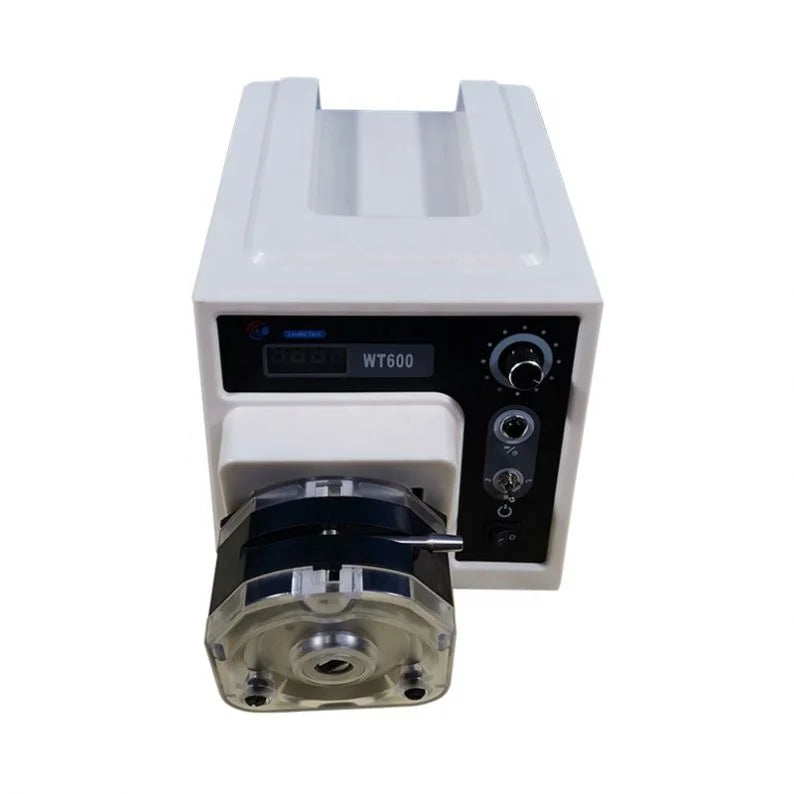

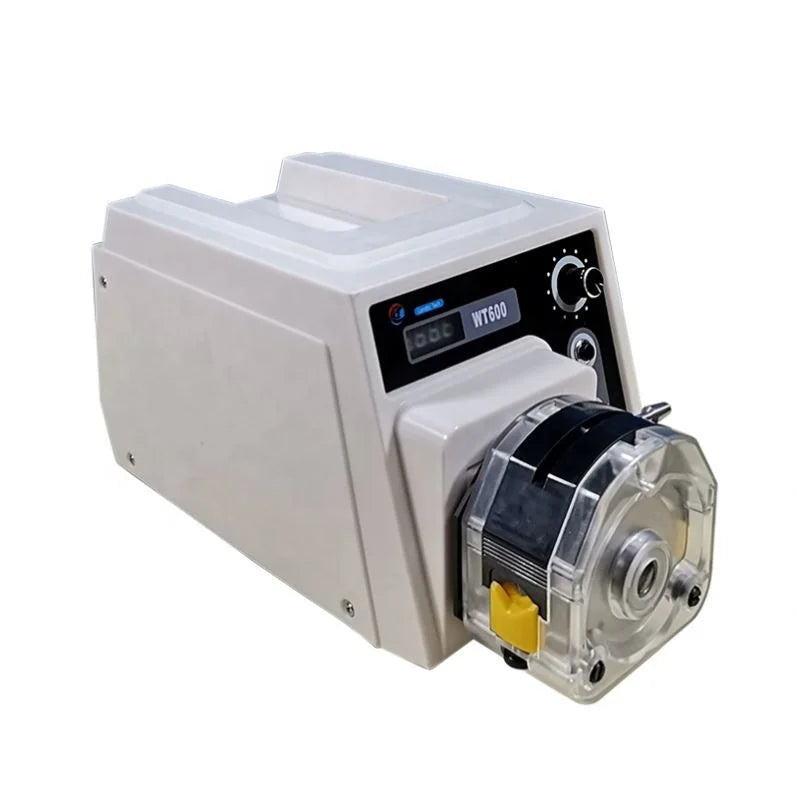

WT600+KZ25
WT600-B+KZ25
WT600+KZ25 pump head, Max flow rate is 6000Ml/min
