SPECIFICATIONS

Application: Metering

Brand Name: kamoer

Certification: CE,RoHS

Control methods: PWM speed control

Diaphragm Liquid Pump Flowrate: ≥800ml/min

Diaphragm Liquid Pump Motor: Outer Brushless motor

Diaphragm Liquid Pump Motor life: ≥8000H

Diaphragm Liquid Pump Voltage: 12V/24V

Diaphragm material: EPDM

Fuel: electric

High-concerned chemical: None

Model Number: HLLP600 Diaphragm Liquid Pump

Negative pressure: ≤-0.02Mpa

Noise: ≤75dB

Origin: China Mainland

Power: ≤20W

Power (W): Electric

Power Source: Electric

Pressure: Low Pressure

Standard or Nonstandard: Standard

Structure: Diaphragm Pump

Theory: Diaphragm pump

Usage: Water

Weight: 436g

HLLP600 Diaphragm Liquid Pump 12V 24V BLDC

High Liquid Pressure 0.9Mpa Long Life

for Lab Analysis and Filling

Diaphragm Liquid Pump Brushless Motor- 8000H lifetime

Noise ≤75d

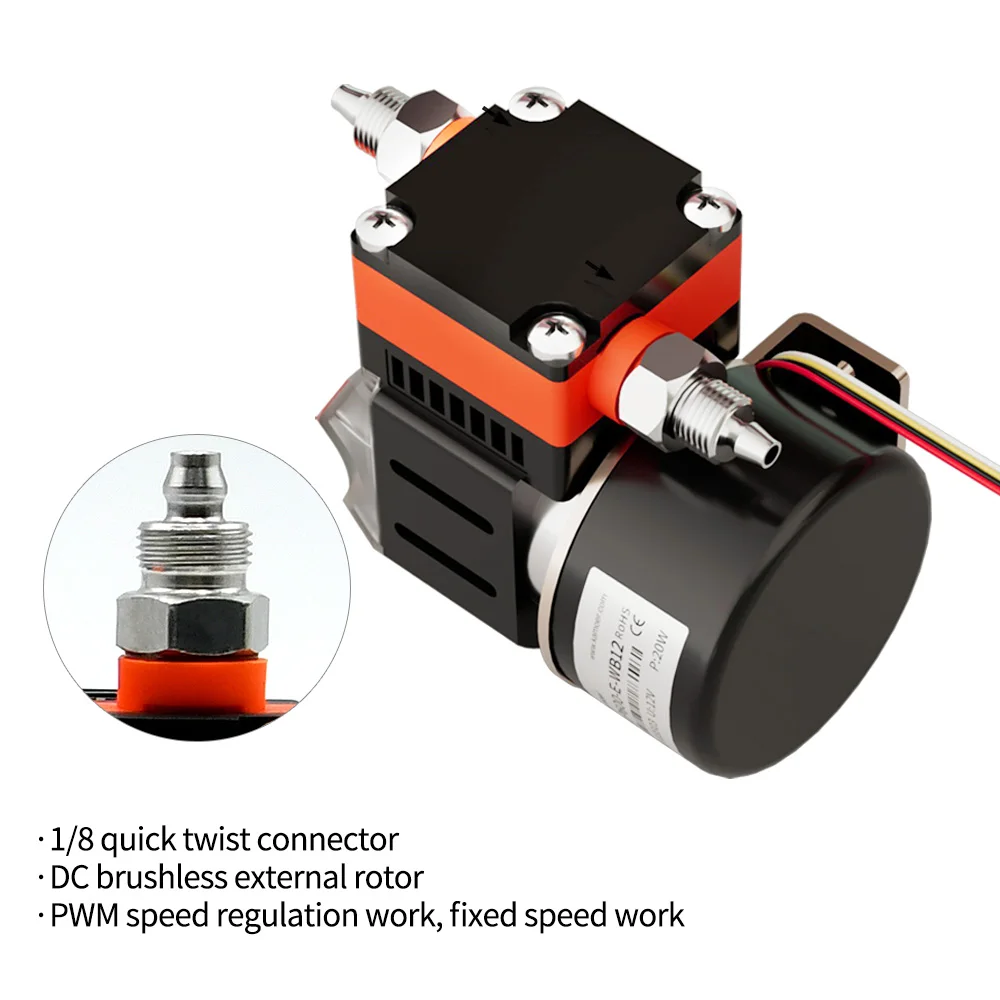

Threaded joint 1/8 NPT

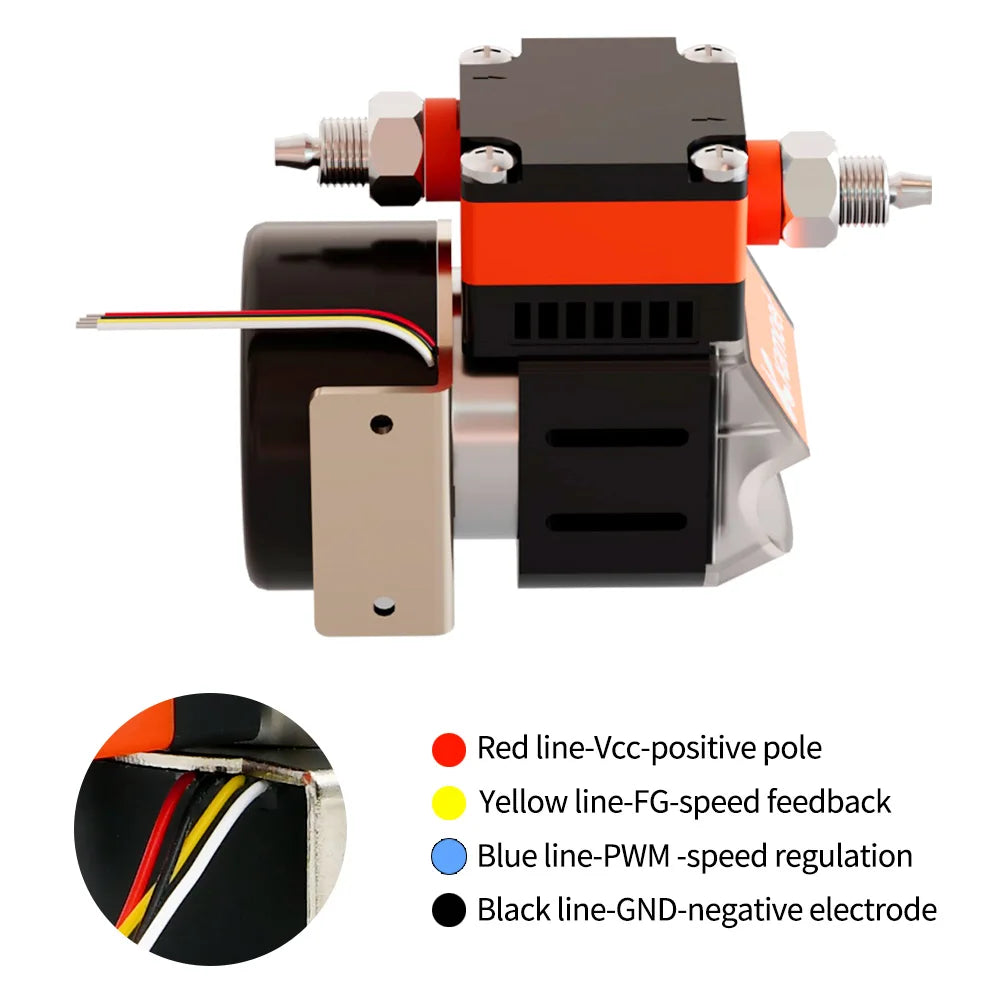

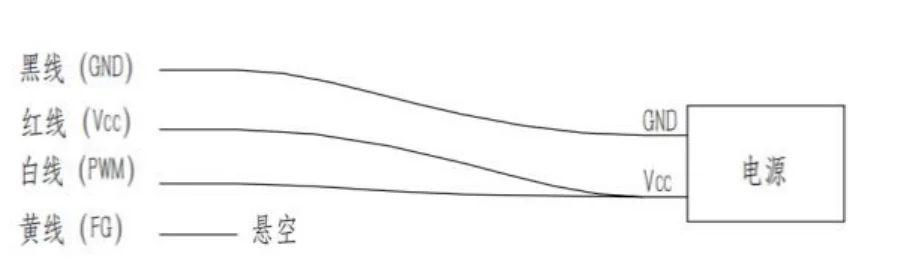

Wiring Description



① Speed controlled operation



② Full speed operation

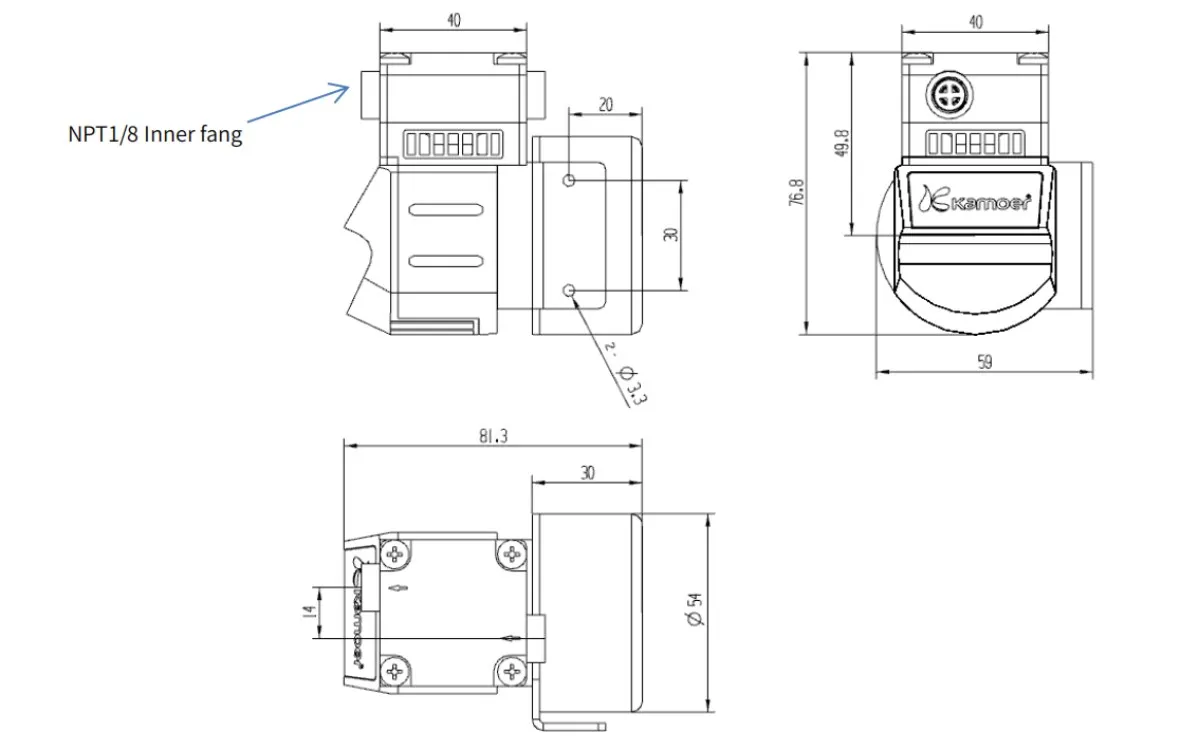

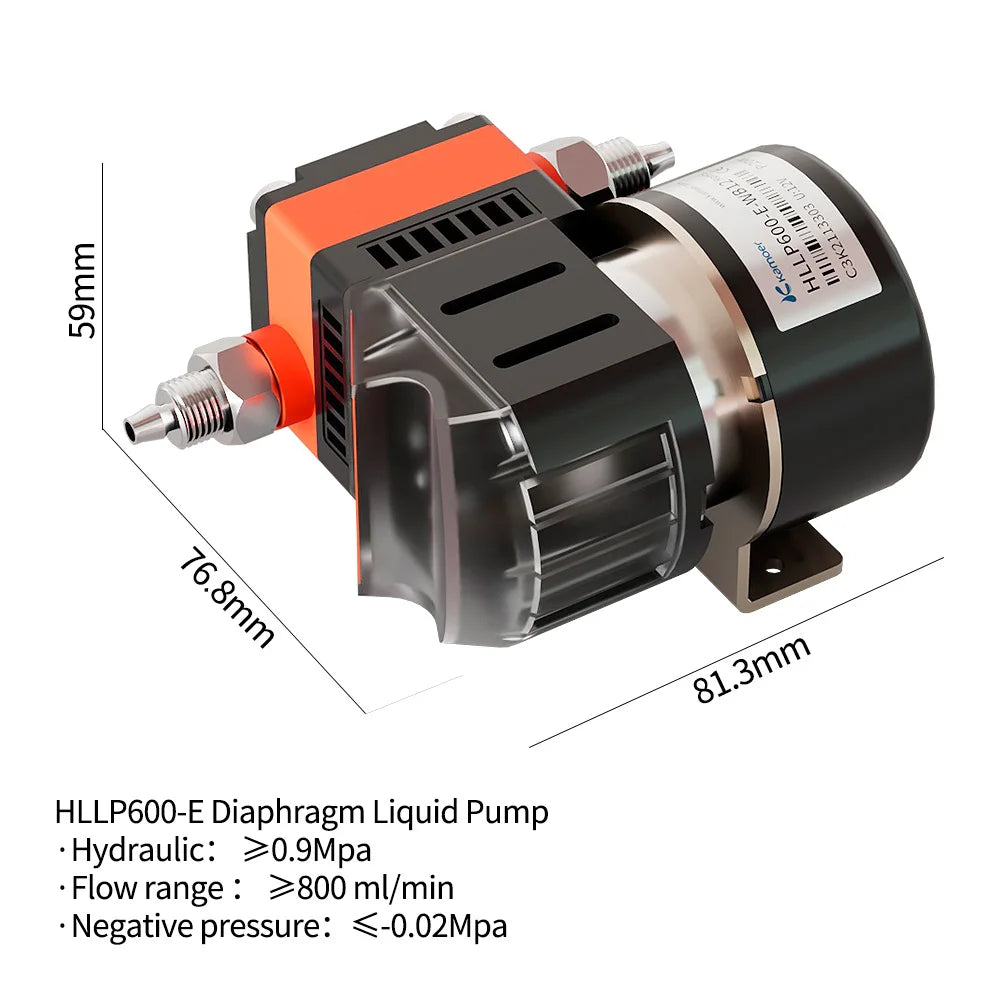

Dimensions

Optional Accessories

PU tubing-ID5mmxOD8mm

5/32 straight connector

1/8 quick twist connector(5mmx8mm)
