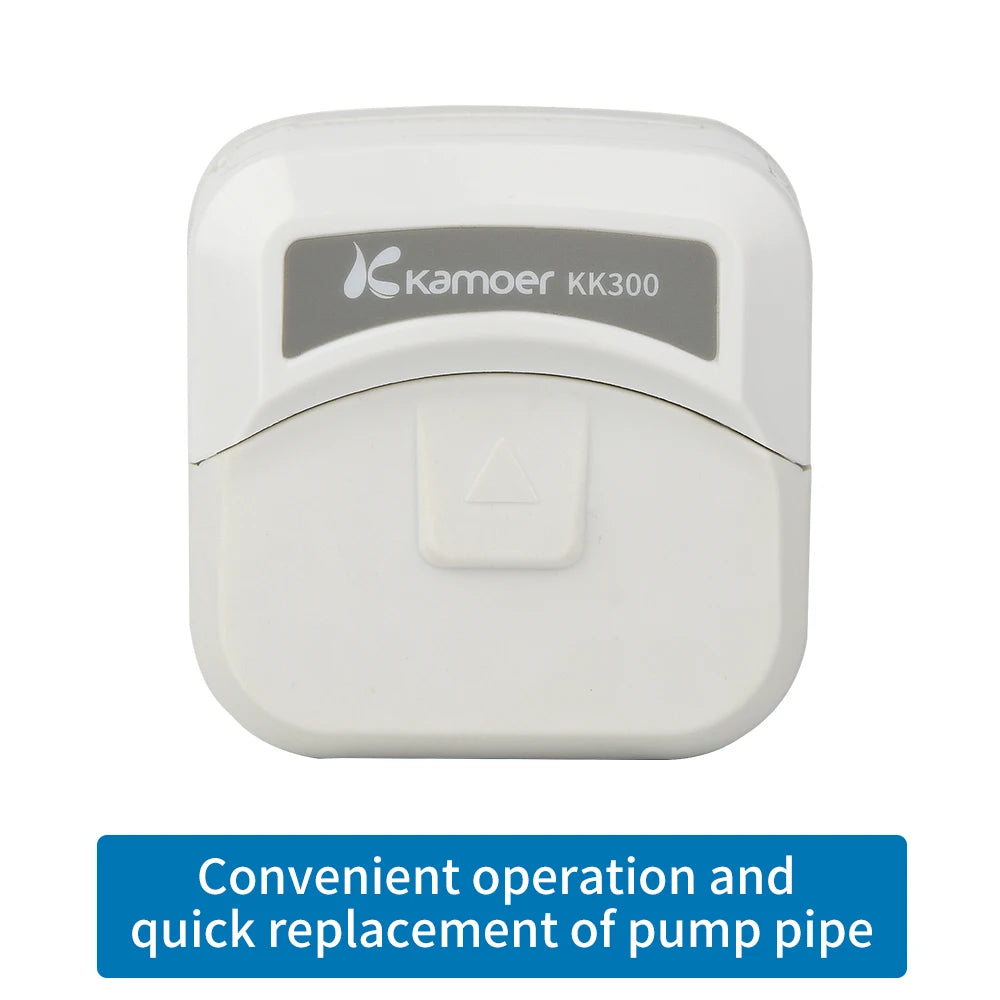

Kamoer 80-290ml/min KK300-D Peristaltic Pump 12V DC Motor Self-priming Pump with Transformers Pump Head Laboratory Dosing Pump
Kamoer 80-290ml/min KK300-D Peristaltic Pump 12V DC Motor Self-priming Pump with Transformers Pump Head Laboratory Dosing Pump
SPECIFICATIONS
Application: Metering
Brand Name: kamoer
Certification: CE,RoHS

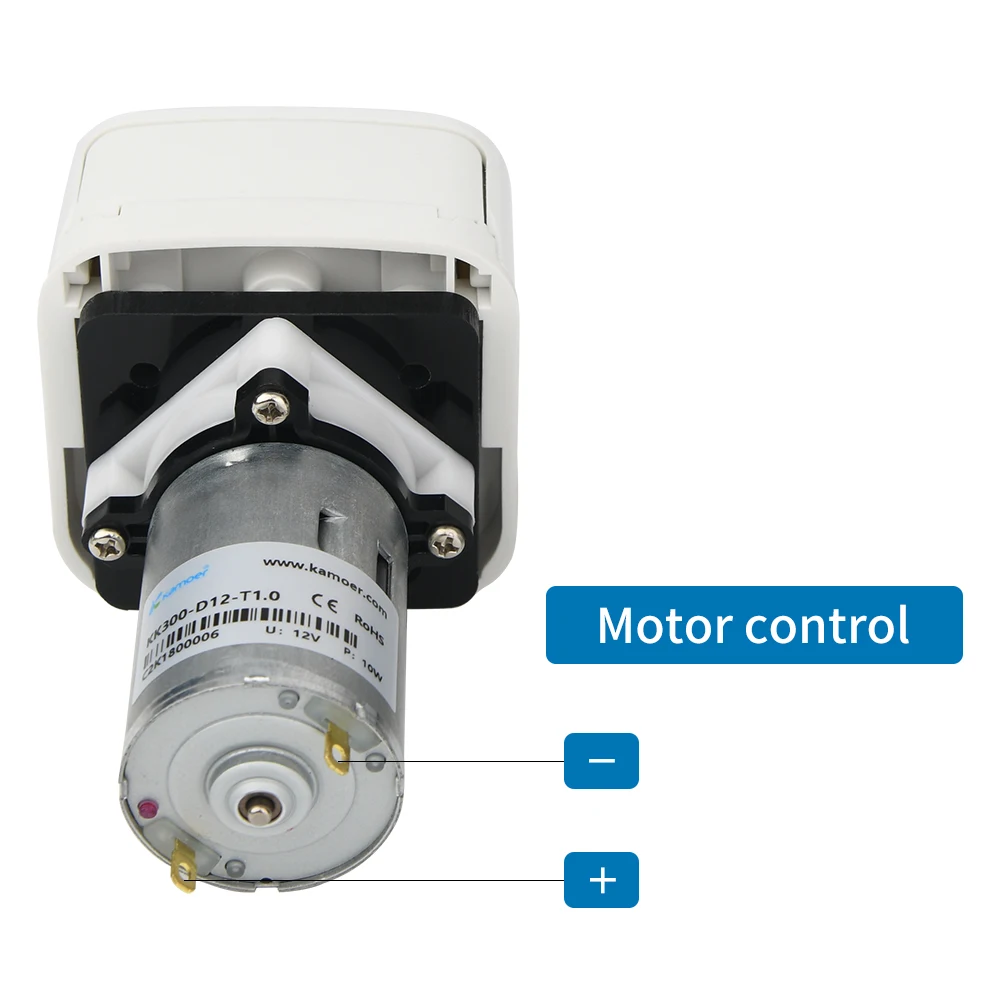

Control method: Switch control
Fuel: Electric
High-concerned chemical: None
Model Number: KK300-D Peristaltic Pump
Noise: Less than 65dB
Origin: China Mainland
Peristaltic Pump Flow rate: 80-290ml/min
Peristaltic Pump Motor: DC motor(800H lifetime)
Peristaltic Pump Voltage: 12V/24V
Power: 10W
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure
Roller: 4 rollers
Standard or Nonstandard: Standard
Structure: Peristaltic Pump
Theory: Rotary Pump
Tube choice: BPT-800H/Silicone-100H
Usage: Water
KK300 80-290ml/min KK300-D DIY Peristaltic Pump 12V
Self-priming Pump with Transformers Pump Head

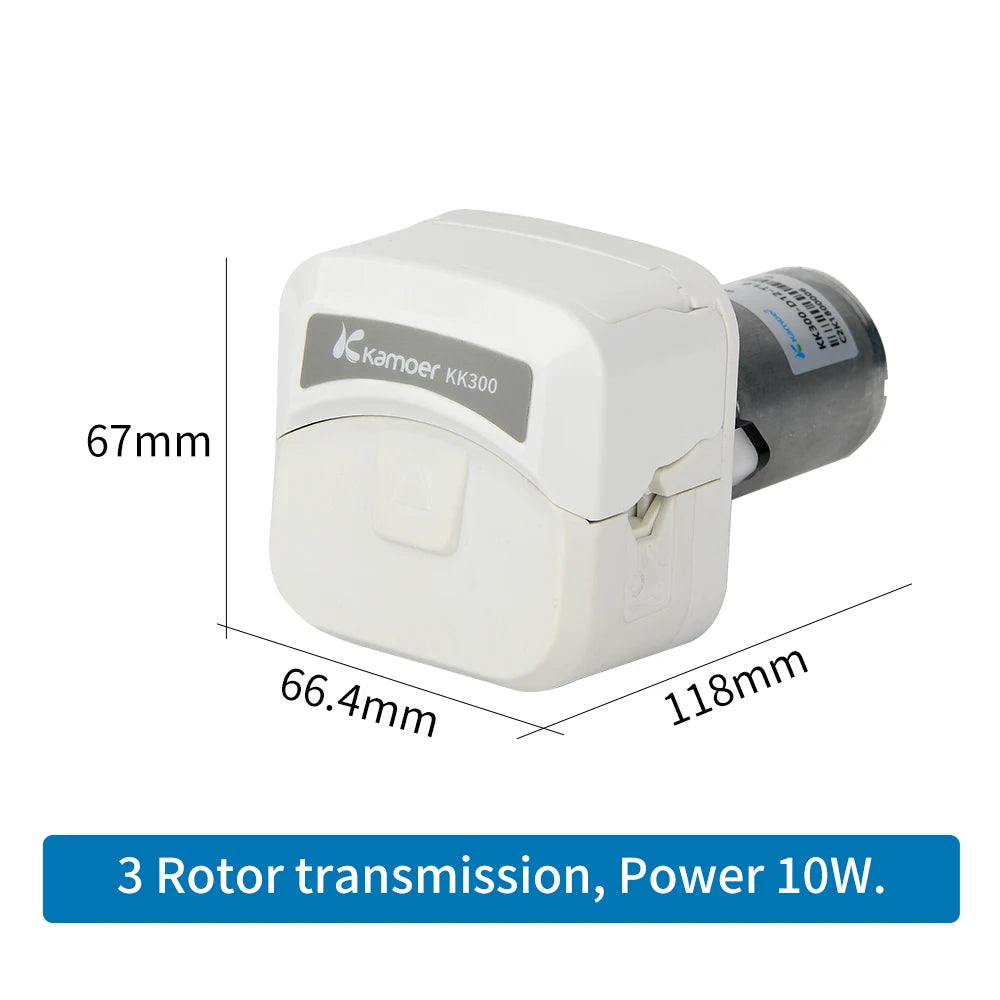

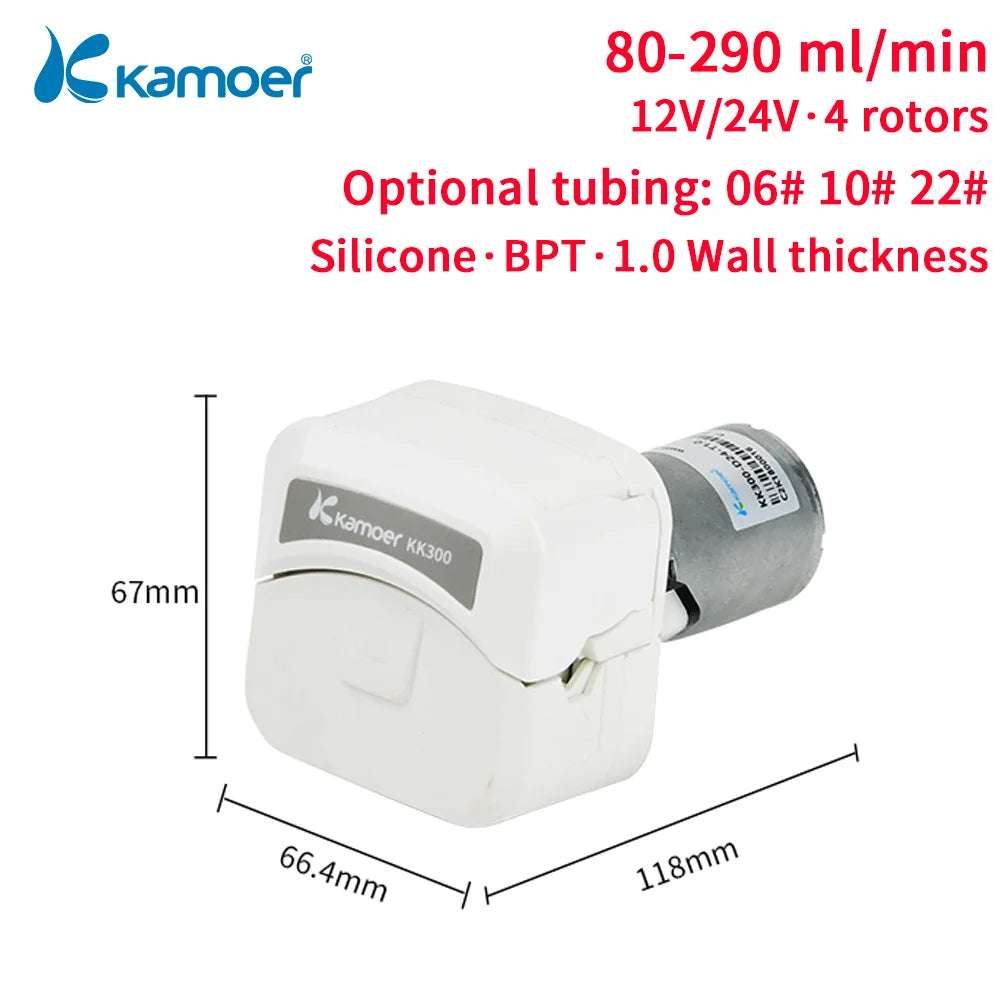

66.4mmx118mmx67mm(LxWxH)
DC Motor- 800Hs
D12 is 12V
D24 is 24
Tubing Description
If your liquid is viscous or corrosive, please choose BPT tubing.
|
Tube diameter ID:inner diameter OD:outer diameter |
Flow rate (ml/min) |
Flow rate (ml/min) |
|
B06 ID2xOD4mm Lifetime-800H |
D12/0.8A 80ml/min |
D24/0.4A 90ml/min |
|
S06 ID3.2 x OD6.4mm Lifetime-100H |
D12/0.8A 80ml/min |
D24/0.4A 90ml/min |
|
B10 ID3xOD5mm Lifetime-800H |
D12/0.8A 160ml/min |
D24/0.4A 180ml/min |
|
S10 ID3 x OD5mm Lifetime-100H |
D12/0.8A 160ml/min |
D24/0.4A 180ml/min |
|
B22 ID4xOD6mm Lifetime-800H |
D12/0.8A 260ml/min |
D24/0.4A 290ml/min |
|
S22 ID4 x OD6mm Lifetime-100H |
D12/0.8A 260ml/min |
D24/0.4A 290ml/min |

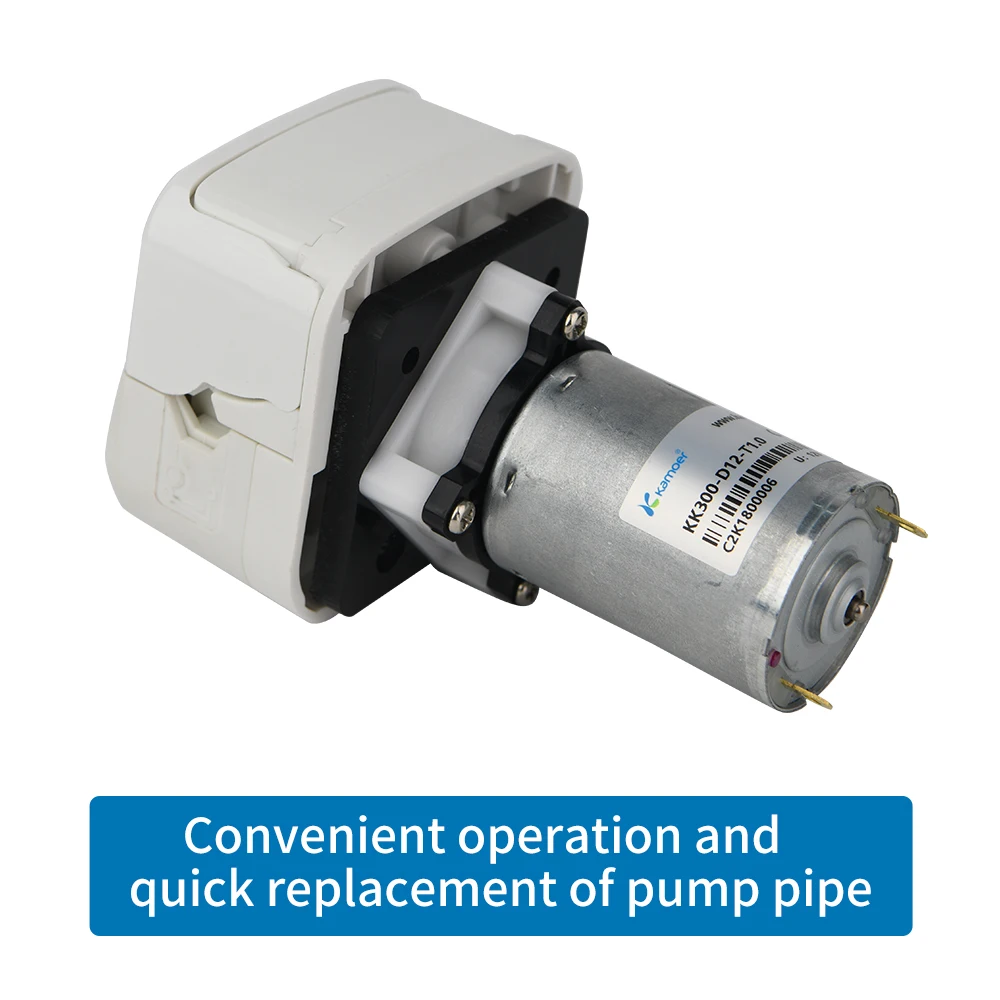

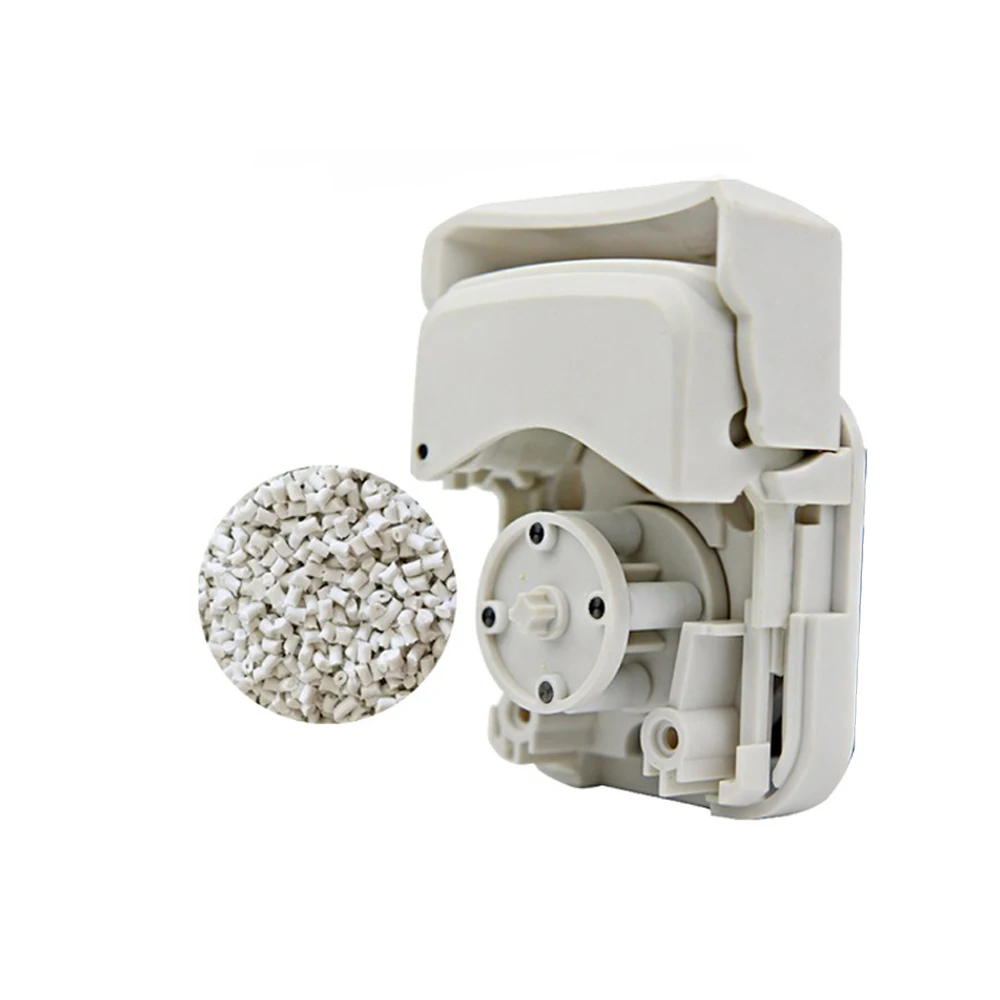

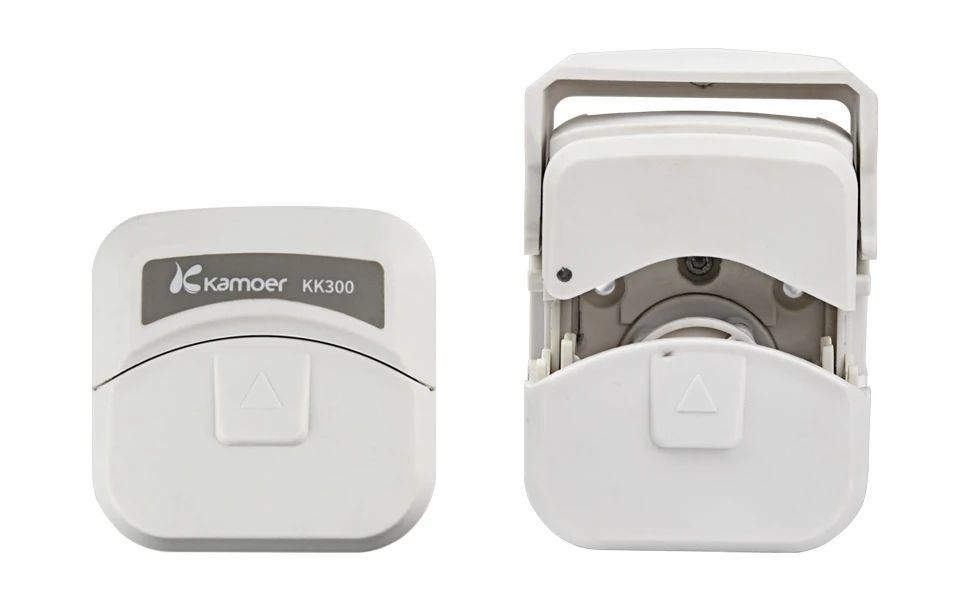

Pump Head with BPT tubing/Silicone tubing
BPT-800H; Silicone-100H
Micro size & Easy to carry-the same as KK300 stepper motor

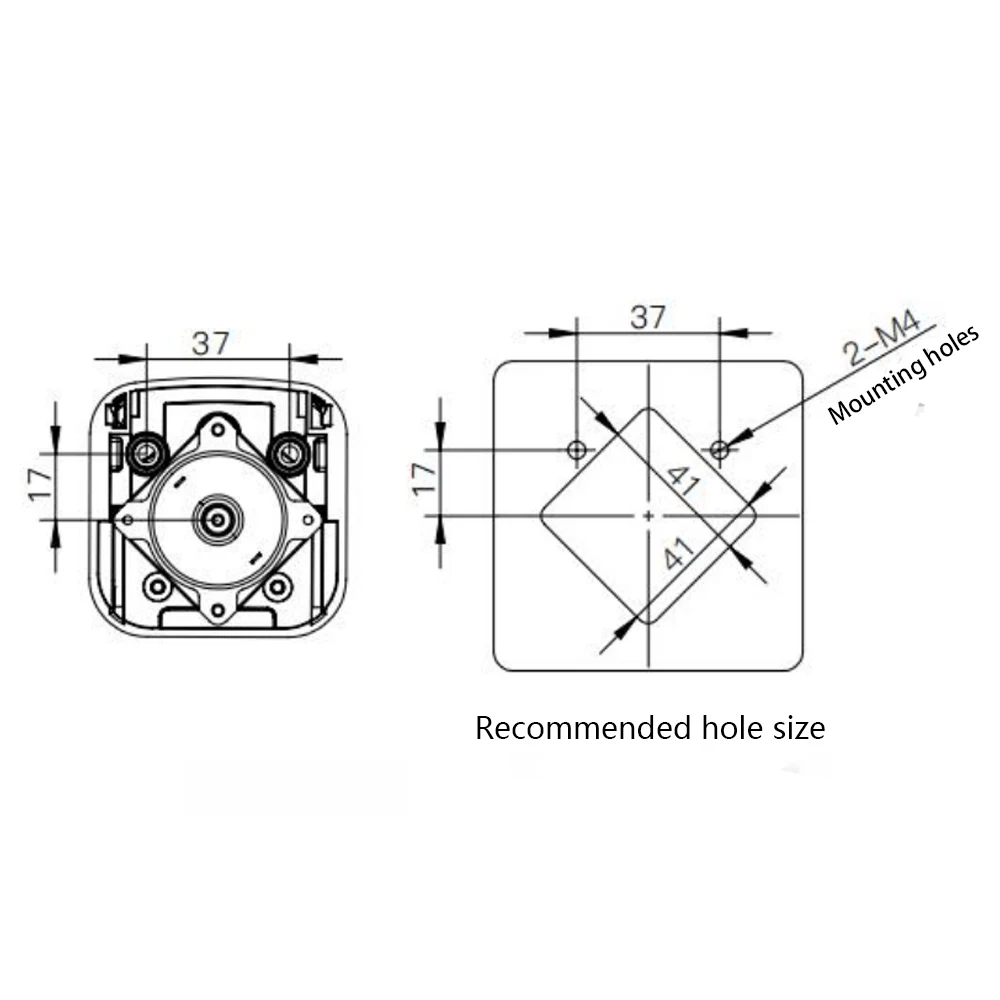

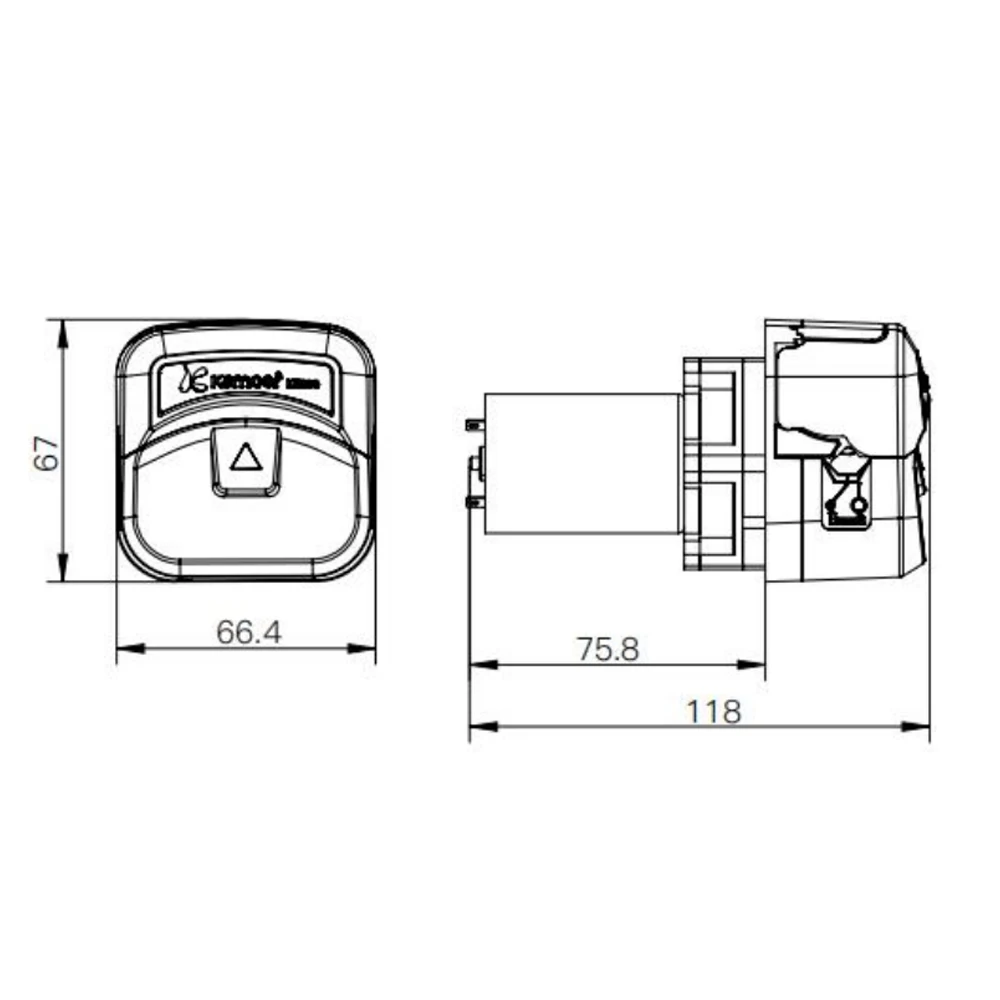

Dimensions
