Kamoer 5-8L/min KVP8 Micro Diaphragm Vacuum Pump12V 24V Brush Motor High Negative Pressure 0.082Mpa Suction Pump Air Pump
Kamoer 5-8L/min KVP8 Micro Diaphragm Vacuum Pump12V 24V Brush Motor High Negative Pressure 0.082Mpa Suction Pump Air Pump
SPECIFICATIONS
Brand Name: kamoer
Certification: CE,RoHS
Diaphragm Vacuum Pump Flow rate: More than 320L/H; More than 480L/H
Diaphragm Vacuum Pump Motor: Brush DC motor
Diaphragm Vacuum Pump Voltage: 12V/24V
Feature: electric air pump
Fuel: Electric
High-concerned chemical: None
Life time: 2000 H
Model Number: KVP8 Diaphragm Vacuum Pump
Name: Kamoer 12 v electric air pump
Noise: Low
Origin: China Mainland
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure
Principle: pump electric
Quality: Higher
Standard or Nonstandard: Standard
Structure: Diaphragm Pump
Theory: Vacuum Pump
Use: Air Pump
is_customized: Yes
# Pretty
# Low Noise
# Long life
# High Negative Pressure
# Chemical stability
# Dry running
# Maintenance free
Basic Parameters
Diaphragm Vacuum Pump Voltage: 12 V/24 V
Motor: Brush motor and Brushless motor
Flow rate: KK/KJ/KB/KD-In parallel:＞480L/H; KB/KD-In Series: >400L/H;
KBC/KDC-In parallel: 60-480L/H; KBC/KDC-In Series: 60-320L/H
KK/KJ-In Series:＞320L/H
Positive Pressure: ＞ 0.1Mpa
Negative Pressure: ＜ -0.082Mpa
Noise: ＜ 65dB
Connection: In parallel and In series
Weight: less than 0.3 KG
Environment temperature range: 0~40℃
Ambient humidity range: ＜80%
▲ Negative pressure(in serious):＜-0.082 Mpa
▲ Negative pressure(in parallel): ＜-0.06 Mpa

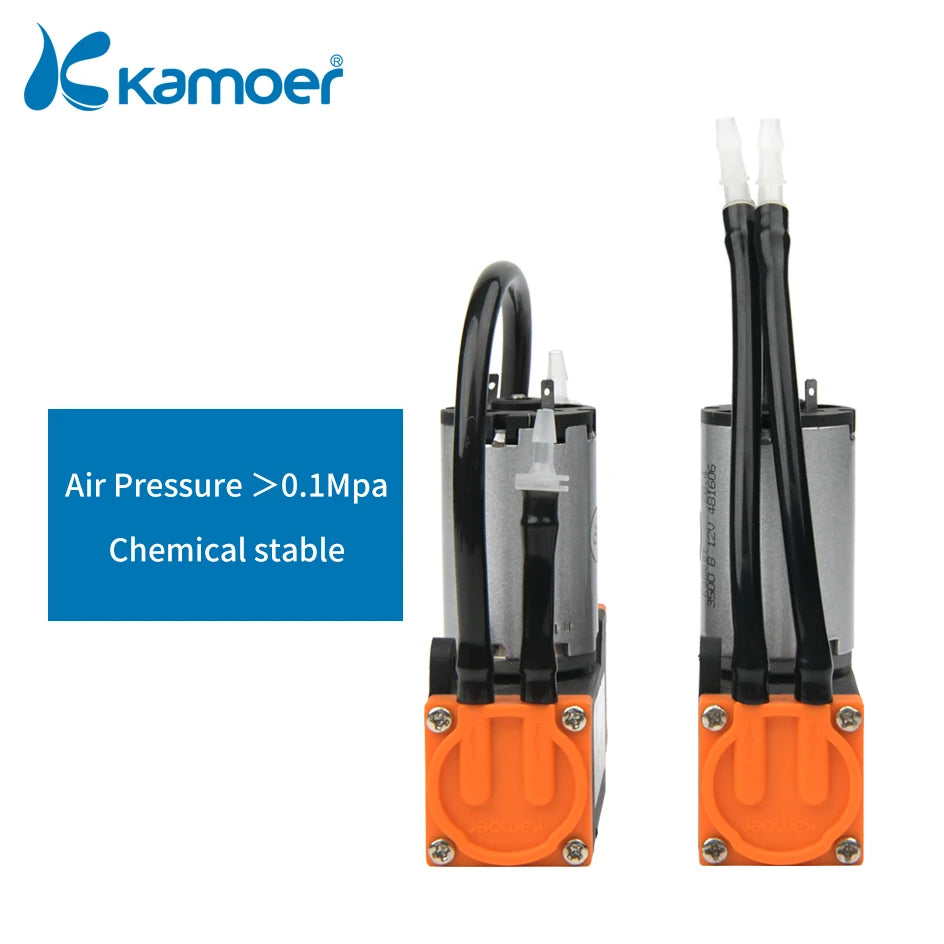

▲ Air positive pressure: ＞0.1 Mpa
★ Other Features:
Dry running; lasting and maintenance free; chemical stability.

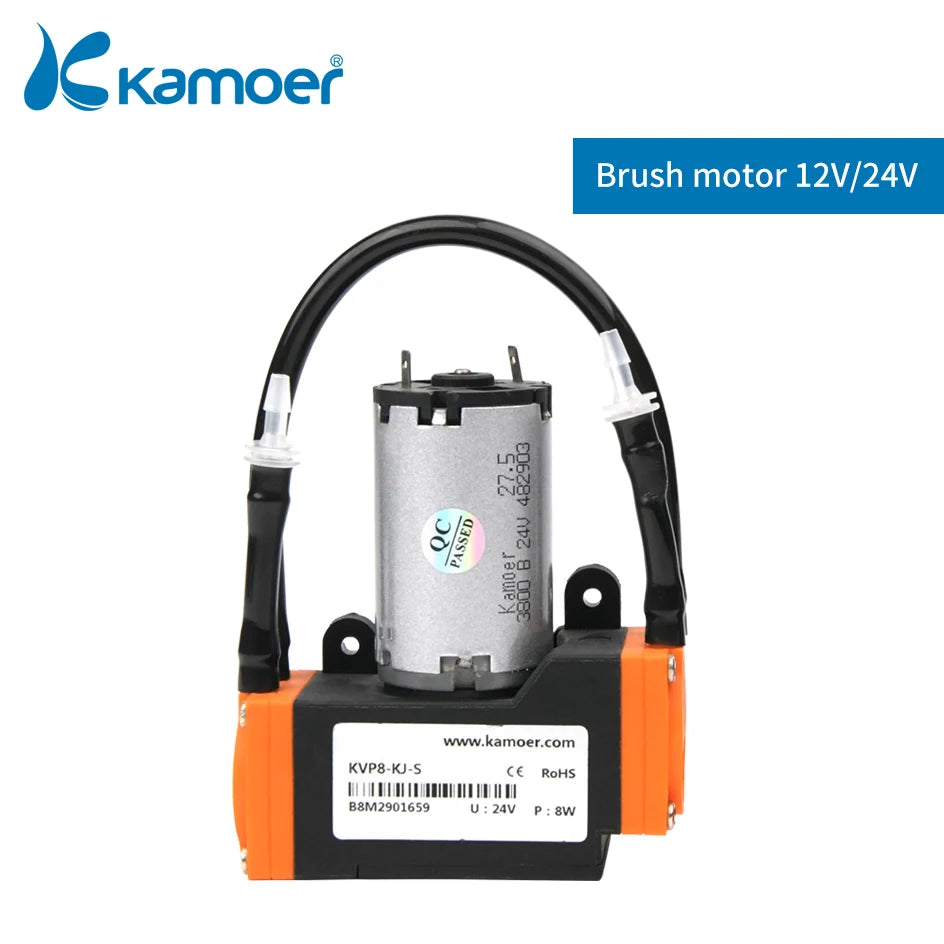

Brush motor and brushless motor for selection

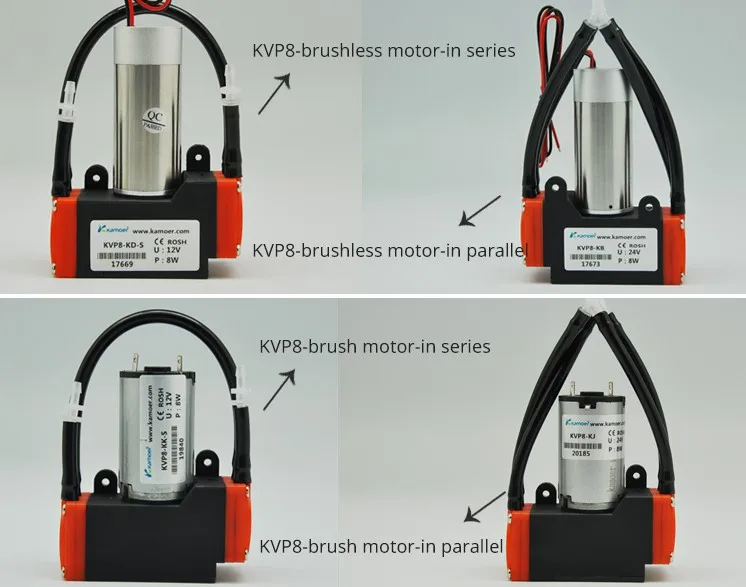

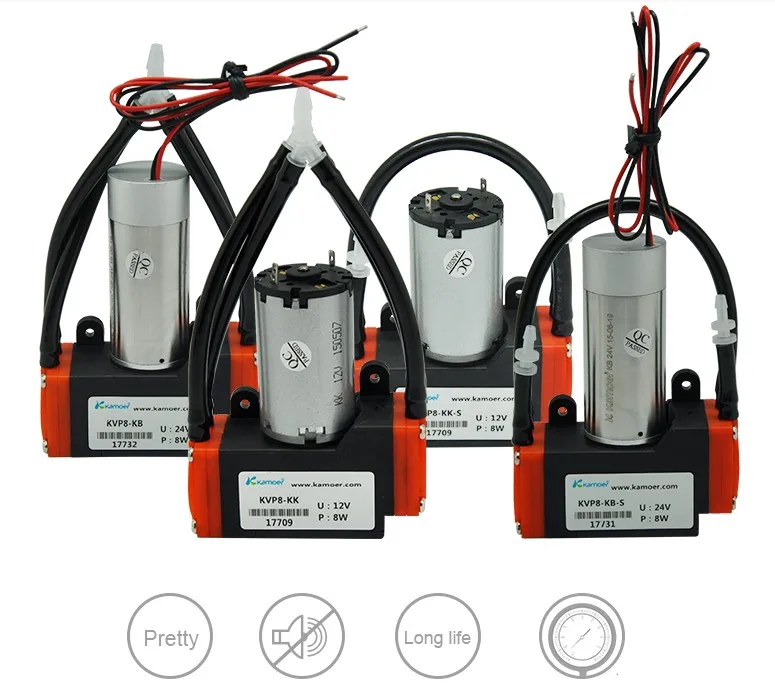

KVP8 Diaphragm Vacuum Pump Series has 4 models
Upper left: KVP8-brushless motor in series;
Upper right: KVP8-brushless motor in parallel;

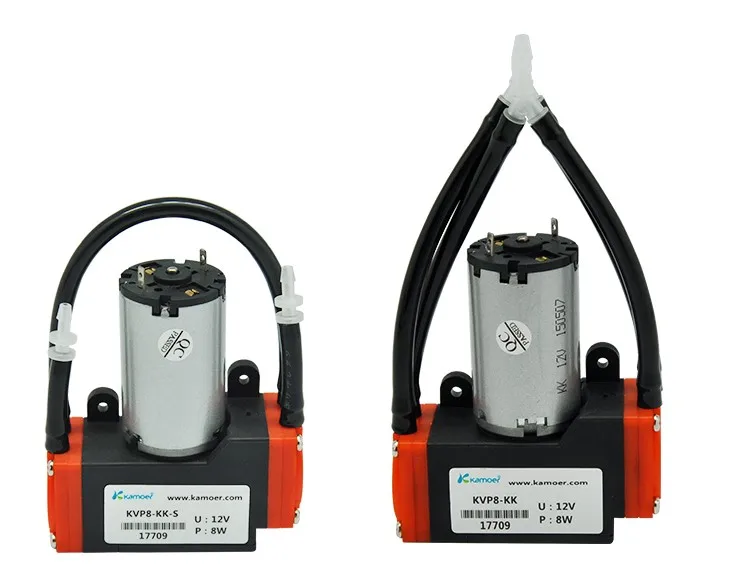

Bottom left: KVP8-brush motor in series;
Bottom right: KVP8-brush motor in parallel.
▲ Difference 1: Lifetime
Brush motor: 2000 H VS Brushless motor 6000 H

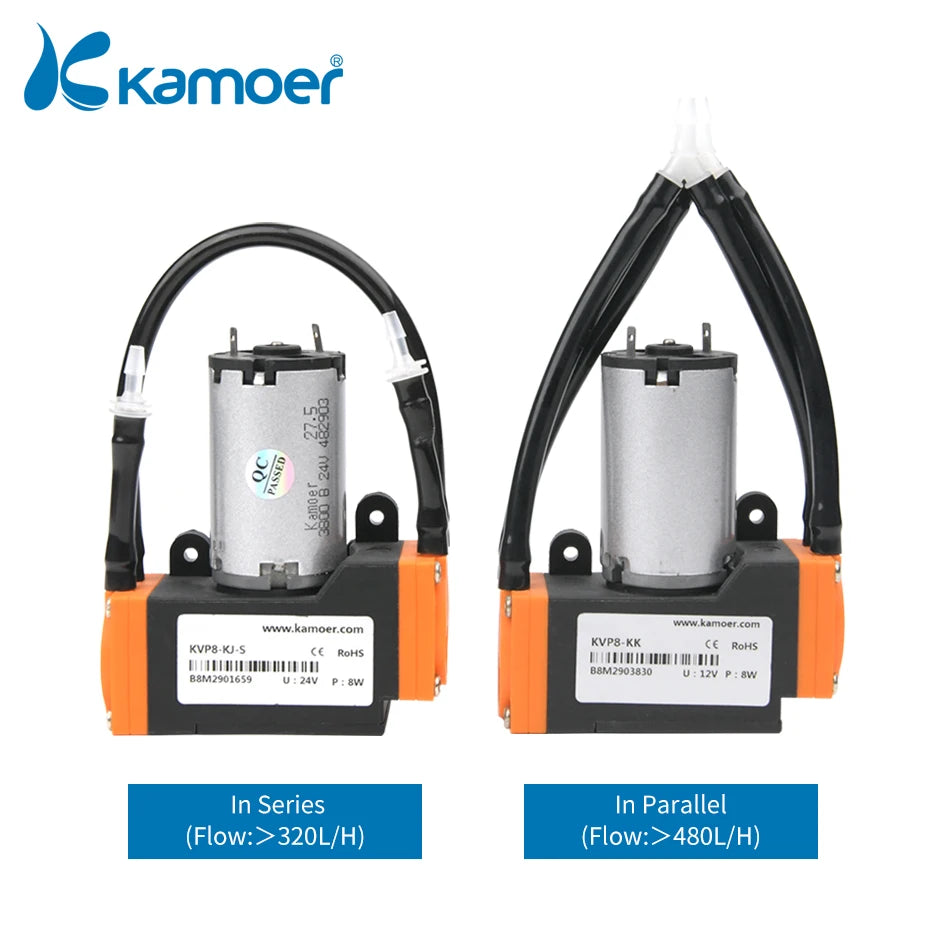

▲ Difference 2: Pressure & Flow rate
In series: high vacuum degree -0.082 Mpa

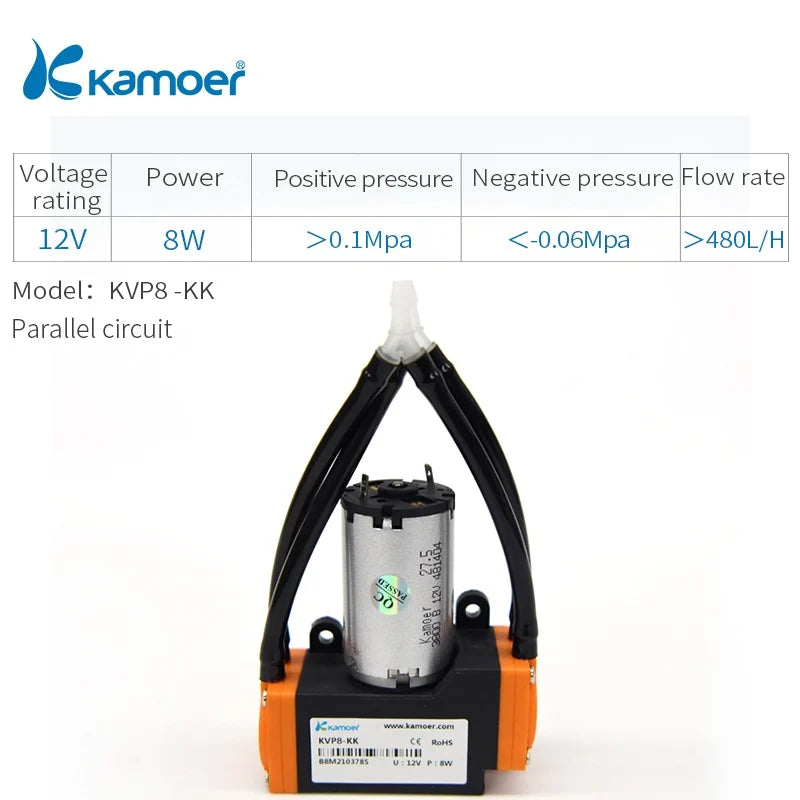

In parallel: high flow rate 480 L/H
Various Applications

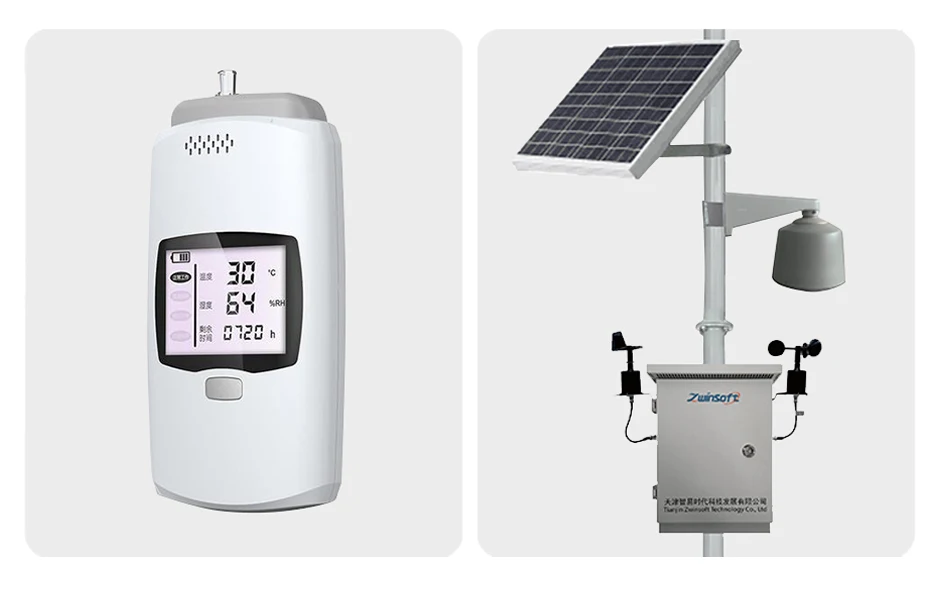

VOCS online detector
Negative pressure wound therapy device & Air Micro Station
Food and drink、Plant irrigation、Analytical Instruments、Liquid transfer、Wash clean
Environmental protection instrument、Experimental research、Industrial machinery、White goods、DIY Water Pump

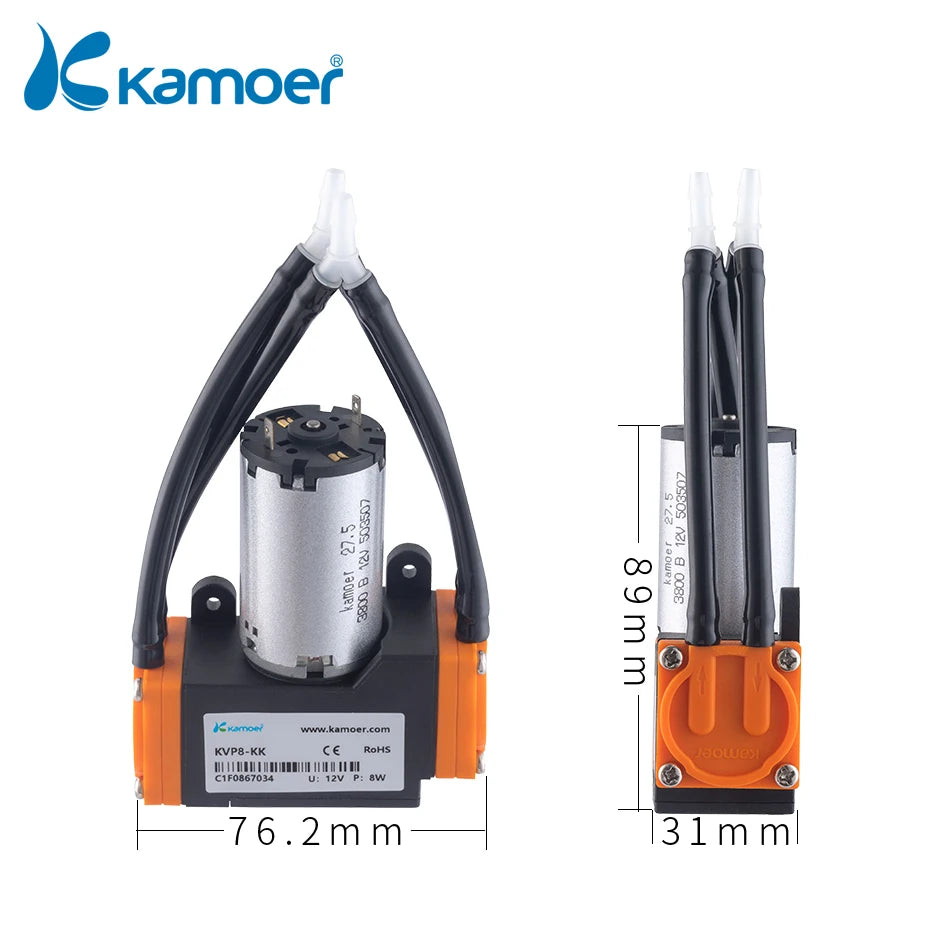

Product Size
Packing List
1 × pump（in series / in parallel）
More Details
Multi-line Speed Vacuum Pump

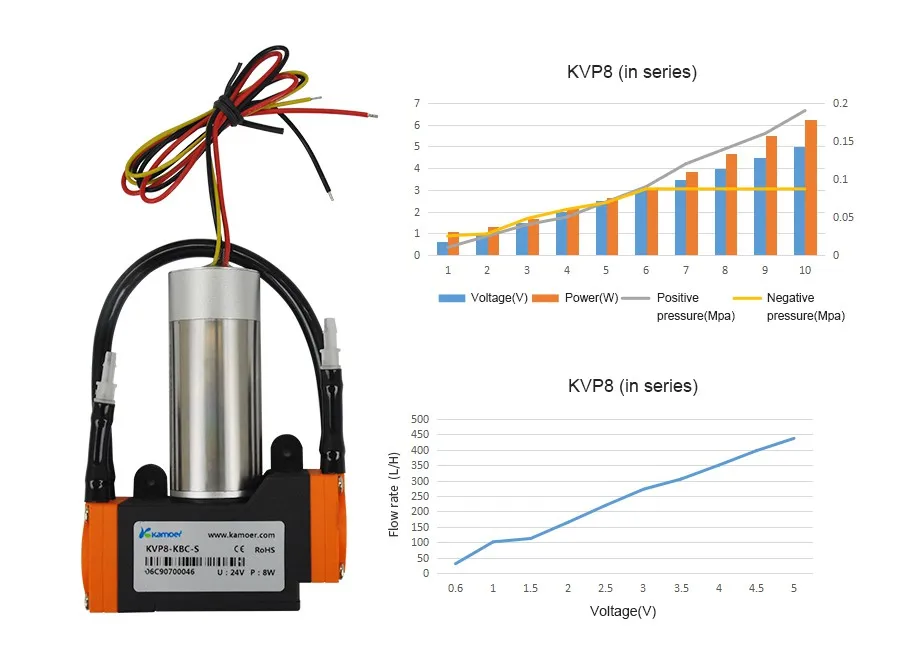

—KVP8 KBC-in series (Flow rate: 60-320L/H).

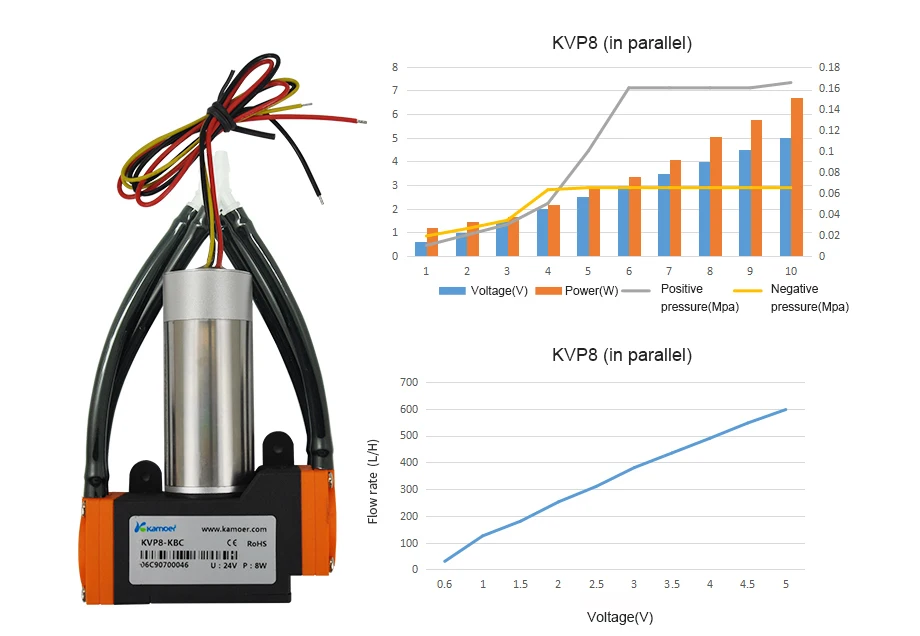

—KVP8 KBC-in parallel (Flow rate: 60-480L/H)
Contact us if any question.
