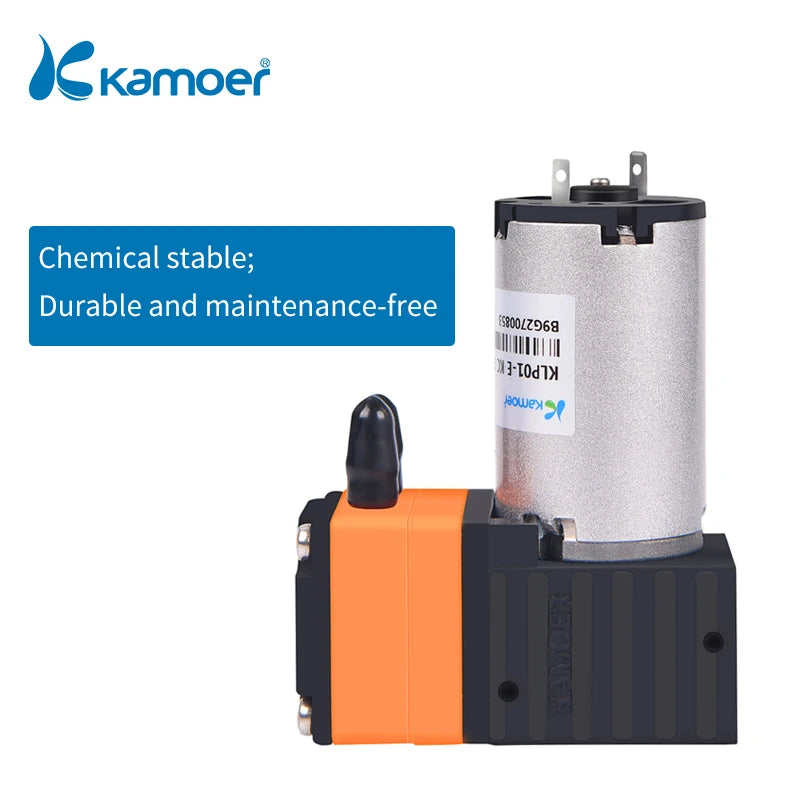

Kamoer 400ml/min KLP01 Mini High Flow Diaphragm Liquid Pump 12V 24V DC Motor Liquid Pressure 3 Bar 62dB for Lab and Waste Water
Kamoer 400ml/min KLP01 Mini High Flow Diaphragm Liquid Pump 12V 24V DC Motor Liquid Pressure 3 Bar 62dB for Lab and Waste Water
SPECIFICATIONS
Application: Metering
Brand Name: kamoer
Certification: CE,RoHS
Diaphragm Liquid Pump Flowrate: 400-500ml/min
Diaphragm Liquid Pump Motor: brush dc motor
Diaphragm Liquid Pump Motor life: 2000H
Diaphragm Liquid Pump Voltage: 12V/24V
Diaphragm material: EPDM
Fuel: electric
High-concerned chemical: None
Model Number: KLP01-E-KA/KC
Noise: Less than 62dB
Origin: China Mainland
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure
Standard or Nonstandard: Standard
Structure: Diaphragm Pump
Theory: Diaphragm pump
Usage: Water

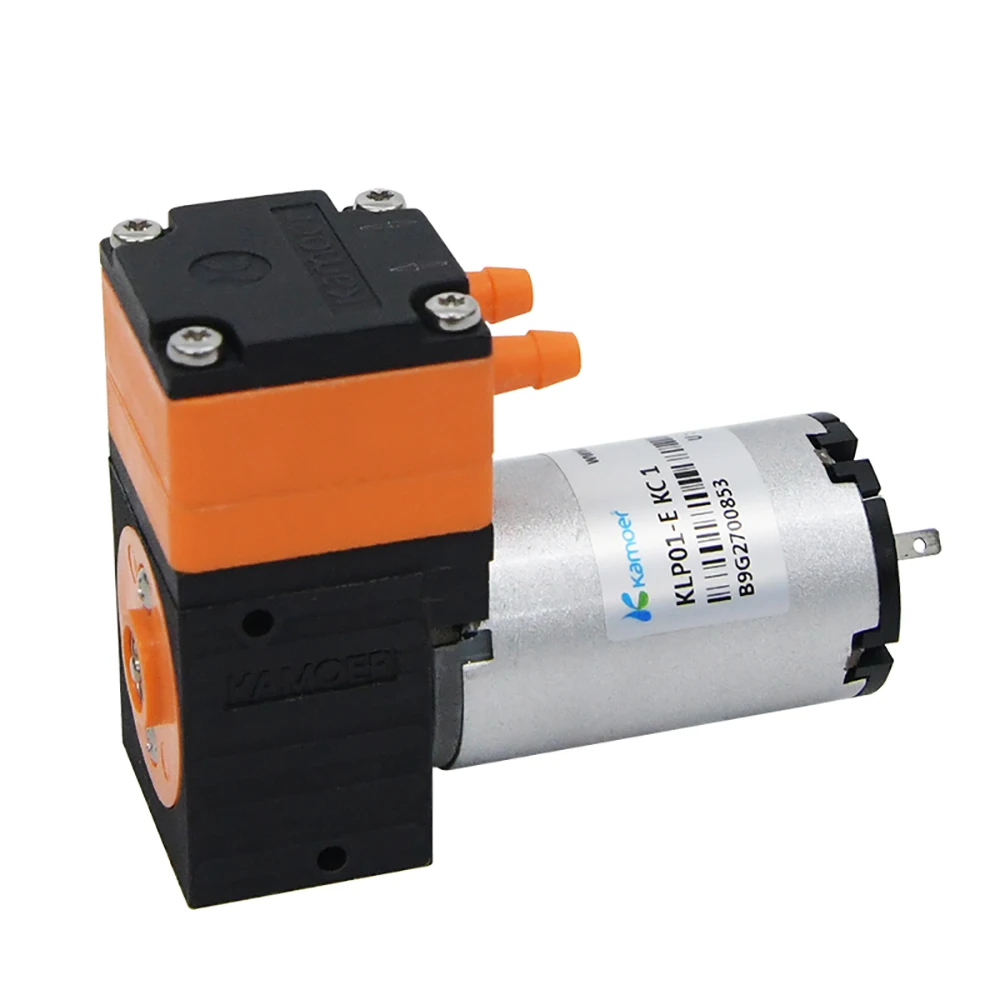

KLP01 Mini DC Brush Diaphragm Liquid Pump
DC Brush Motor Single Head
★ Self-priming
★ Dry running
★ Low power comsumption
★ Low sound level
★ Long lifetime
★ Compact design
★ Small size
★ Corrosive liquid available

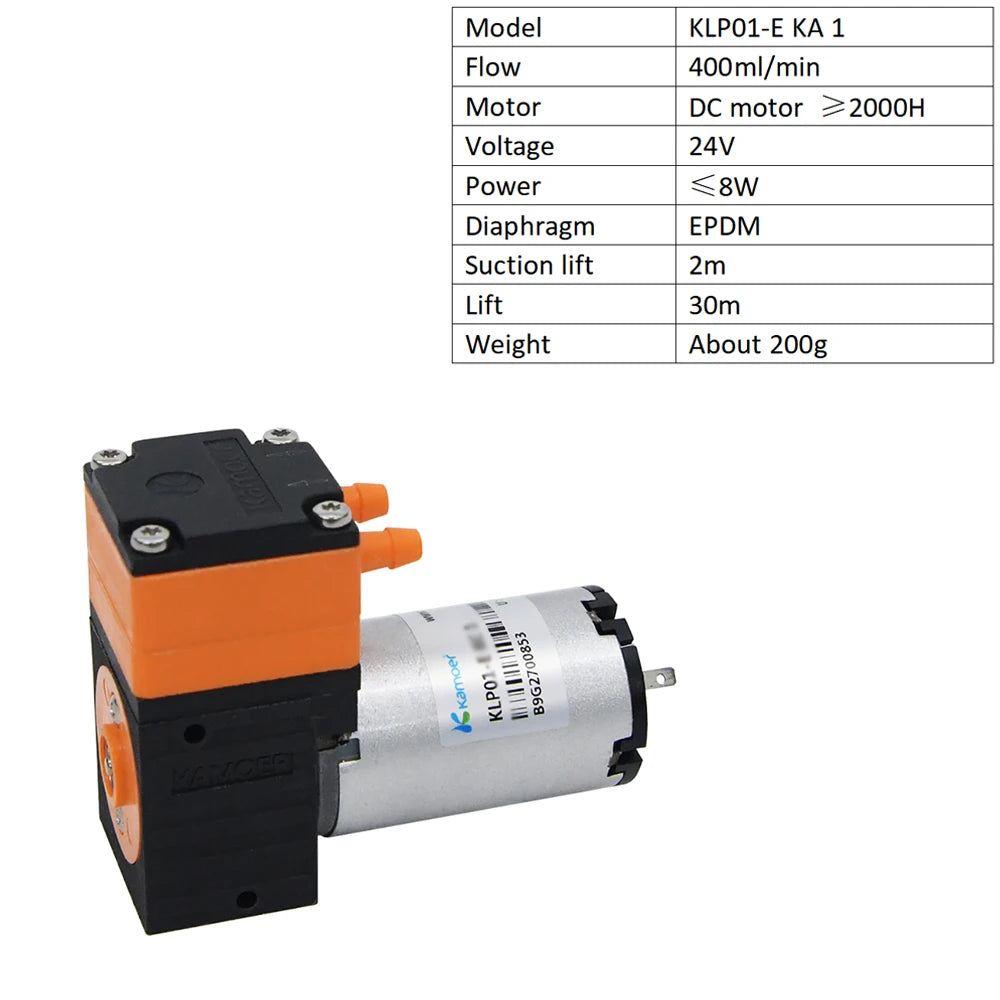

Basic Parameters

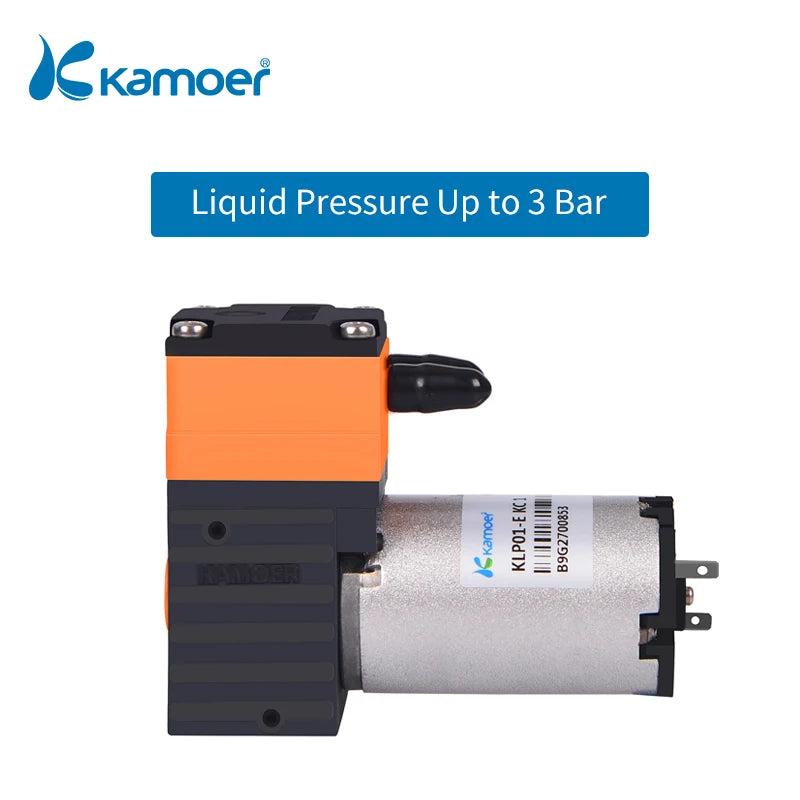

Diaphragm Liquid Pump Liquid Pressure: 3 Bar

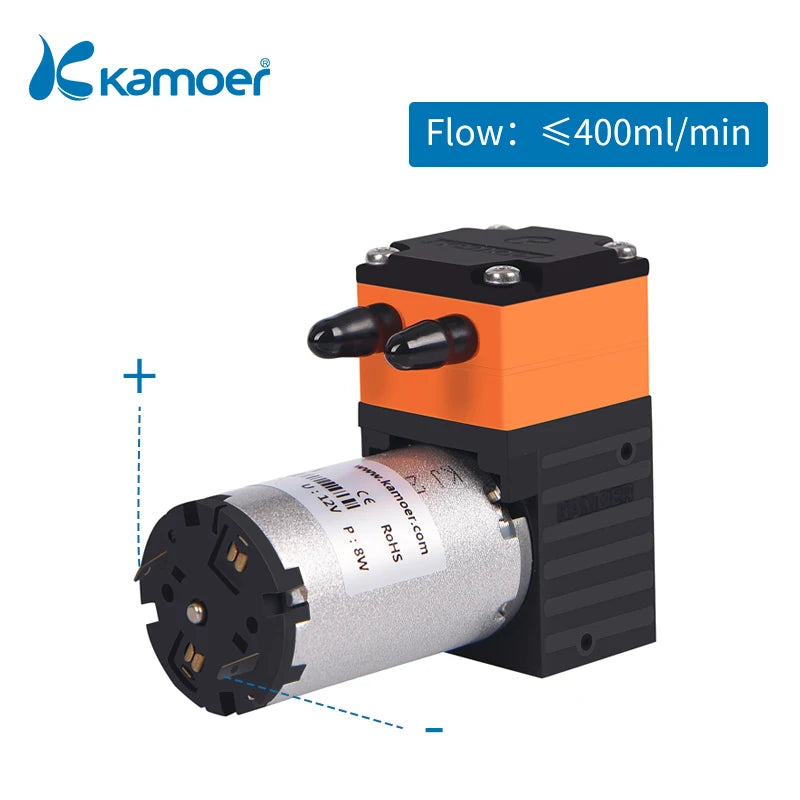

E-EPDM-Over 500ml/min
V-FKM-Over 400ml/min
Diaphragm Liquid Pump Positive Pressure: 0.6bar
Diaphragm Liquid Pump Negative Pressure: 0.5bar
Working temperature 0~40℃
Humidity Less than 80%
Weight 0.4KG
Motor lifetime: 2000H
KC: 12V DC Brush Motor(57mm)
KA: 24V DC Brush Motor(57mm)

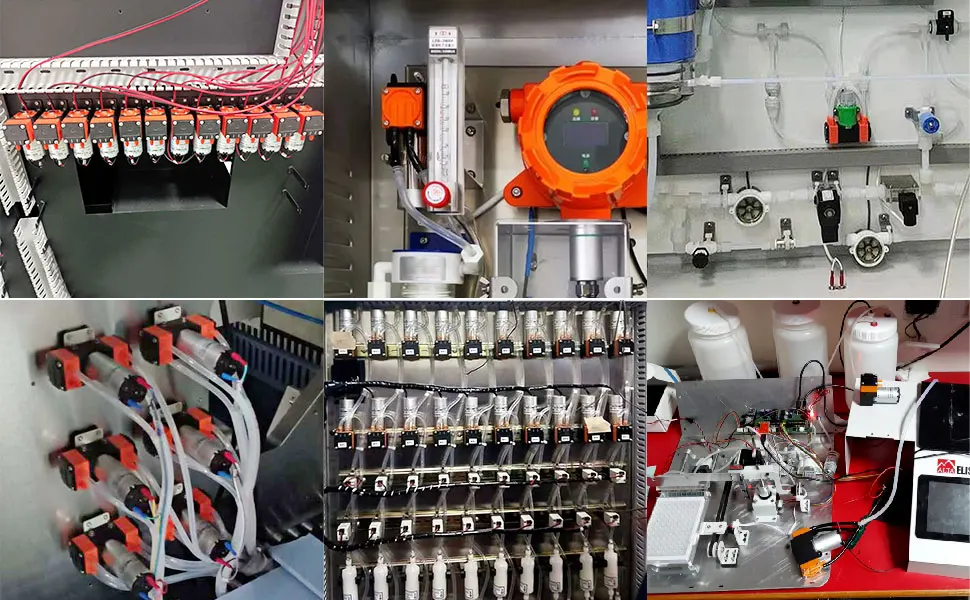

Various Applications
# Experiment
# Liquid dispensing
# Inkjet
# Medical equipment
# Washer machine
# Sewage sampling
Materials of Diaphragm

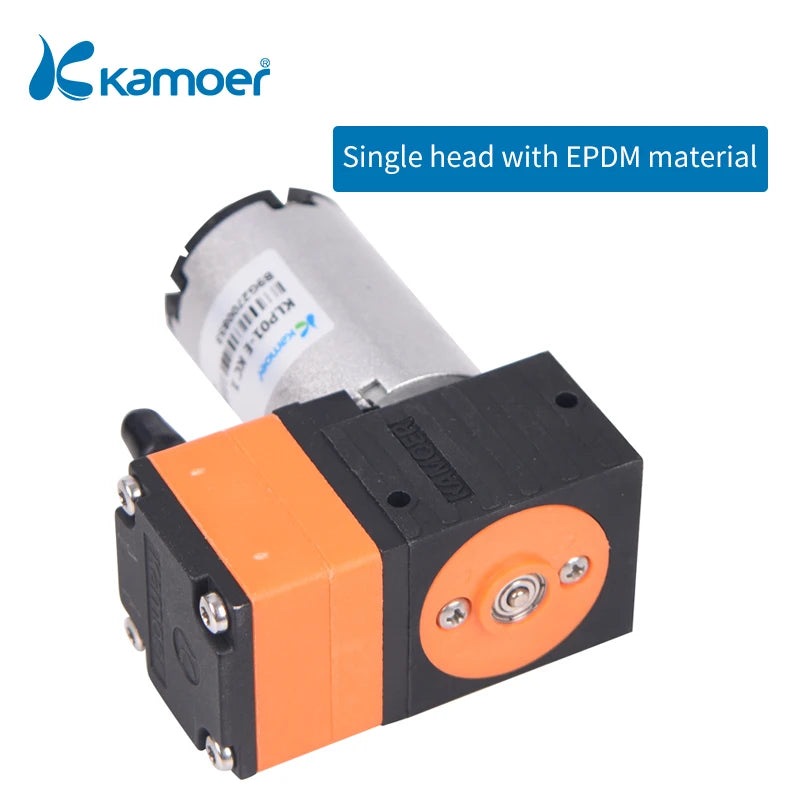

▲ E---EPDM
Decent resistance and tolerance with alcohol, acid, alkali, oxidant, ketone, and grease, etc.Poor oil resistance.
▲ V---FKM
Non-stick, excellent corrosion resistance,shorter life time than EPDM.

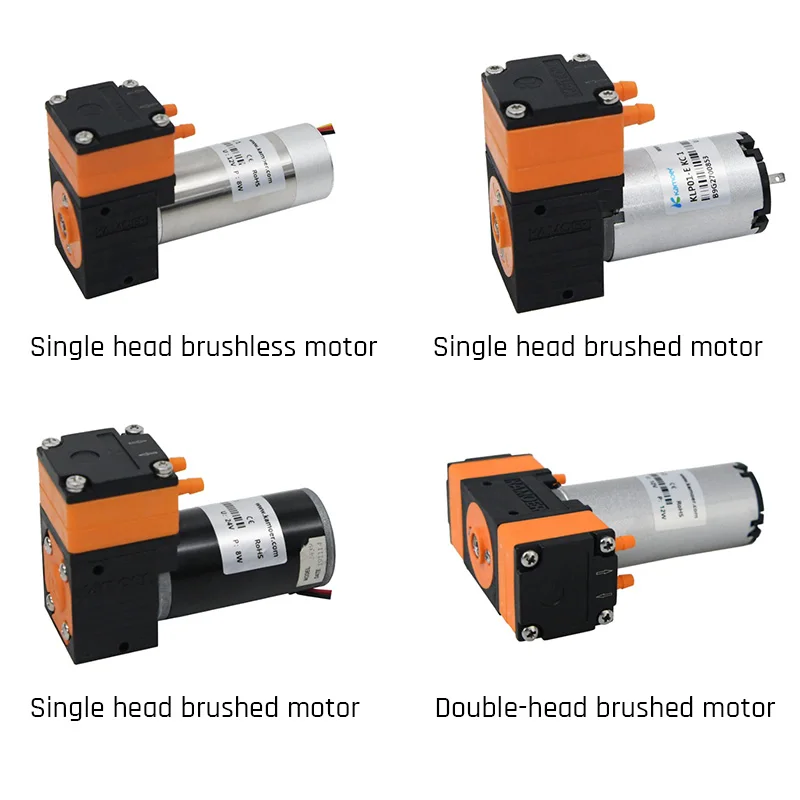

Pogoda Series Description
Single head: Left is brushless motor; Right is brush motor.
Left is brush motor-KLP01-E; Right is Double Head brush motor.

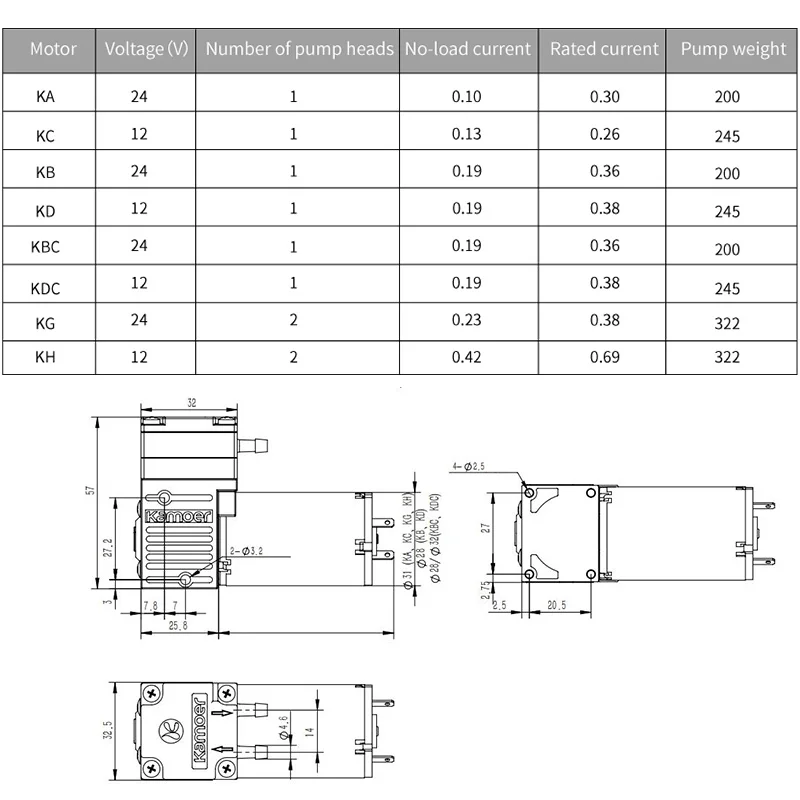

More Details-Dimensions
