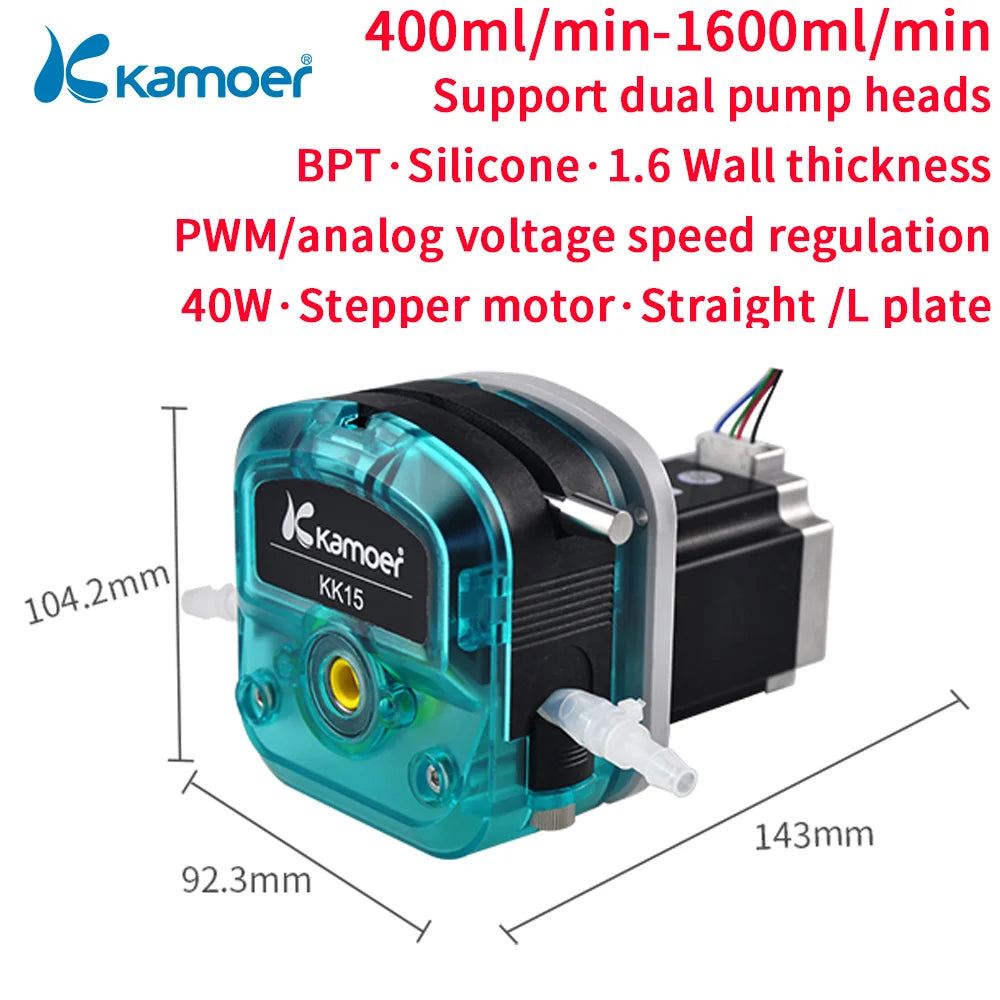

Kamoer 400-1600ml/min KKTS High Flow Peristaltic Pump 24V Stepper Motor Adjustable Speed Dosing Pump with Single/Double Head

KKTS 24V L Type A / S18

₩157,849

1/6

Kamoer 400-1600ml/min KKTS High Flow Peristaltic Pump 24V Stepper Motor Adjustable Speed Dosing Pump with Single/Double Head

₩157,849

Voltage KKTS 24V L Type A Driver board KKTS24V Straight A

Color S18 Modbus B17

SPECIFICATIONS

Application: Metering

Brand Name: kamoer

Certification: CE,RoHS

Fuel: Electric

High-concerned chemical: None

Model Number: KKTS Peristaltic Pump

Origin: China Mainland

Peristaltic Pump Features: Suitable for viscous, non-viscous liquid transport

Peristaltic Pump Flow Rate: 400-1600ml/min

Peristaltic Pump Motor: DC/Stepper motor peristaltic pump

Peristaltic Pump Size: 21*18*12MM

Peristaltic Pump Wight: 1804G

Power (W): Electric

Power Source: Electric

Pressure: Low Pressure

Pump Head: Single Pump head and double pump head

Pump Tube: PharMed BPT (B) and silicone tube (S)

Standard or Nonstandard: Standard

Structure: Gear Pump

The main material: The main material - the pump head is PC plastic, pump body is PA

Theory: Rotary Pump

Usage: Water

KKTS Stepper Motor Peristaltic Pump High Flow

★ Long lifetime
★ High precision
★ Large flow rate

# Suitable for viscous and non-viscous liquid transport
# Quick replacement of pump tube
# A variety of pump tube materials are available

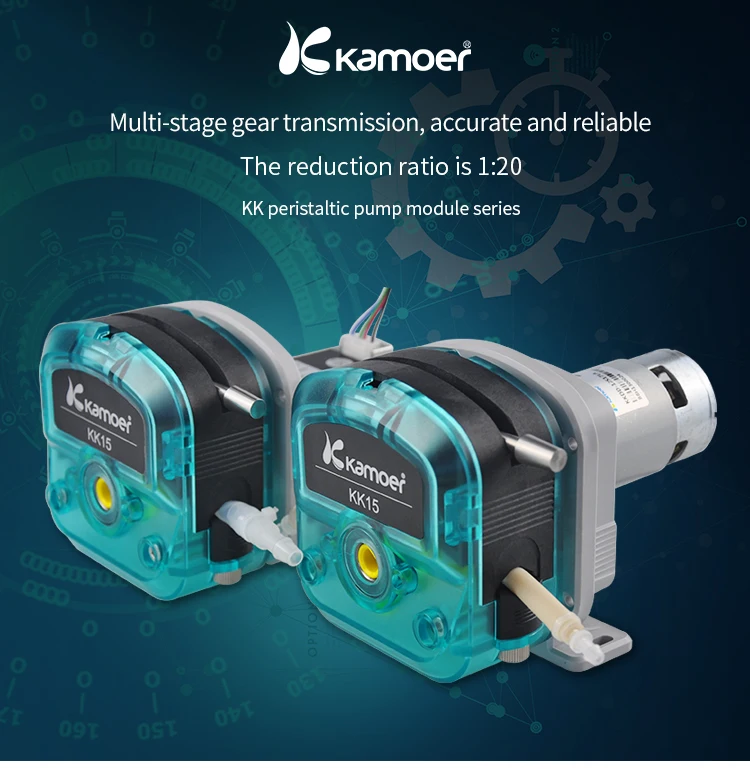

# Gear transmission, high reliability

Basic Parameters

Peristaltic Pump Motor: Stepper motor
Peristaltic Pump Voltage: 24V
Peristaltic Pump Power: 40W
Pump tube: PharMed BPT and silicone tube
Peristaltic Pump Flow rate: ≤1600 ml/min
Pump Head Optional: Single or double head
Pump head: PC and engineering plastics
Mounting plate: Wear plate fixed or L plate
Temperature: 0~40℃
Humidity: Less than 80%

Various Applications

# Canned liquid
# Laboratory
# Food factory
# Medical equipment

More Details

Tube Selection

Silicone ≥200H lifetime
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.
▲ Working temperature: -60℃~200℃
PharMedBPT ≥1000H lifetime
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids.
▲ Working temperature: -51℃~132℃

Flow Rate-Single Head Flow Rate

KKTS-S40-420ml/min (4.0×7.2mm)
KKTS-S25-650ml/min (4.8×8.0mm)
KKTS-S17-1100ml/min (6.4×9.6mm)
KKTS-S18-1600ml/min (7.9×11.1mm)
KKTS-B40-420ml/min (4.0×7.2mm)
KKTS-B25-650ml/min (4.8×8.0mm)
KKTS-B17-1000ml/min (6.4×9.6mm)

Note: The above flow parameters are measured with pure water without pressure at 20℃ room temperature and standard atmospheric pressure. Actually, according to different media, different outlet pressures, DC motor speed errors, etc., the flow will have certain errors. The data is for reference.

Right is KKTS (Stepper motor)
