4-in-pack Kamoer NKP Micro Peristaltic Pump 12V/24V DC Motor Low Flow Dosing Pump with Blue Color, Silicone/BPT Tubing
4-in-pack Kamoer NKP Micro Peristaltic Pump 12V/24V DC Motor Low Flow Dosing Pump with Blue Color, Silicone/BPT Tubing
SPECIFICATIONS
Application: Metering
Brand Name: kamoer
Certification: CE,RoHS
Feature: Peristaltic liquid pump
Fuel: Electric
High-concerned chemical: None
Model Number: NKP Peristaltic Pump
Origin: China Mainland
Peristaltic Pump flow: 90ml/min Max
Peristaltic Pump voltage: 6V 12V 24V
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure,Low
Rotor: 3 rotors
Standard or Nonstandard: Standard
Structure: Gear Pump
Theory: Rotary Pump
Use: Water
is_customized: Yes
Kamoer NKP Micro Peristaltic Dosing Pump 6V/12V/24V

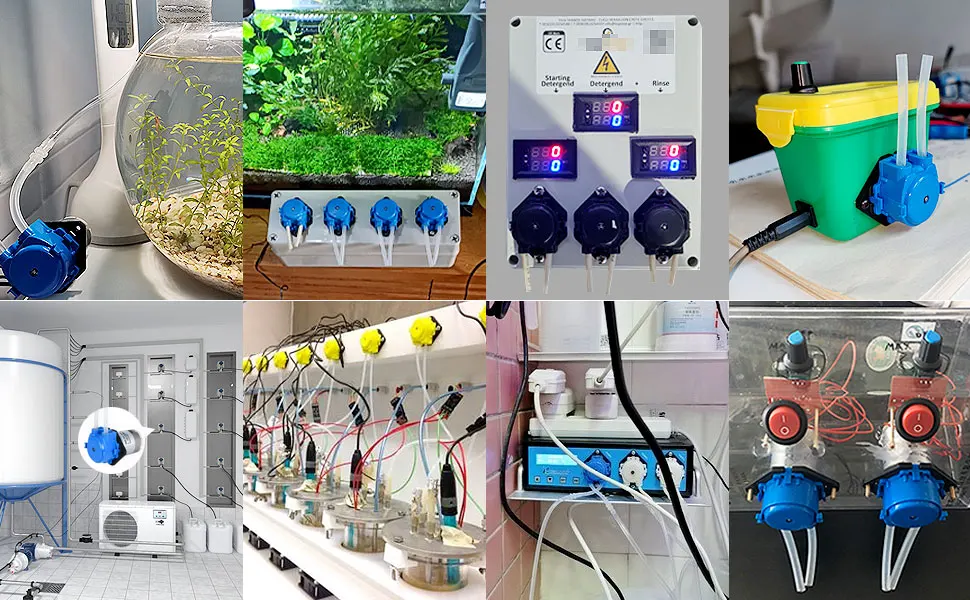

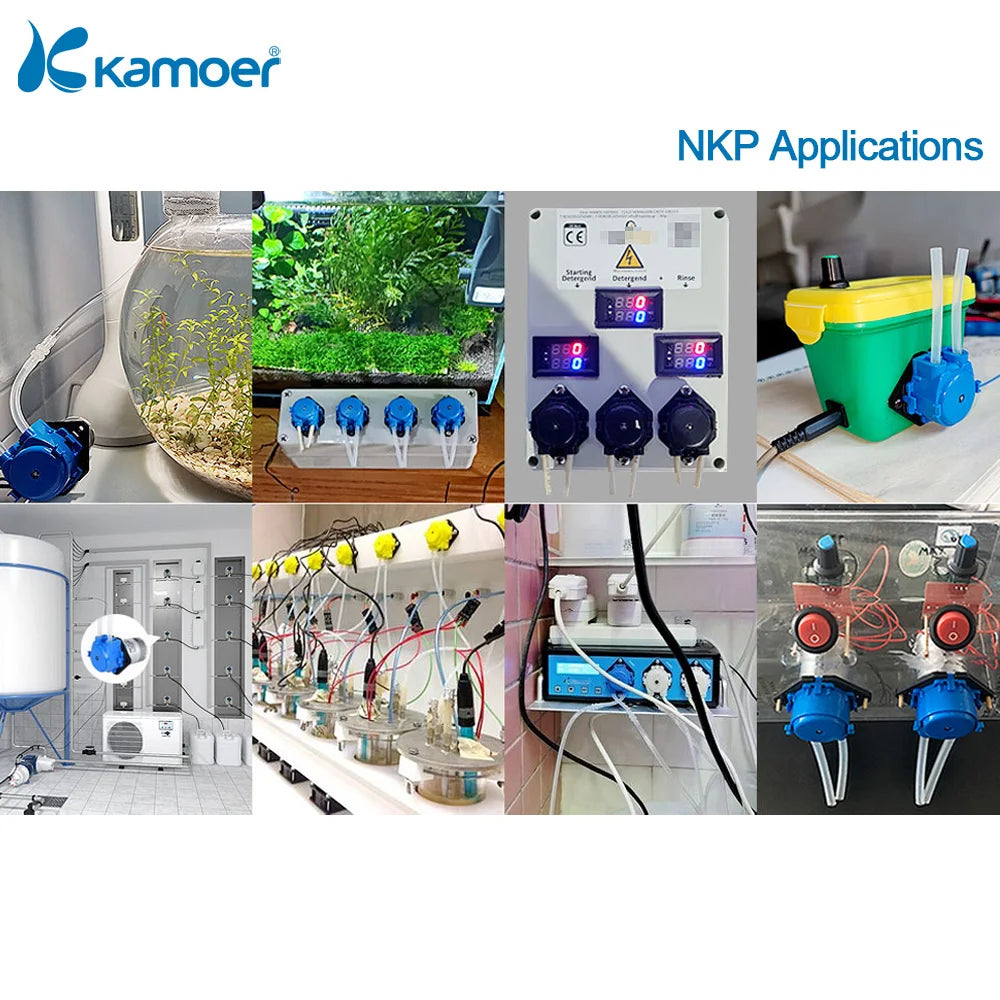

Various Applications
1, Medical usage: for liquid transfer, sampling, dispensing
2, Chemical engineering usage: sample analysis, dispensing liquid
3, Ink printer: for transferring ink, cleaning pipeline
4, Laboratory use: liquid dispensing, extract liquid,
5, Beverage: dispensing, filling
6, Environmental usage: transferring and sampling sewage
7, Factory usage: for liquid dispensing
8, Family usage: watering flower, garden irrigation,high pressure washer
Basic Parameters

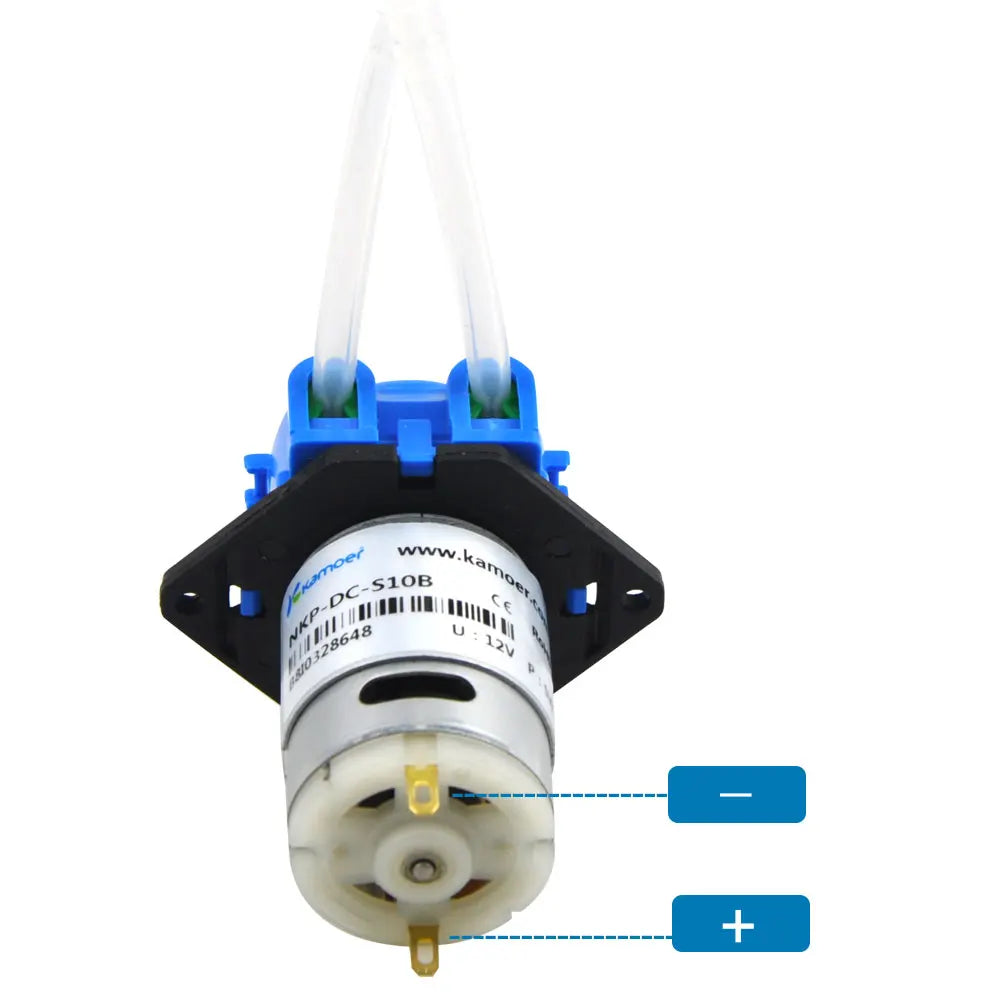

Peristaltic Pump Voltage: 6V/12V/24V DC Motor
Peristaltic Pump Flow: 5.2~90ml/min

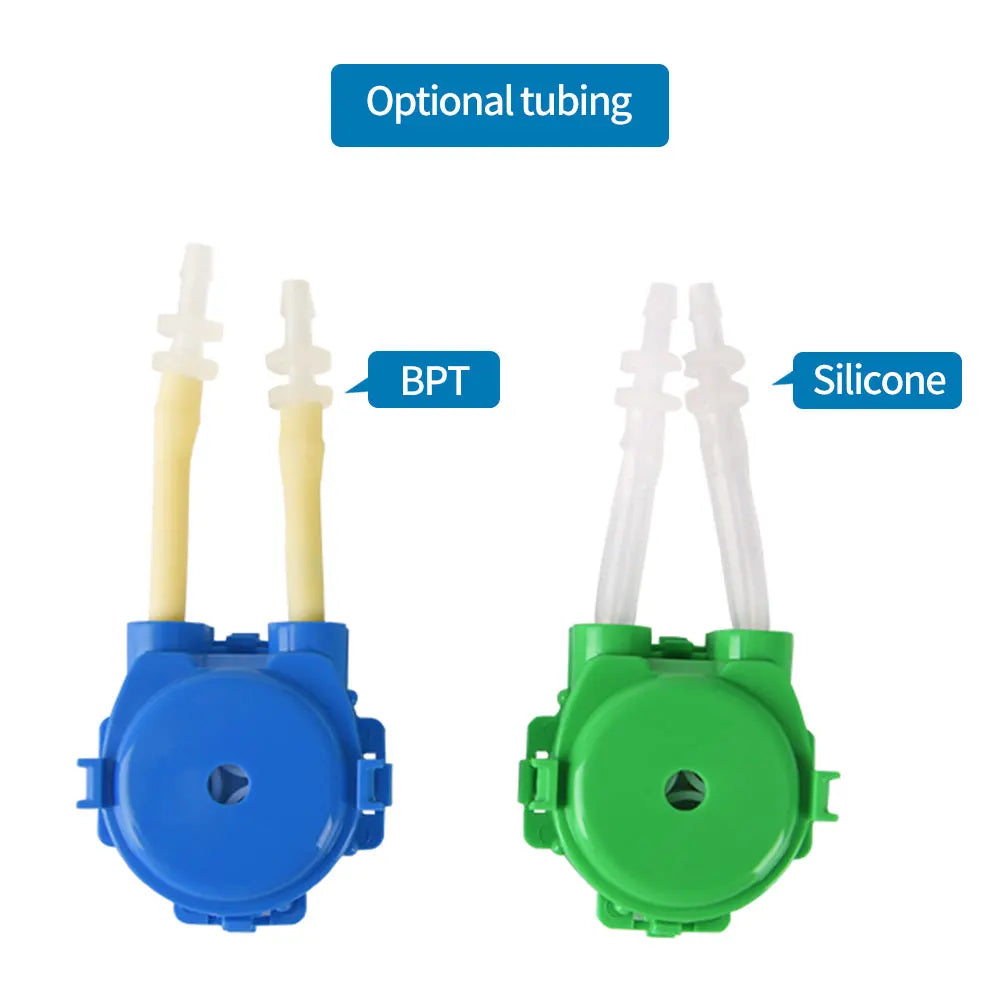

Tube material: Silicon tube/PharMed BPT tube

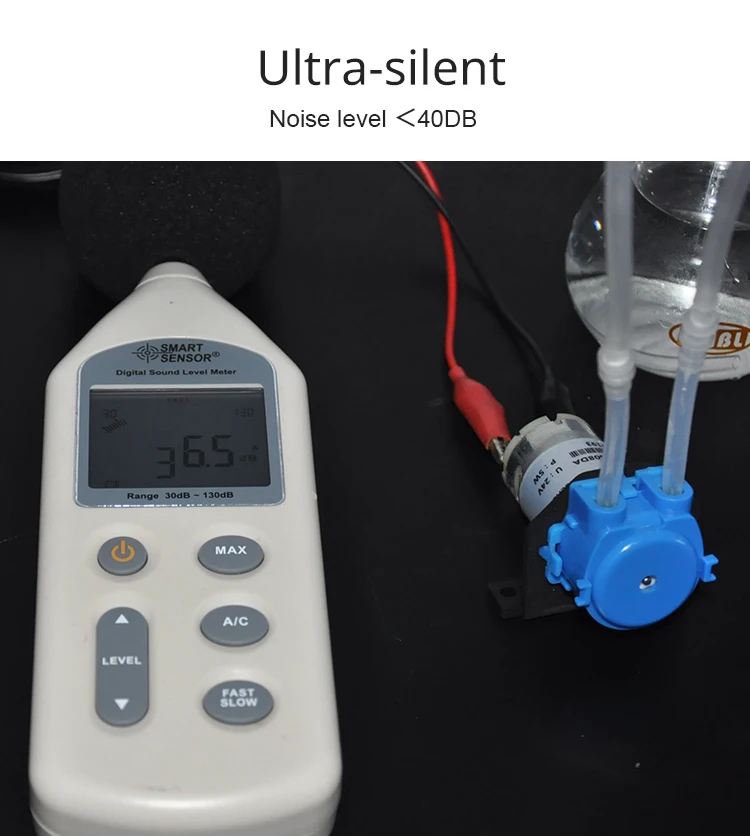

Noise: less than 40dB

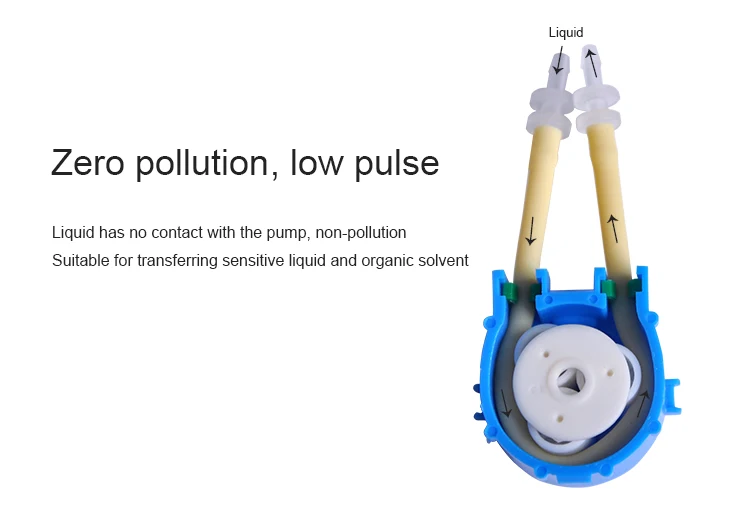

Pulse: three rollers, low pulse
Pump head: engineering plastic
Working environment: temperature 0~40℃
Relative humidity: less than 80%

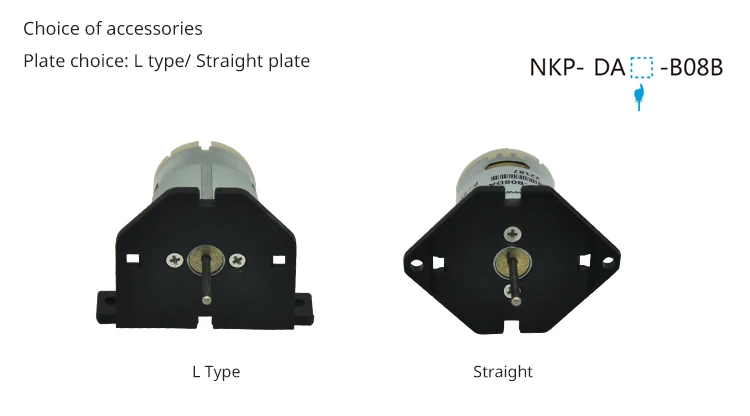

Mounting Plate:S/L

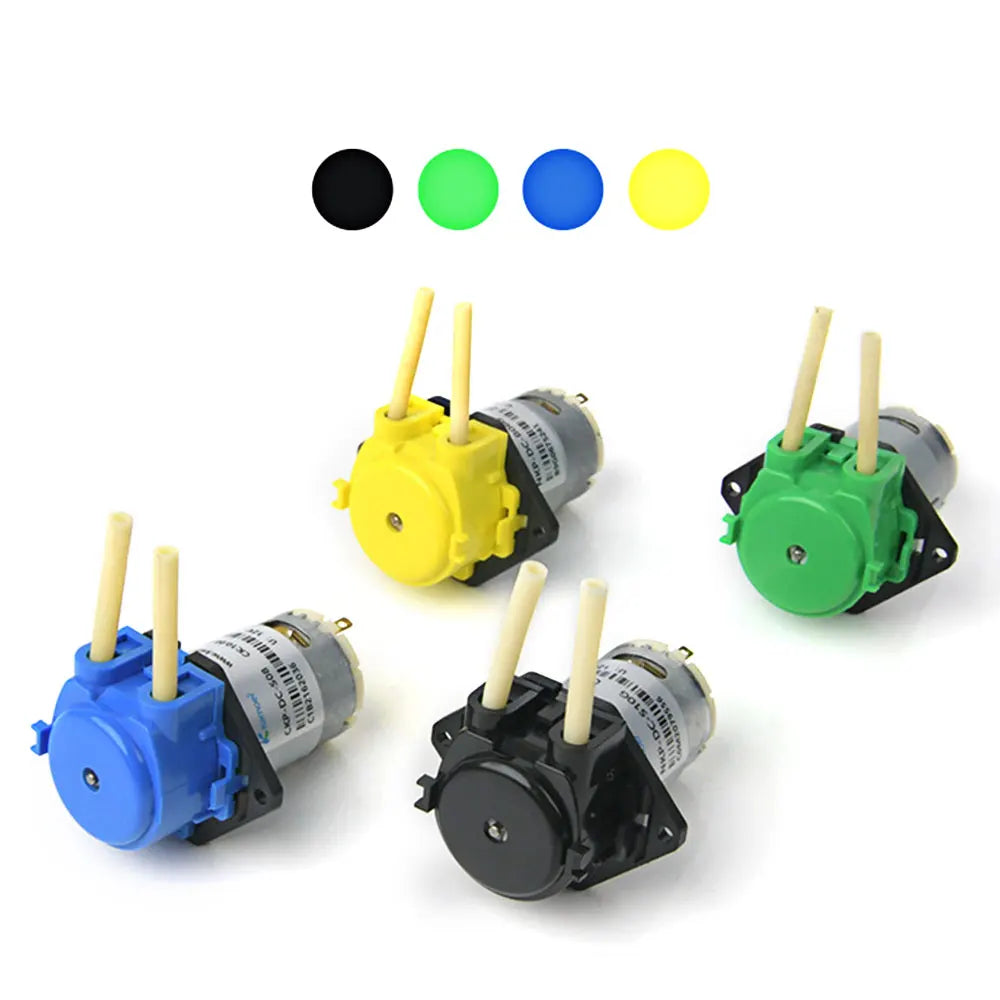

Click here:NKP NEW website---Leave massage about the COLOR you want
Code |
S04 |
S06 |
S08 |
B06 |
B08 |
|
ID*OD |
1.0×3.0 |
2.0×4.0 |
2.5×4.5 |
2.0×4.0 |
2.5×4.5 |
|
Material |
S |
S |
S |
BPT |
BPT |
|
Flow rate |
Motor DA (24V; 0.15A) |
≥10 |
≥38 |
≥59 |
≥34 |
≥48 |
|
Motor DC (12V; 0.25A) |
≥10 |
≥37 |
≥55 |
≥33 |
≥47 |
|
|
Motor DE (6V; 0.35A) |
≥10.5 |
≥36 |
≥60 |
≥38 |
≥48 |
|
