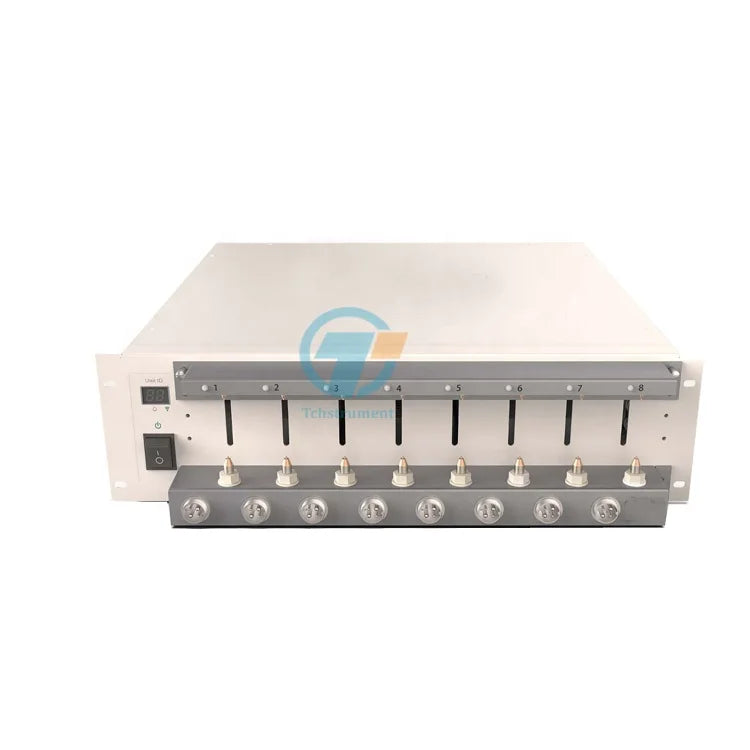

2025 NEWARE 5V12A 8 Channel Battery Testing System Equipment 5mA~1A/1A~6A/ 6A~12A Charge/discharge Tesing for 3C Battery test
2025 NEWARE 5V12A 8 Channel Battery Testing System Equipment 5mA~1A/1A~6A/ 6A~12A Charge/discharge Tesing for 3C Battery test
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Installation Method: Assembly
Origin: Mainland China
Product name: Muti Ranges 5V12A 8 channel Battery Testing System
brand name: neware
customized support: OEM
place of origin: Henan, China
warranty: 1 Year

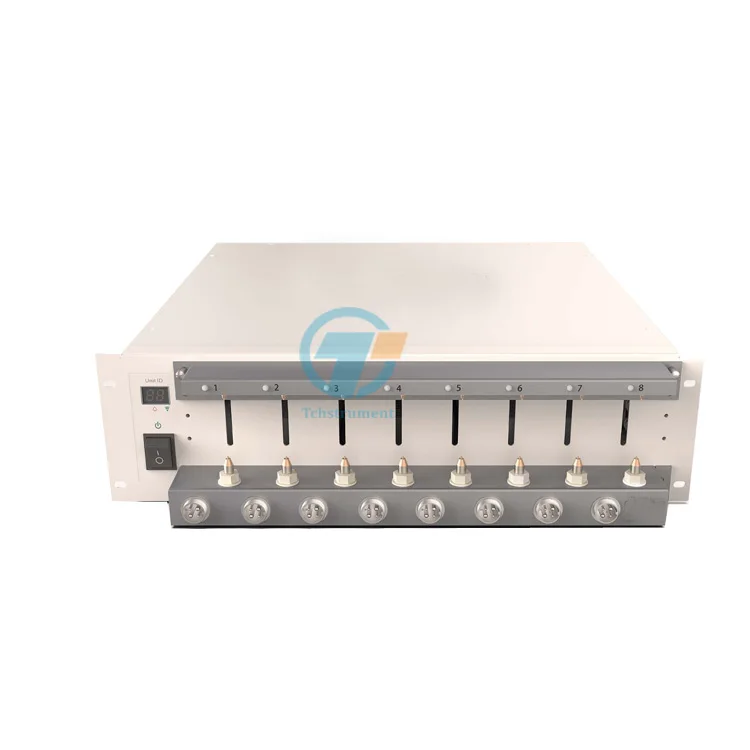

Muti Ranges 5V12A 8 channel Battery Testing System Equipment 5mA~1A/1A~6A/ 6A~12A for 3C battery test
CT-5V12A, which is in modular and simple structure, offering ultra-high precision, high performance and high sampling charge/discharge tesing systems for 3C battery test.
Specification :
| Description |
|
Product Specification |
| AC Input Resolution Input Impedance Power Channel Features Channels |
|
AC 220V ±10% / 50Hz AD:16bit;DA:16bit ≥ 1MΩ 826W independent pairs of closed loop for constant current source and constant voltage source Independent Control |
| Voltage |
Voltage Range per Channels Lowest Discharge Voltage Accuracy Stability |
25mV~5V 2V(Equipment Voltage<30V,Line in 2m); ± 0.05% of FS ± 0.05% of FS |
| Current |
Current Range per Channels Accuracy Stability |
Range 1:5mA-1A;Range 2:1A-6A;Range 3:6A-12A ± 0.05% of FS; ± 0.05% of FS; |
| Data Acquisition |
Intervals
Frequency |
Time Interval t:≥100ms Voltage Interval U:≥10mV Current:Range 1:2mA;Range 2:12mA;Range 3:24mA 10Hz |
| Charge |
Charging mode End Conditions |
CCC/CC&CVC/CVC/CPC Voltage,Current,Test Time,Capacity,-V |
| Discharge |
Discharging mode End Conditions |
CCD/CPD/CRD/Pulse Voltage, Current, Test Time, Capacity,-V |
| pulse |
Charge Discharge Min Pulse Width pulse number End Condition |
CCC CCD 500ms Automated switch from charge to discharge for each pulse Voltage, Test Time |
| DCIR Testing |
|
Support for custom fetch to calculate DCIR |
| Cycle |
Cycles Steps Nested Function |
1~65535 times 254 Max three levels of loops |
| Protective Function |
Software |
Power-off data protection Off-line Operating User-defined safety (upper and lower) tolerance of current, voltage and delay time,The parameters can be set including: voltage upper / voltage limit/ current upper/ current limit/ delay time / capacity limit Reverse-connecting protection |
| Detection and Sampling Data Management Communication means Exports formats Communication Interface No. of Channels Per Cabinet Dimensions (W*D*H)(mm) Holders Server Operating System
|
4-wire Connecting MySQL Database TCP/IP protocol(100M Ethernet) EXCEL2003,2010,TXT Network Interface According to the power and demand 1U/3U/3U1F/3U2F/3U3F/12U/18U/24U/30U/36U(Optional ) Confirm the actual product Windows 7 |
|

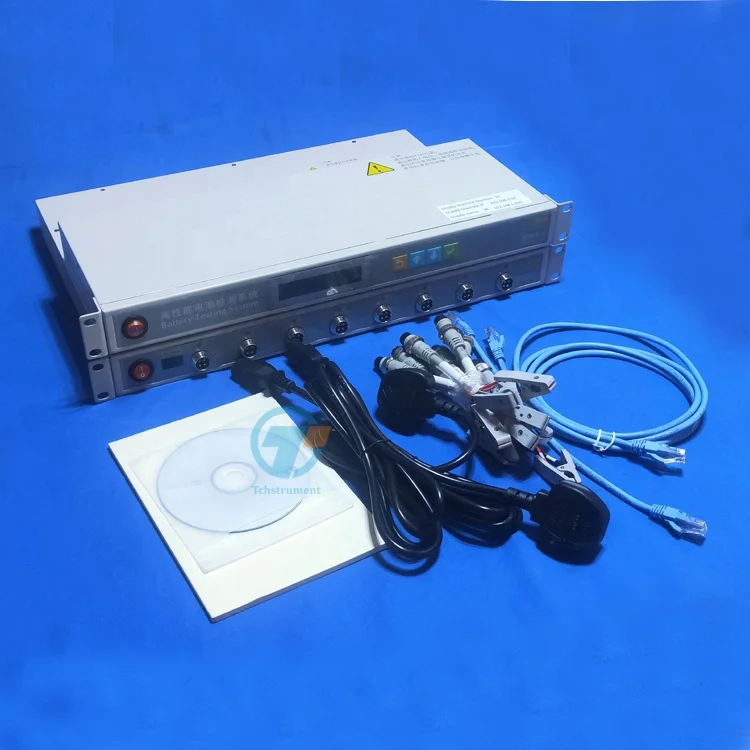

reference of the Muti Ranges 5V12A 8 channel Battery Testing System Equipment 5mA~1A/1A~6A/ 6A~12A for 3C battery test
other related products for your choice
8 Channel Battery Analyzer ( 5uA-1mA /1mA-10mA/ 10mA-20mA, upto 5V)
