Kamoer 400ml/min KPHM400 Peristaltic Pump 24V Stepper Motor High Precision Self-priming Pump Adjustable Speed Dosing Pump BPT
Kamoer 400ml/min KPHM400 Peristaltic Pump 24V Stepper Motor High Precision Self-priming Pump Adjustable Speed Dosing Pump BPT
SPECIFICATIONS
Application: Metering
Brand Name: kamoer
Certification: CE,RoHS
Feature: for viscous and non-viscous liquid transport
Flow rate: 400ml/min
Fuel: Electric
High-concerned chemical: None
Humidity: Less than 80%
Model Number: KPHM400 ST
Motor: Stepper motor
Origin: China Mainland
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure
Pump head material: Nylon
Roller: 3 rollers
Standard or Nonstandard: Standard
Structure: Peristaltic Pump
Theory: Rotary Pump
Tube choice: PharMed BPT 4.8*8mm
Usage: Water
Voltage: 24V
Working Temperature: 0-40℃
KPHM400 400ml/min 24V Stepper Motor Peristaltic Dosing Pump
★ Suitable for the transfer of viscous and non-viscous liquids
★ Compact structure and high maintainability
★ A variety of pump tube materials are available
Basic Parameters
Motor: Stepper motor
Voltage: 24V
Flow rate: KPHM400-400ml/min
Roller: 3 rotors
Working Temperature: 0-40℃
Humidity: ＜80%
Pump head material: Nylon
Various Applications
# Experimental Research
# Experimental Monitoring
# Inkjet.Printing
# Aquarium
# Smart Home
# Aviation Operation

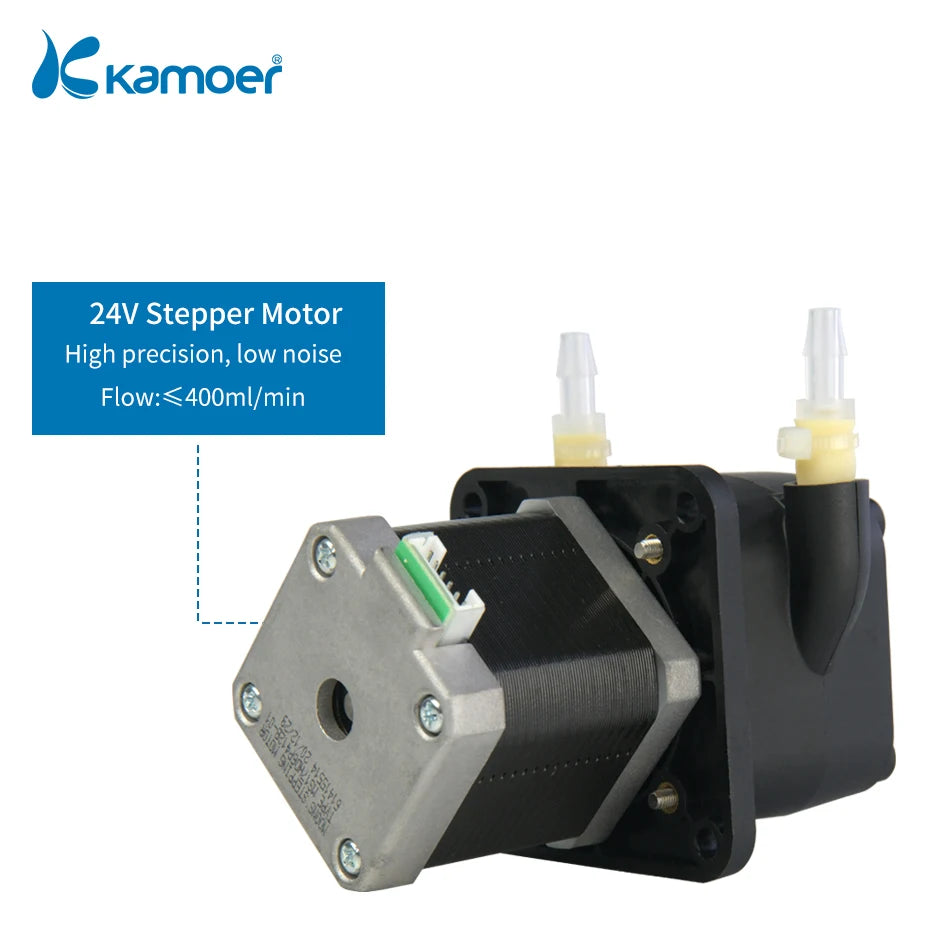

Powerful Stepper Motor- 6000Hs
Original Bull Head Structure Design
3-rotor Pump Head with BPT tubing
More stable
Tubing will not easliy slip out.
Micro size & Easy to carry
Stepper motor needs a driver board to run

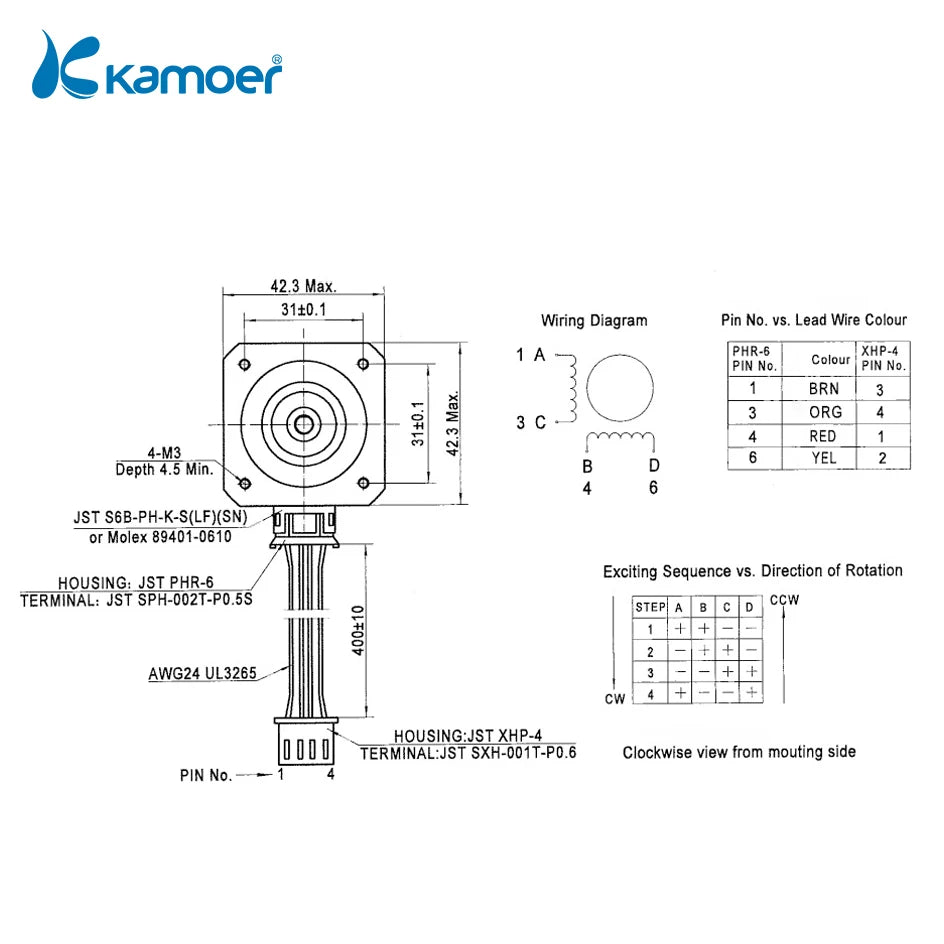

Wires Description
Here is some choice for you.
4460.5

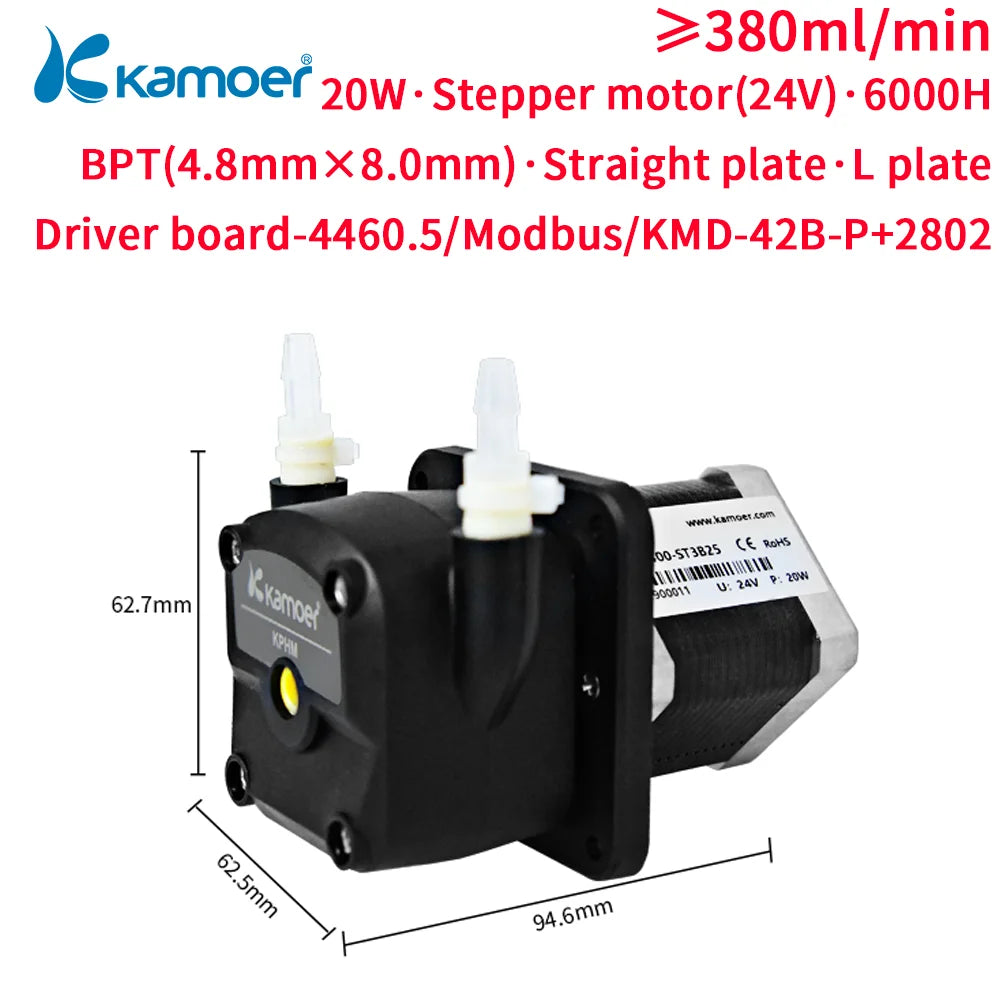

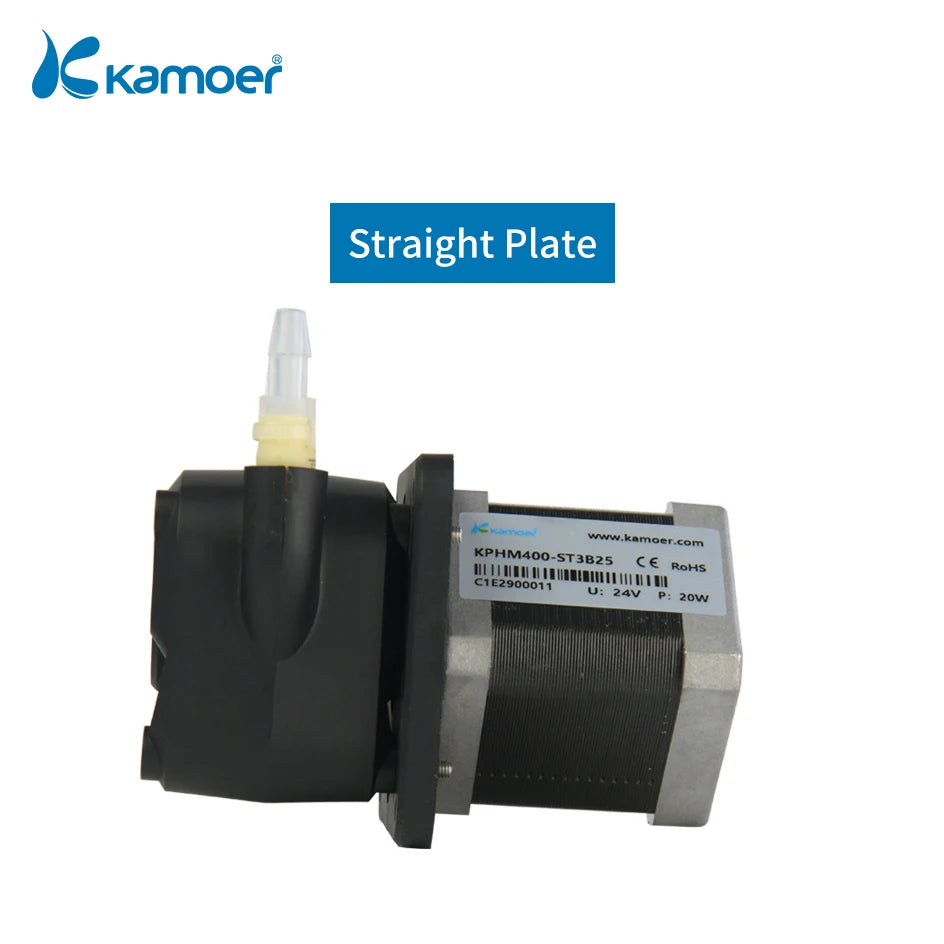

Dimension-KPHM400 Straight plate
Updating
Suggestion for Hole Size
Contact us if any question.
We are always at your service!
Waiting for your order.
