SPECIFICATIONS

Brand Name: NONE

Color classification: Volume 25ml-25ml ,50ml-50ml ,100ml-100ml

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Model: PTFE H type exchangeable membrane sealed electrolytic cell

Origin: Mainland China

place of origin: Chinese mainland

Product Information

PRODUCT INFORMATION

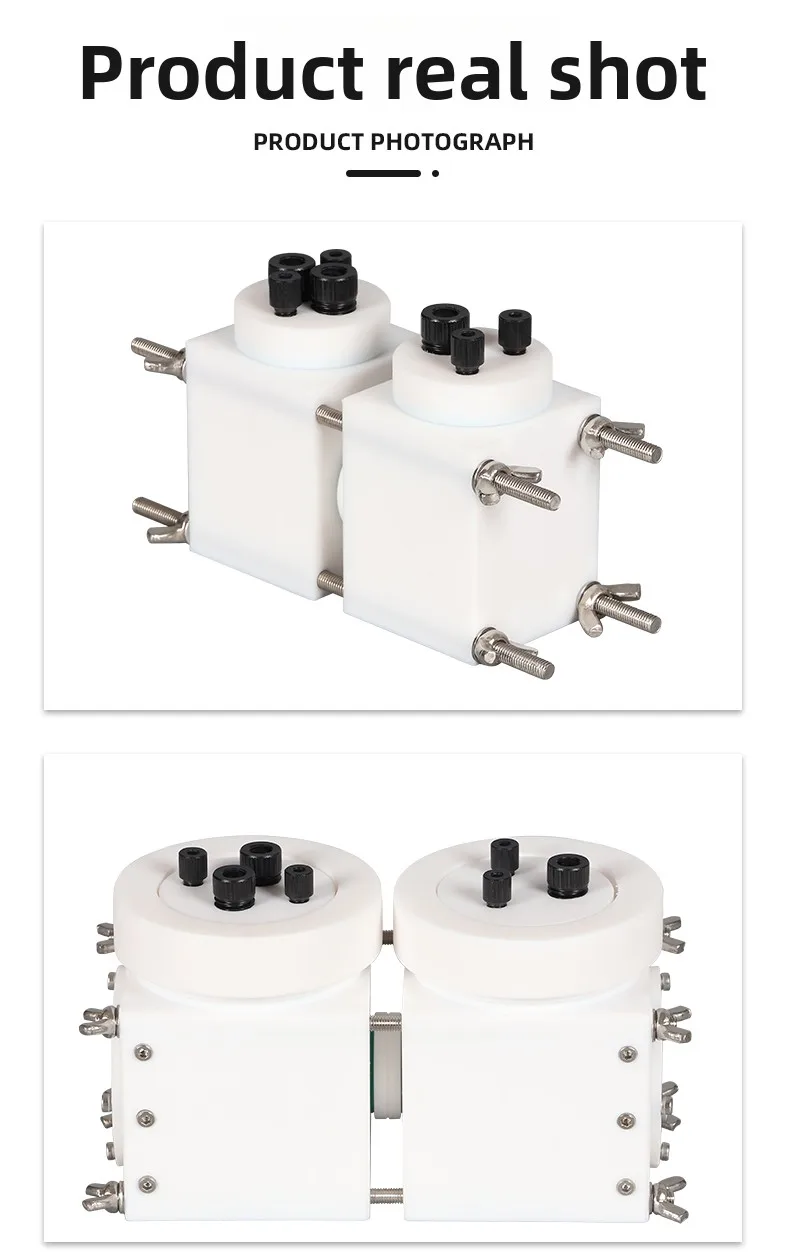

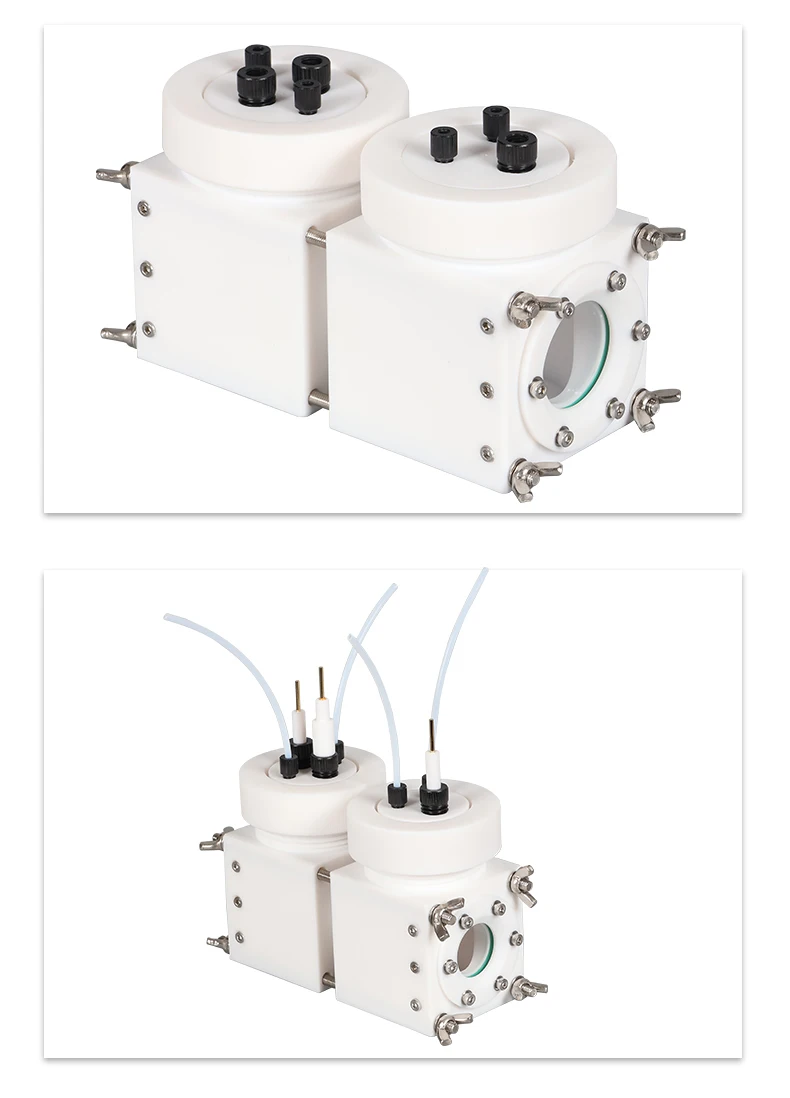

Product Name: H - Type PTFE Optical Membrane - Replaceable Electrolysis Cell

Product Features:
(Electrodes not included; electrodes in photos are for demonstration only)
For matching three electrodes (working electrode, counter electrode, reference electrode) and proton membrane, please consult customer service.

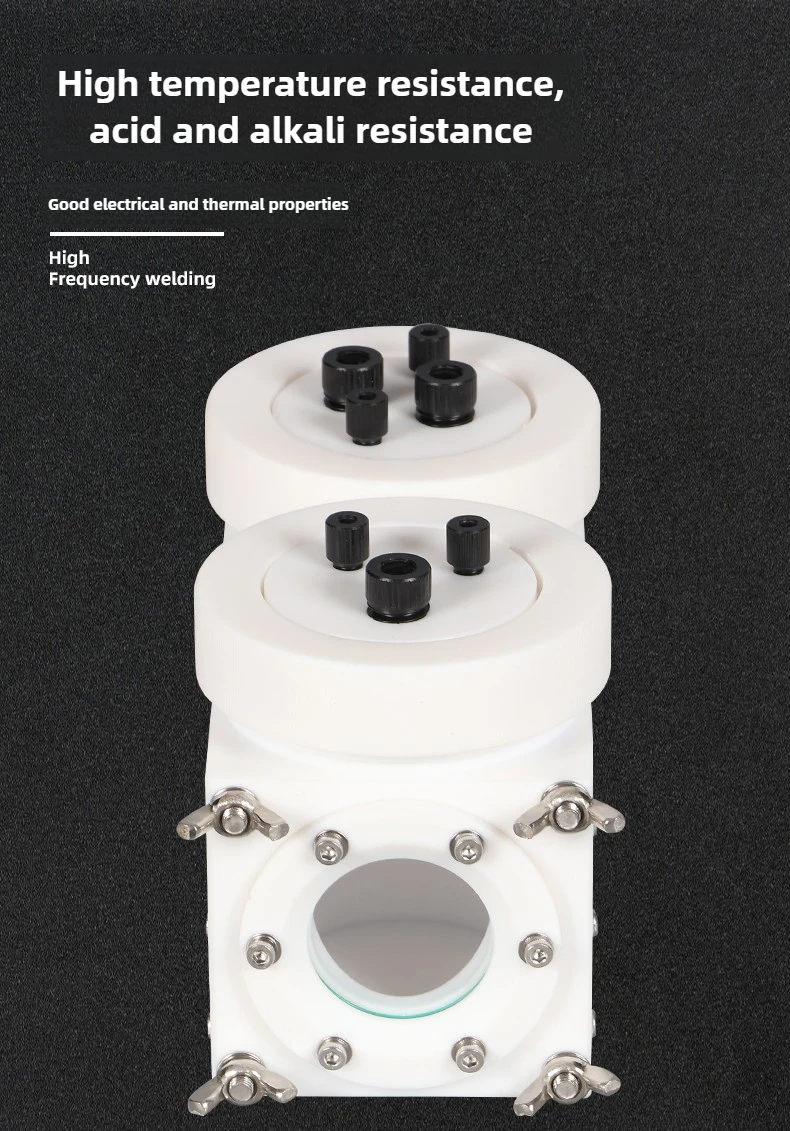

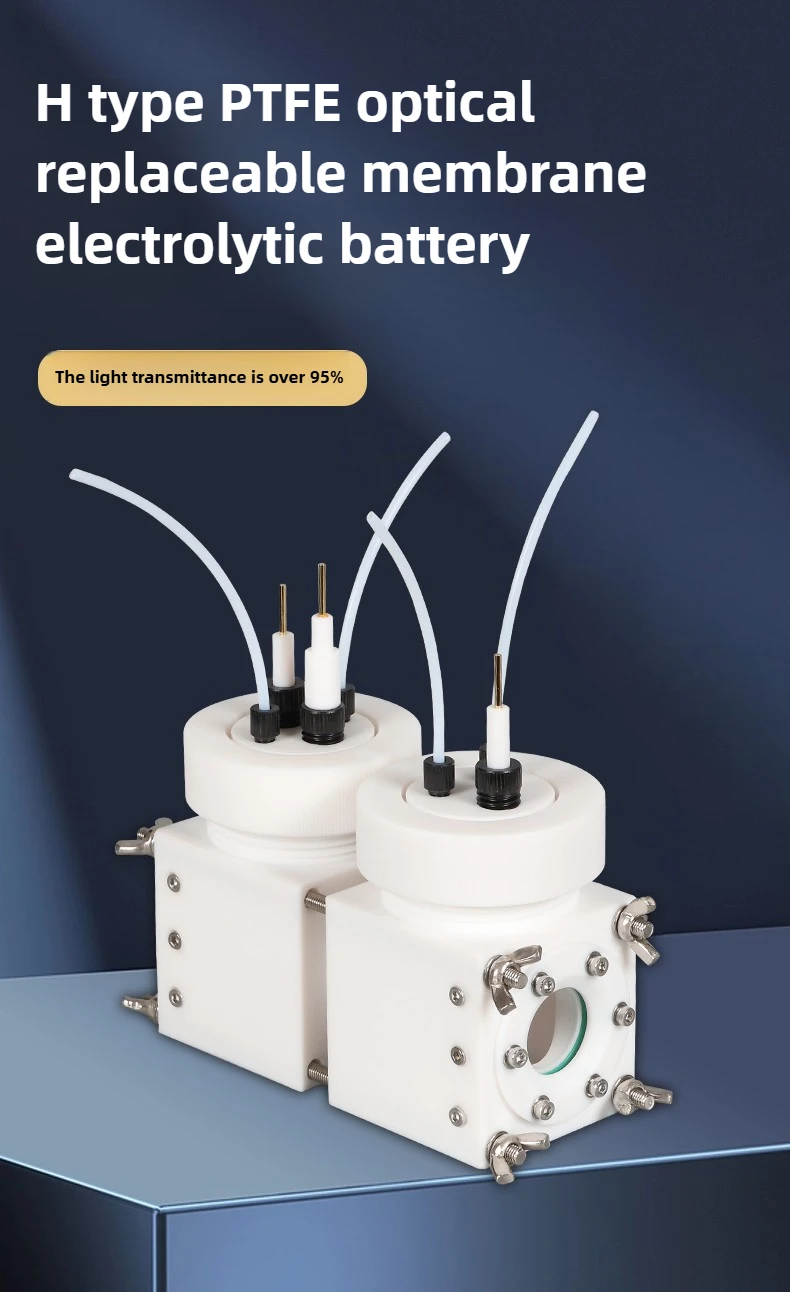

All - PTFE structure + quartz optical window, light transmittance over 95%, resistant to high temperature, corrosion, acid and alkali.
It is a relatively sealed electrolysis cell system. The cathode chamber (working electrode) and anode chamber (counter electrode) are separated by a proton membrane (provided by the user).
The two chambers are hermetically connected by bolts, facilitating the replacement of the diaphragm. The reference electrode and the working electrode are in the same chamber, effectively reducing IR drop.

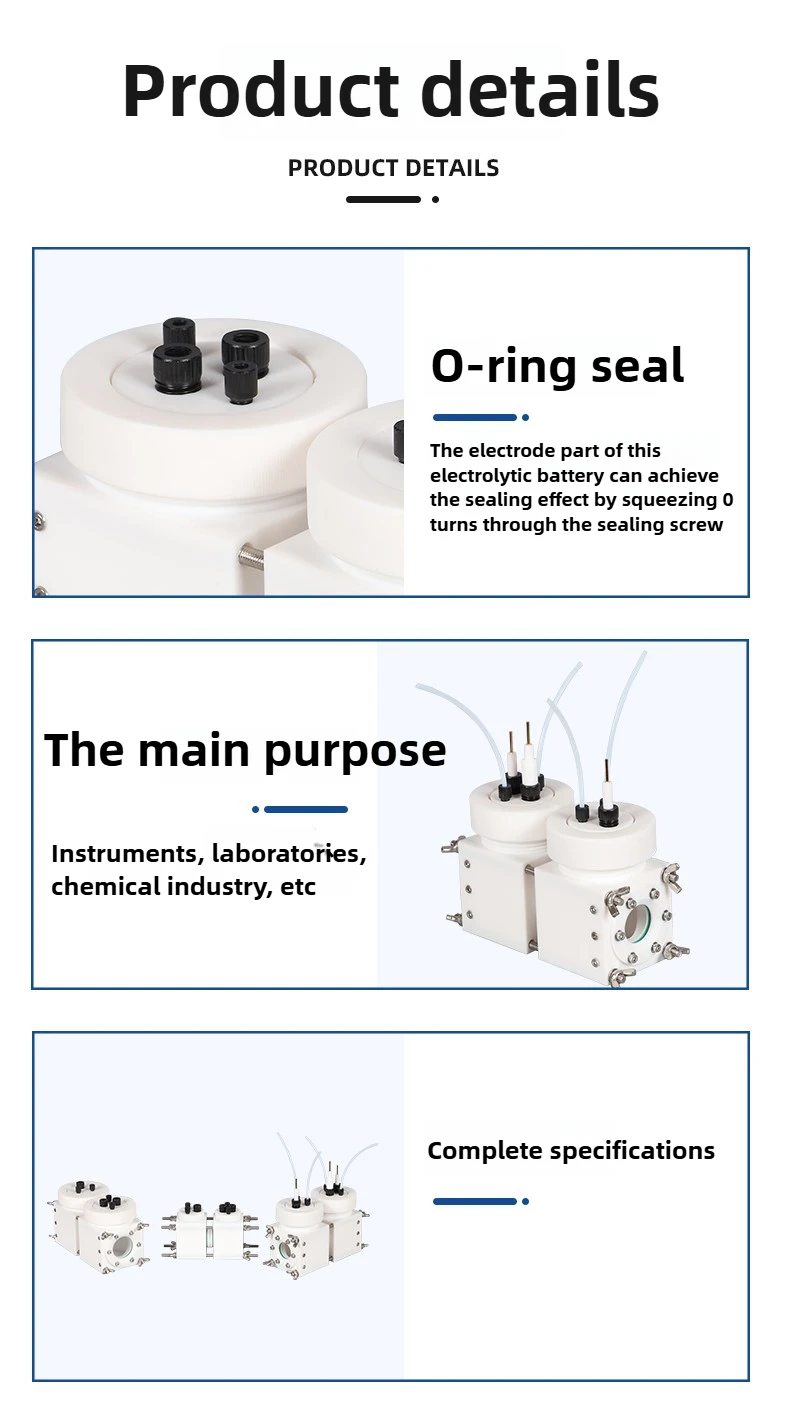

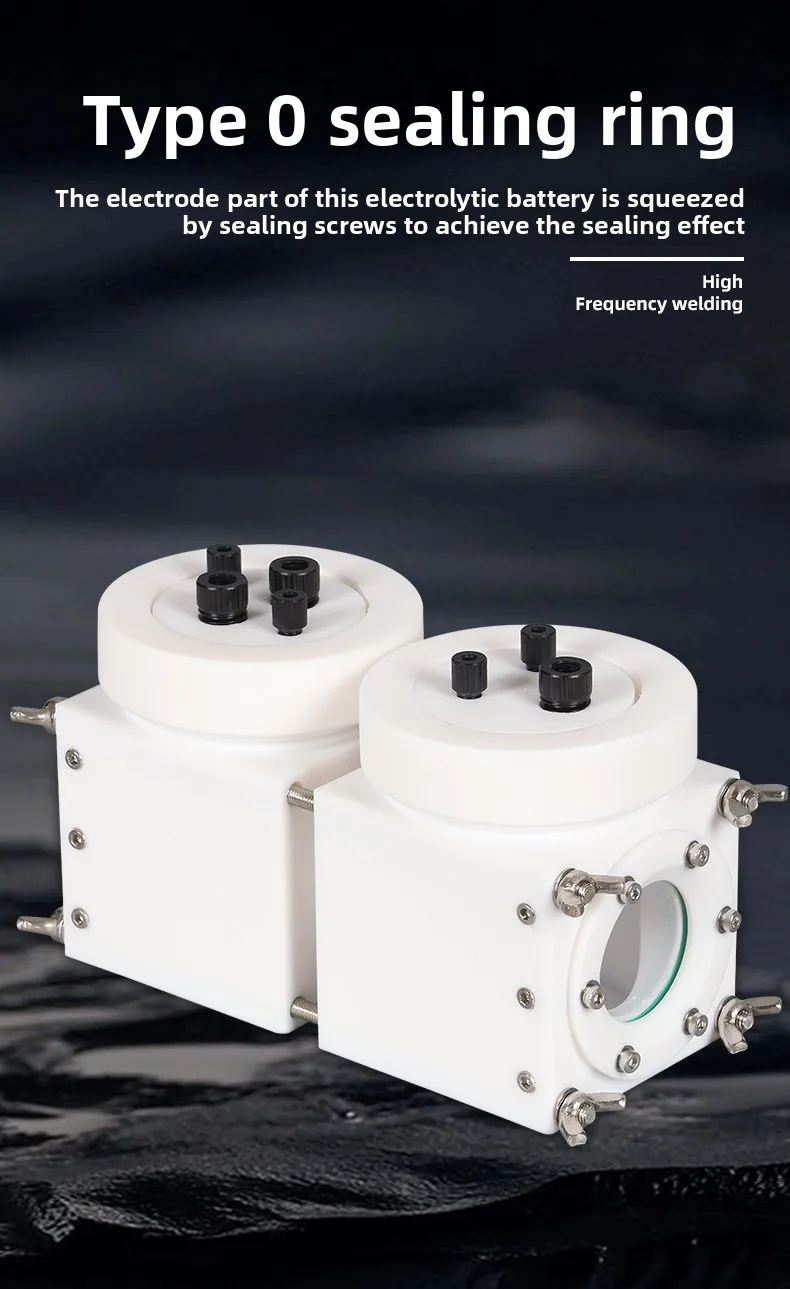

The electrode part of the electrolysis cell achieves a sealing effect by squeezing an O - ring with a sealing screw.
The inner core of the cover of the electrolysis cell uses PTFE that can rotate 360 degrees, enabling the electrode to accurately correspond to the optical window channel (usually the electrode is parallel to the optical window).
For electrode holes and air holes, solid threaded plugs are provided. Unused holes can be sealed with this accessory, facilitating the operability of sealing the electrolysis cell.
