SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Model: Freudenberg H23 series
Origin: Mainland China
Product name: Hydrophobic microporous carbon paper
Type: Other
place of origin: Other overseas regions
Freudenberg H23C2/H23C3/H23C6/H23C8/H23C×653 Carbon Paper
Freudenberg H23C2
Freudenberg H23C2 is a flexible and easy to use carbon paper Gas Diffusion Layer (GDL) with a Microporous Layer (MPL). It is recommended for highly humidified stationary PEMFC systems and High Temperature PEM. It is 255 um thick.
Freudenberg H23C2 is recommended for:
- Highly humidified stationary Low Temperature Polymer Electrolyte Fuel Cell Cells (LT-PEMFC) systems
- High Temperature Polymer Electrolyte Fuel Cells (HT-PEMFC)
Freudenberg H23C2 is formerly known as H2315 C2.
Freudenberg H23C3

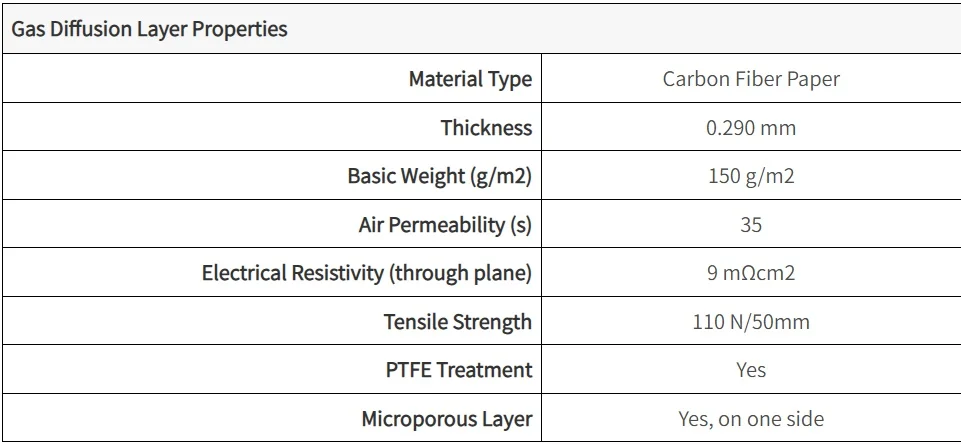

Freudenberg H23C3 is a flexible and easy to use carbon paper Gas Diffusion Layer (GDL) with a Microporous Layer (MPL) as well as a hydrophobic treatment. It is recommended for low humidity systems, open cathode designs and air systems. It is 290 um (microns) thick.
Freudenberg H23C3 is recommended for:
- Power densities up to 0.5A/cm2
- Stationary CHP Low humidified cathodes
- Low Temperature Polymer Electrolyte Fuel Cell (LT-PEMFC) Backup, Air-cooled, and Off-Grid applications
Freudenberg H23C3 is formerly known as H2315 I2 C3.
Freudenberg H23C6 is recommended for:
- Highly humidified stationary Low Temperature Polymer Electrolyte Membrane Fuel Cell Cells (LT-PEMFC) systems
- Highly humidified LT-PEMFC Stationary CHP applications
- LT-PEMFC Automotive applications
Freudenberg H23C6 is formerly known as H2315 I2 C6.

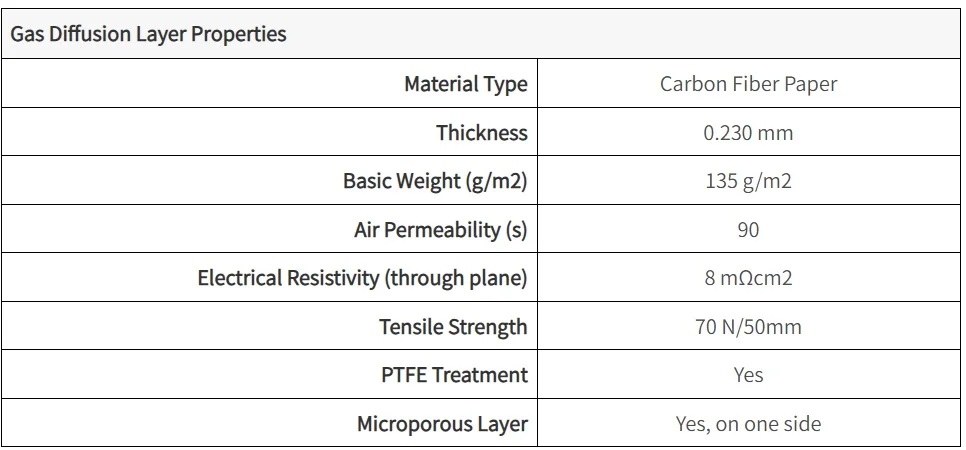

Freudenberg H23C8 is a flexible and easy to use carbon paper Gas Diffusion Layer (GDL) with a Microporous Layer (MPL) as well as a hydrophobic treatment. It is recommended for low humidified automotive LT-PEMFC systems. It is 230 um (microns) thick.
- Low humidified stationary Low Temperature Polymer Electrolyte Membrane Fuel Cell Cells (LT-PEMFC) systems
- LT-PEMFC Automotive applications
Freudenberg H23Cx653

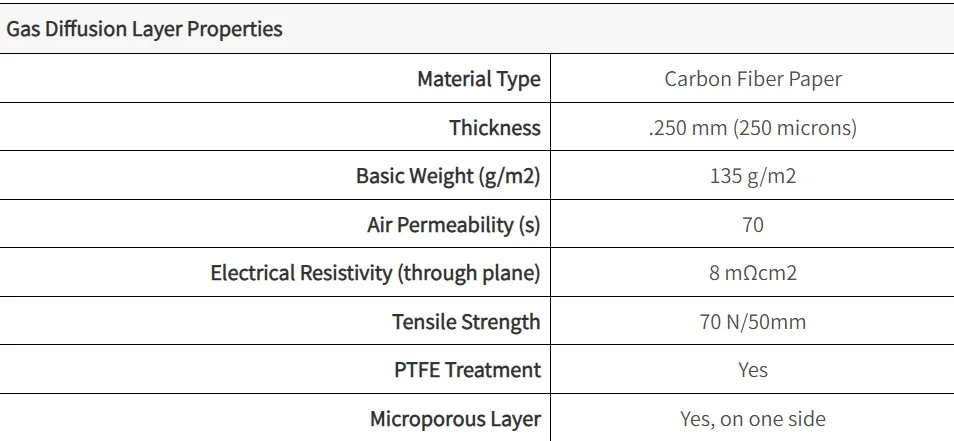

Freudenberg H23Cx653 is a flexible and easy to use carbon paper Gas Diffusion Layer (GDL) with a Microporous Layer (MPL) as well as a hydrophobic treatment. It is 250 um (microns) thick.
Freudenberg H23Cx653 is recommended for:
- LT-PEMFC Automotive applications
