Specification

Application Note:

1. Male straight connector need to match with female connector of same thread.

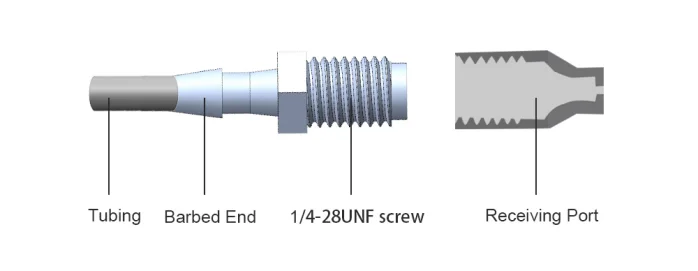

2. One-Piece Fittings Installation Steps:

a. Choose same female thread connector or receiving port

b. Insert the male screw side into the receiving port until it bottoms out.

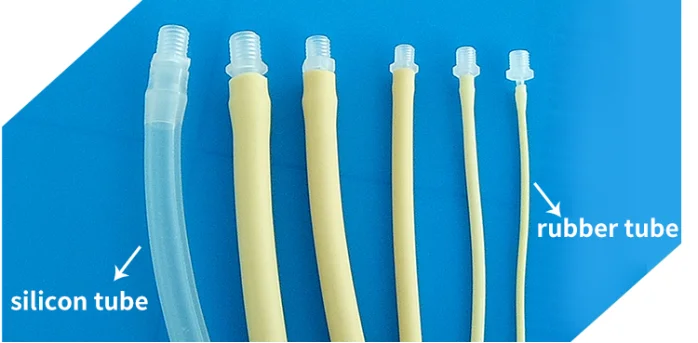

c. Connect the barb end side with soft tubing

d. After several uses (especially at high pressure) the male straight connector should be replaced.

Important Shopping Guidance:

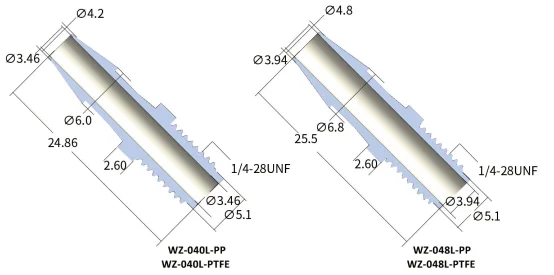

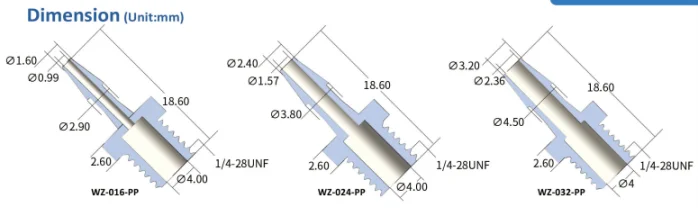

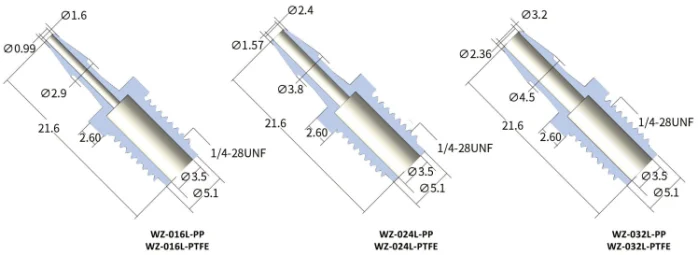

1. RUNZE male straight connector = 1/4-28UNF male + barbed end = OD1.6/2.0/2.5/3.0/3.175/3.2mm hard tubing = ID1.0-5.0 soft tubing = PP or PTFE material, please choose right collocation for your application.

2. PP material is for non-corrosive and weak corrosive liquid; PTFE is for strong corrosive liquid.

3. Unit price is for 10pcs

4. Weight for 10pcs is set as 1 kg, because we hope to send by faster delivery TNT, UPS or FedEx with 4-7working days to most countries, even you choose China post or Ali-express premium shipping, but it should be based on the shipping cost you paid is enough for above mentioned delivery way.

5. For customers from Russia, we usually ship by CDEK or PONY line.

6. For customers from Ukraine and Kazakhstan, some shipping way is available while some is not, we will call you and leave you message to inform you to cancel the order when not available.

7. For customers from some countries such as Iran, Israel, South Africa etc. where shipping is not easy, we will try best to ship by the way you chosen, we will call you and leave you message to inform you to cancel the order when not available.

8. For customers from Brazil, Chile and Argentina, please leave us a remark or message with your tax number on your order which is a must and necessary requirement from shipping agent.

9. Please leave on the order with your 100% correct contact name, address, zip code, phone number and country code, or we can’t get contact with you when your order have problems.

10. Ali-express will charge us 8% - 10% commission charge, so please try not bargain because we only receive part of your order amount, if you need to place a bigger order, please contact us for better price.

11. If you need to order several products together, please add them to your shopping cart and forward them together but NOT pay it, we will help you combine shipping cost.

12. Any questions on your order, please leave us message, we will handle it for you as soon as possible, greatly appreciated if you give us feedbacks before open an issue.

13. Greatly appreciated if you leave us 5 star positive feedbacks once received your order, which will surely encourage us to do better in future cooperation.

Collocated RUNZE Connectors

1. Female straightconnector

2. Straight soft hard docking connector

3. Elbow soft hard docking connector

4. Female Y connector

5. Female cross connector

6. Bulkhead union
