Edge Sealing & Sealing Films for Fuel Cell PEM, AEM and Water Electrolysis - PEN & PPS Adhesive Films
  • Edge Sealing & Sealing Films for Fuel Cell PEM, AEM and Water Electrolysis - PEN & PPS Adhesive Films
Edge Sealing & Sealing Films for Fuel Cell PEM, AEM and Water Electrolysis - PEN & PPS Adhesive Films

Edge Sealing & Sealing Films for Fuel Cell PEM, AEM and Water Electrolysis - PEN & PPS Adhesive Films

₩86,310
Color

SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Origin: Mainland China

material: Pen base film + film

Specification type：

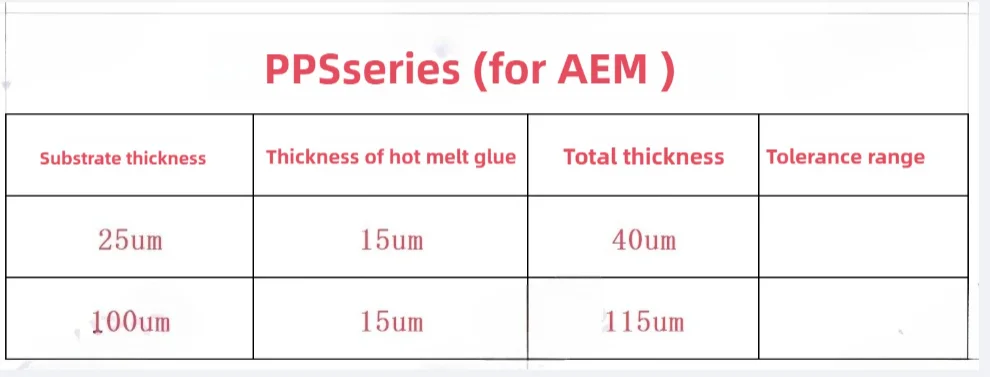

Type 1 : AEM Alkaline PPS Membrane: 25μm + 15μm (10 pieces)
Type 2: AEM Alkaline PPS Membrane: 100μm + 15μm (10 pieces)

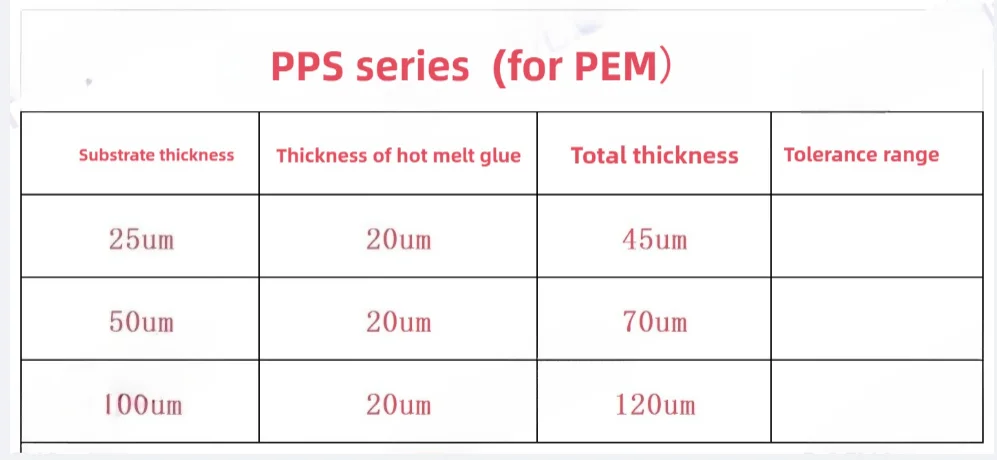

Type 3：PEM Specialized PPS Base Membrane: 25μm + 20μm Coating (10 pieces)
Type 4：PEM Specialized PPS Base Membrane: 50μm + 20μm Coating (10 pieces)
Type 5：PEM Specialized PPS Base Membrane: 100μm + 20μm Coating (10 pieces)

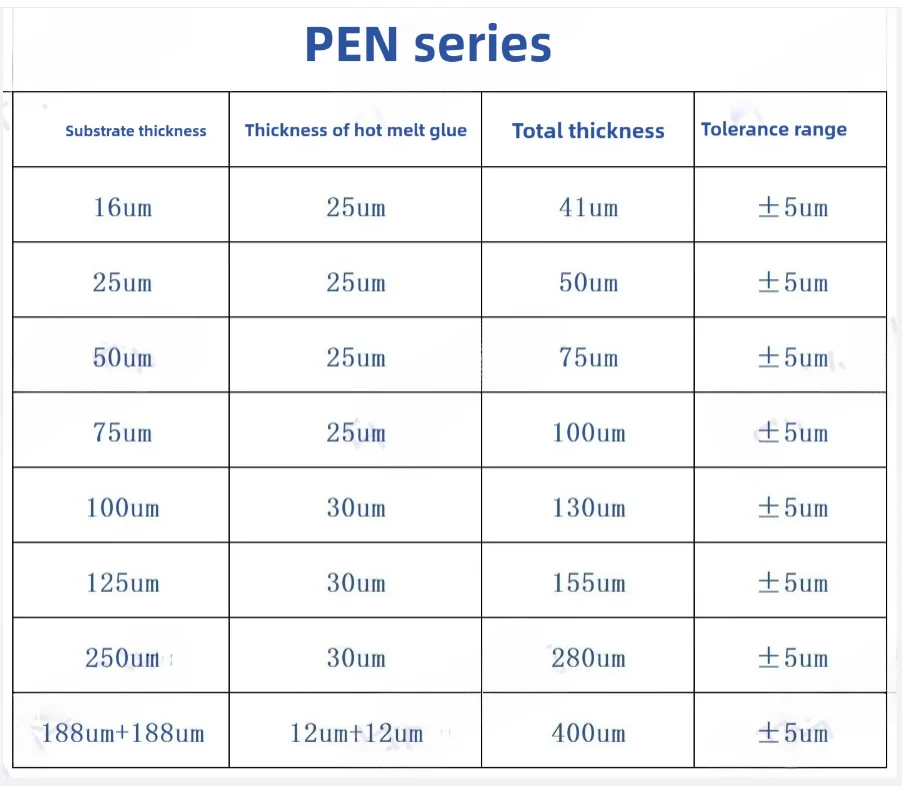

Type 6：PEN Base Membrane: 16μm + 25μm Coating (20 sheets)
Type 7：PEN Base Membrane: 25μm + 25μm Coating (20 pieces)
Type 8：PEN Base Membrane: 50μm + 25μm Coating (20 pieces)
Type 9：PEN Base Membrane: 75μm + 25μm Coating (20 sheets)
Type 10：PEN Base Membrane: 100μm + 30μm Coating (20 sheets)
Type 11：PEN Base Membrane: 125μm + 30μm Coating (20 sheets)
Type 12：PEN Base Membrane: 250μm + 30μm Coating (20 pieces)
Type 13：Composite Membrane: 400μm Total Thickness (10 pieces)
Type 14：PEN Membrane: 125μm + 30μm (40 pieces)

Note: Default size: 8×8 cm. For custom size requirements, please contact our customer service.

Edge Sealing Film for Fuel Cell / Water Electrolysis

Sealing Film, Frame Film (PEN/PPS Adhesive Film)

This frame film features advantages such as high temperature resistance, high pressure resistance, boiling water resistance, oxidation resistance, tear resistance, high strength, strong adhesion, easy processing, good airtightness, and excellent encapsulation effect. It is specially used for edge sealing and sealing of fuel cell water electrolysis.
