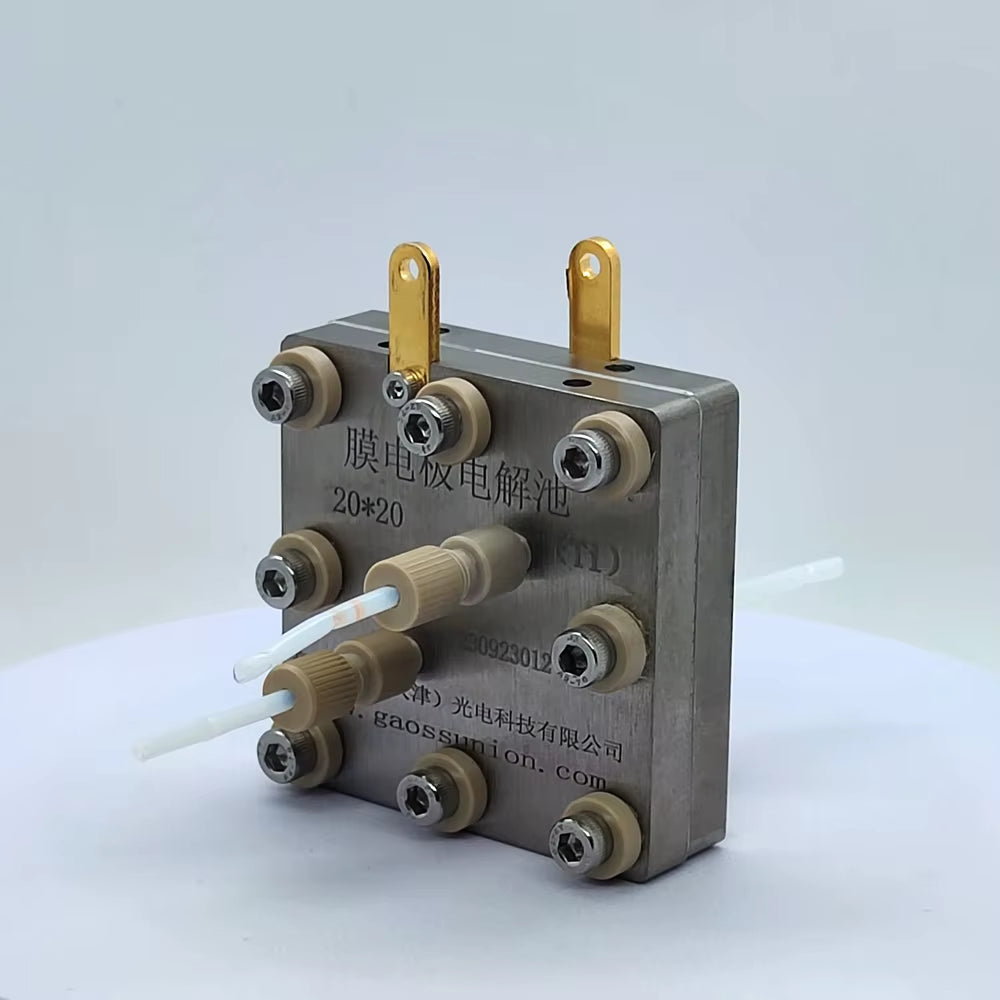

Bipolar Plate Membrane Electrode Electrolytic Cell（Pem;Aem）

Highly versatile membrane electrode electrolyzer cell, applicable for electrochemical carbon dioxide reduction, water electrolysis, flow electro-synthesis, fuel cell testing, and other fields.

1. The electrolyzer is made of high-purity titanium plates, offering strong corrosion resistance.

2. The titanium plate has heating holes, allowing the insertion of heating rods and thermocouples for convenient temperature control and measurement.

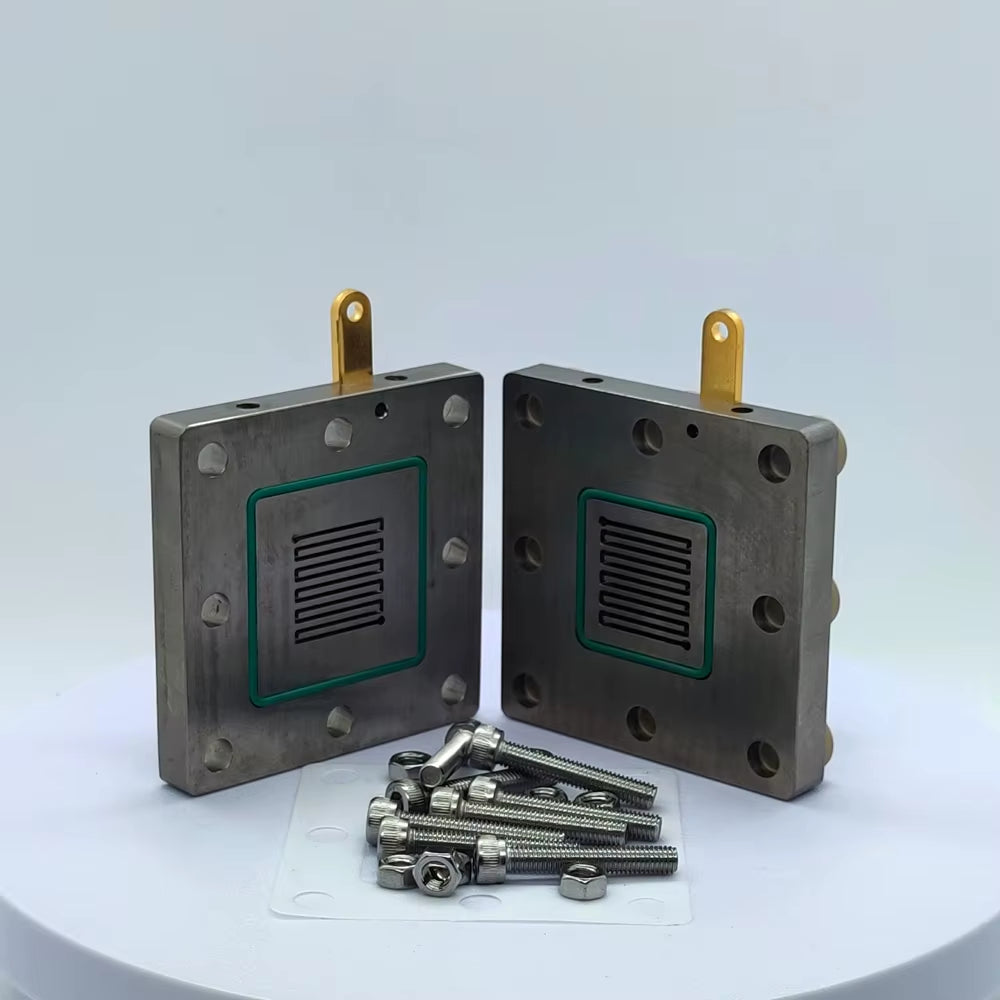

3. The standard flow channel is a serpentine channel; it can be customized to planar, leaf-vein, comb-shaped channels, etc.

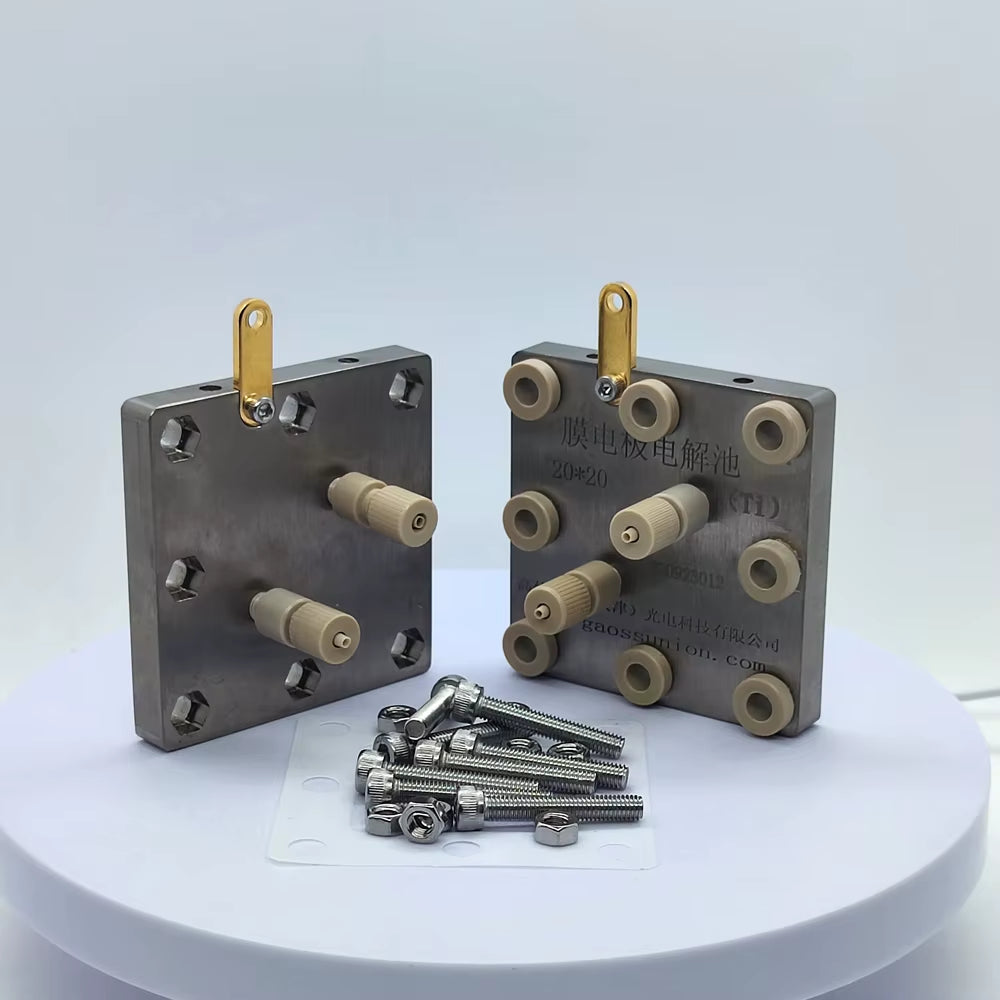

4. The inlet and outlet can connect to 1/8 inch PTFE tubing.

5. For alkaline water electrolysis studies, the anode plate can be made of nickel.6. We can customize according to drawings.
