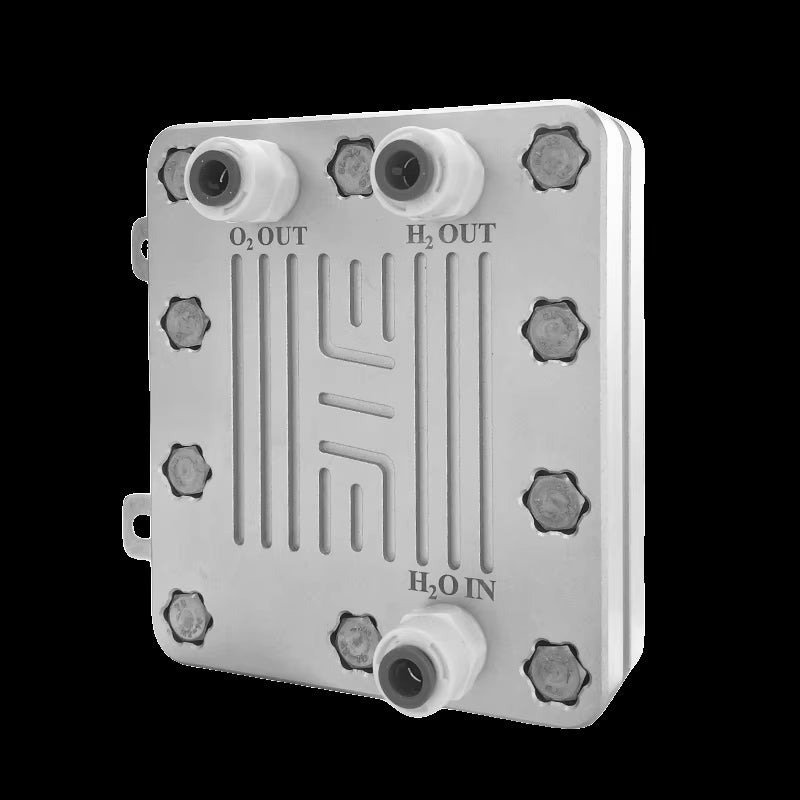

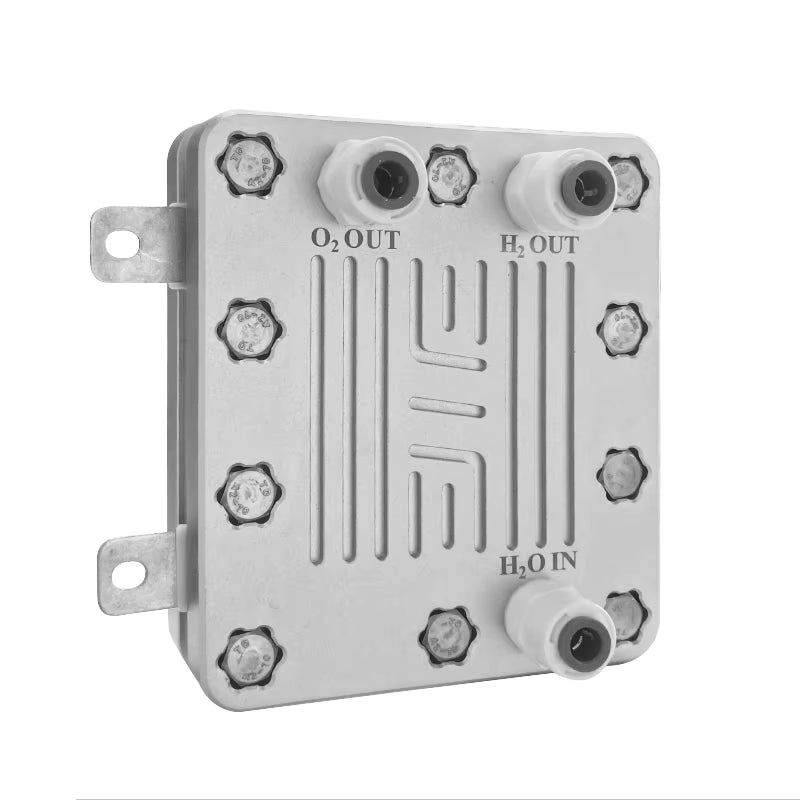

150Ml 300Ml Customized Hydrogen Production Generator PEM Electrolyzer
600Ml/Min
₩402,367
제품 정보로 건너뛰기
Electrolyzer H2 outlet

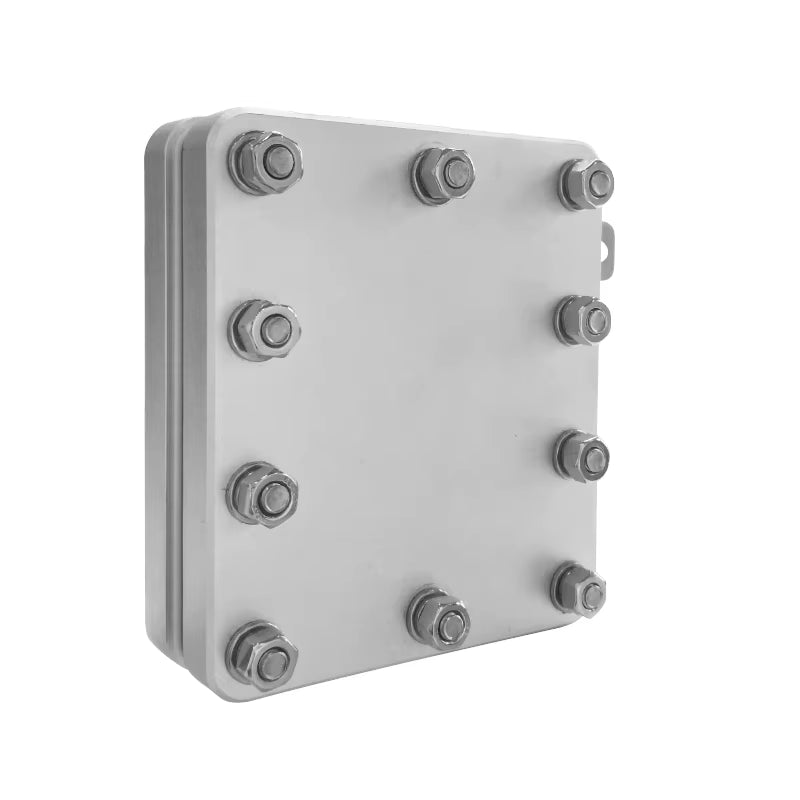

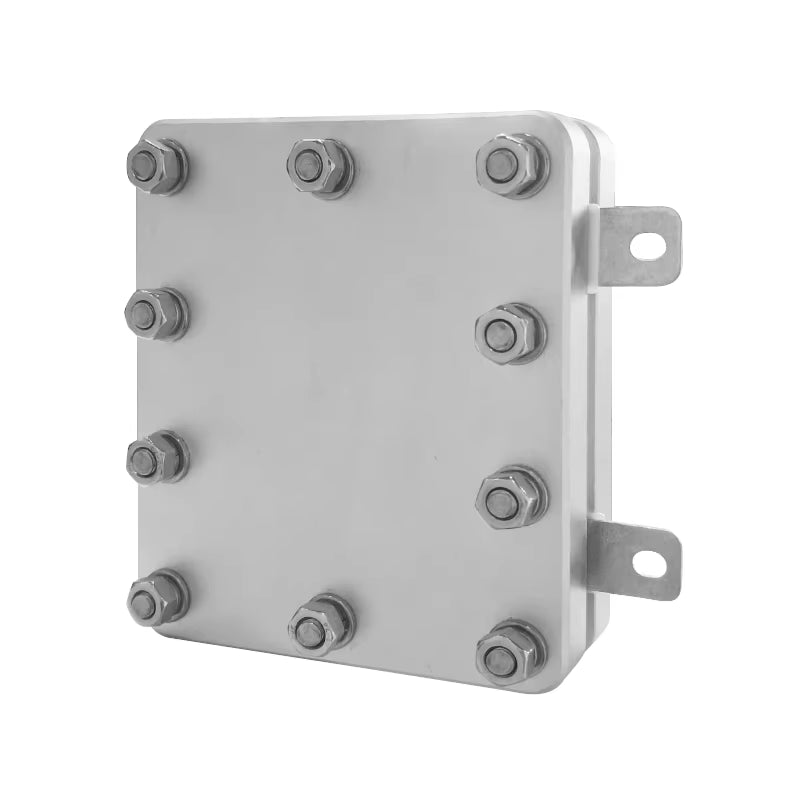

Plate and frame
Electrolyzer proton membrane
150Ml 300Ml Customized Hydrogen Production Generator PEM Electrolyzer
₩402,367
Product Model:HY-PEM150ml | ||||
Unit |
Parameter |
Remarks |
||
Hydrogen Production Rate |
ml/min |
150 |
Error range ±3% |
|
Oxygen Production Rate |
ml/min |
75 |
Error range ±3% |
|
Water Consumption |
ml/h |
≤18 |
Water from the hydrogen outlet and oxygen outlet both return to the water tank |
|
Circulation Mode |
/ |
Gravity Circulation |
The vertical distance between the water tank outlet and the electrolyzer inlet should be ≥15 cm |
|
Electrolysis Mode |
/ |
Pure Water Electrolysis |
No need to add alkaline solution, safe and reliable, easy to maintain |
|
Recommended Operating Pressure |
MPa |
0.1~1.3 |
/ |
|
Water Source Requirement (TDS) |
ppm |
≤5 |
Can use pure water, double - distilled water, deionized water |
|
Power Supply Require |
Rated Current |
A |
20 |
Constant current power supply |
Output Voltage |
V |
2.5 |
/ |
|
Dimensions (Length * Width * Depth) |
mm |
≤99*113*31 |
Does not include the terminal board and connectors |
|
Net Weight |
kg |
0.97~1.03 |
/ |
|
Other Matters |
Electrolyzer inlet, hydrogen and oxygen outlet pipe size: 2 - branch pipe |
|||
Application Fields |
Hydrogen generators, hydrogen gas generators, hydrogen - rich water machines, hydrogen health machines,hydrogen bath equipment, beauty instruments |
In the shift to new energy, hydrogen is becoming important. It’s clean and good for energy. PEM electrolysis makes hydrogen and is a promising way. The electrolyzer (a key part) matters a lot. The “sealing materials” inside it are super important too. Let’s learn about these materials in PEM electrolyzers

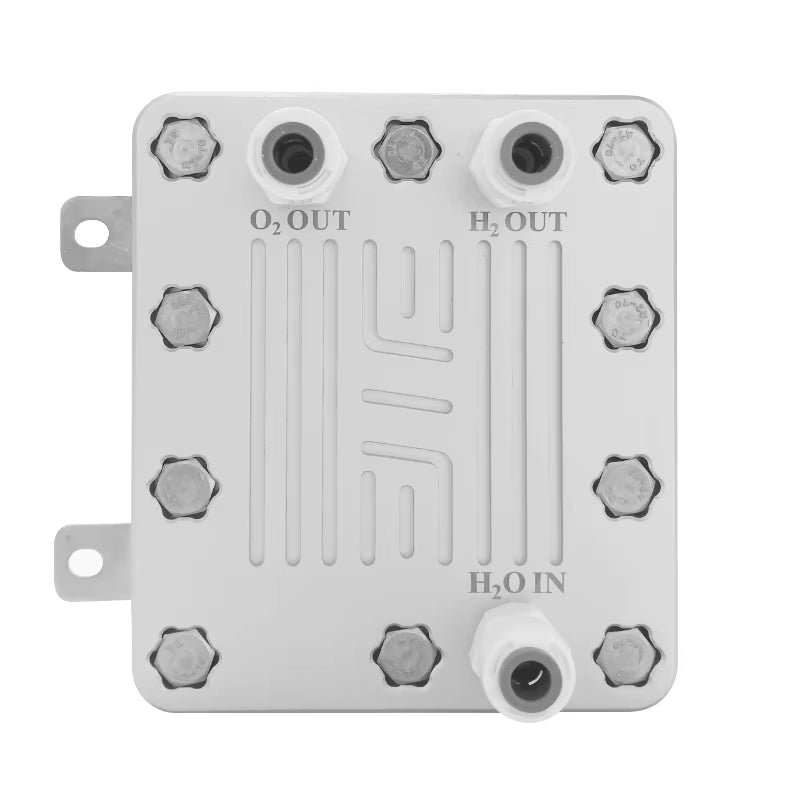

H2 OUT port on the electrolyzer functions as the outlet for hydrogen gas generated during water electrolysis.It enables the controlled discharge of produced hydrogen, supporting subsequent collection, storage, or application of the gas.
The frame provides sealing via lines (e.g., serrated zones) and overlapping areas for diaphragms and gaskets, preventing electrolyte leakage, separating cathode-anode hydrogen and oxygen, and ensuring safe, efficient electrolyzer operation.
Proton exchange membrane, also known as electrolyte membrane, plays a crucial role in hydrogen ion transport, oxidant isolation,
and electron blocking.
spare parts：
TDS probe
water tank (1.5L)
liquid level probe
imported resin filter cartridge
circulating water pump
positive and negative pole power lines
